Dell PowerEdge R650XS RD8NP User Manual

Steps
1. Locate the MicroSD card slot on the IDSDM module. Orient the MicroSD card appropriately and insert the contact-pin end of
the card into the slot. To locate IDSDM, see the System board jumpers and connectors section.
NOTE: The slot is keyed to ensure correct insertion of the card.
2. Press the card into the slot to lock it into place.

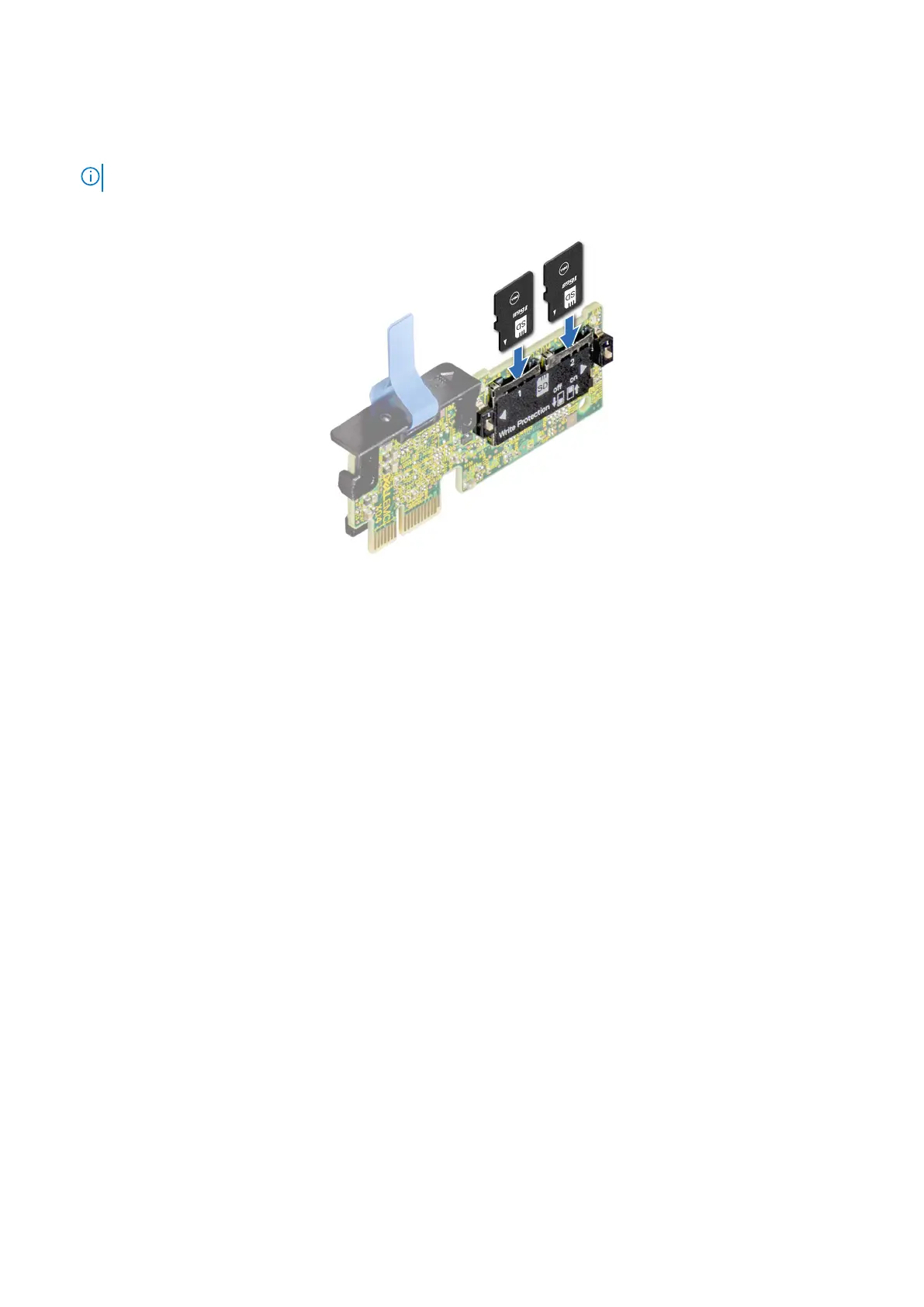

Figure 100. Installing the MicroSD card
Next steps
1. Install the IDSDM module.
2. Install the air shroud.
3. Follow the procedure listed in the After working inside your system.
Optional BOSS S1 card
Removing the M.2 BOSS riser
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
Hold the blue touch points, and lift the M.2 BOSS riser from the riser connector on the system board.
Installing and removing system components
99

Dell PowerEdge R650XS RD8NP Specifications

General

Brand	Dell
Model	PowerEdge R650XS RD8NP
Category	Server
Language	English
