Dell Precision Mobile Workstation M6700 User Manual

Removing the Primary Hard Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover

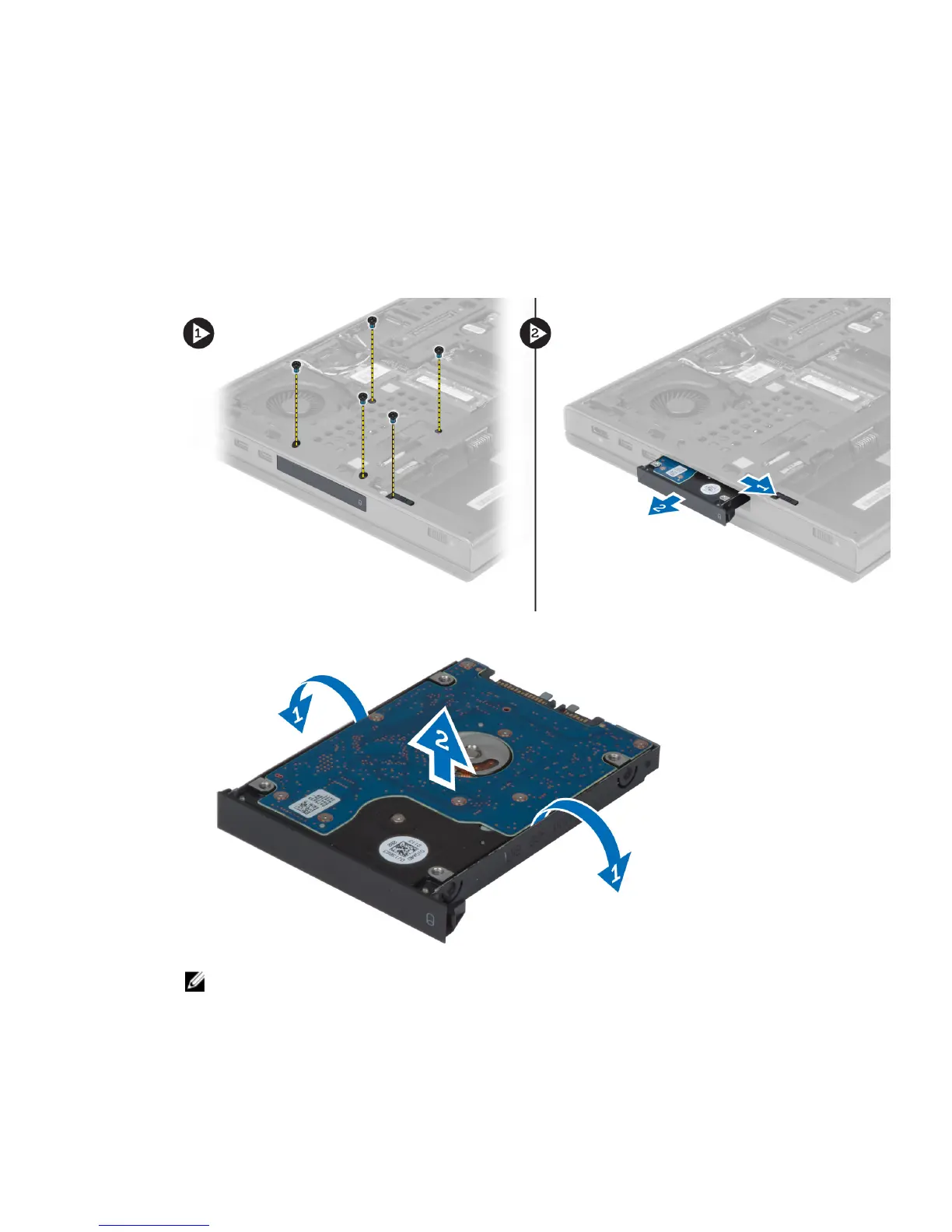

3. Remove the screws that secure the primary hard drive to the computer. Slide the primary hard -drive latch to the
unlock position and pull out the hard drive from the computer.
4. Flex the hard-drive bracket outward and pull out the hard drive from the bracket.
NOTE: A rubber filler is installed to the hard-drive bracket for 7 mm hard drives. It is designed to prevent
vibrations and for correct installation of the 7 mm hard drives. 9 mm hard drives do not require the filler when
installed into the hard-drive bracket.
18

Dell Precision Mobile Workstation M6700 Specifications

General

Display	17.3-inch
Processor	Intel Core i5, i7
Graphics	NVIDIA Quadro K3000M or NVIDIA Quadro K4000M or NVIDIA Quadro K5000M or AMD FirePro M6000
Resolution	1920x1080
Memory	Up to 32GB
Storage	Up to 750GB HDD, SSD
Optical Drive	DVD-ROM, DVD+/-RW, Blu-ray
Operating System	Windows 7 or Windows 8
Battery	9-cell (97Wh)
Ports	USB 3.0, HDMI, DisplayPort, VGA, eSATA
Wireless	Wi-Fi 802.11 a/b/g/n, Bluetooth
Audio	Integrated speakers, microphone
Camera	2MP webcam
