Dell Precision Mobile Workstation M6700 User Manual

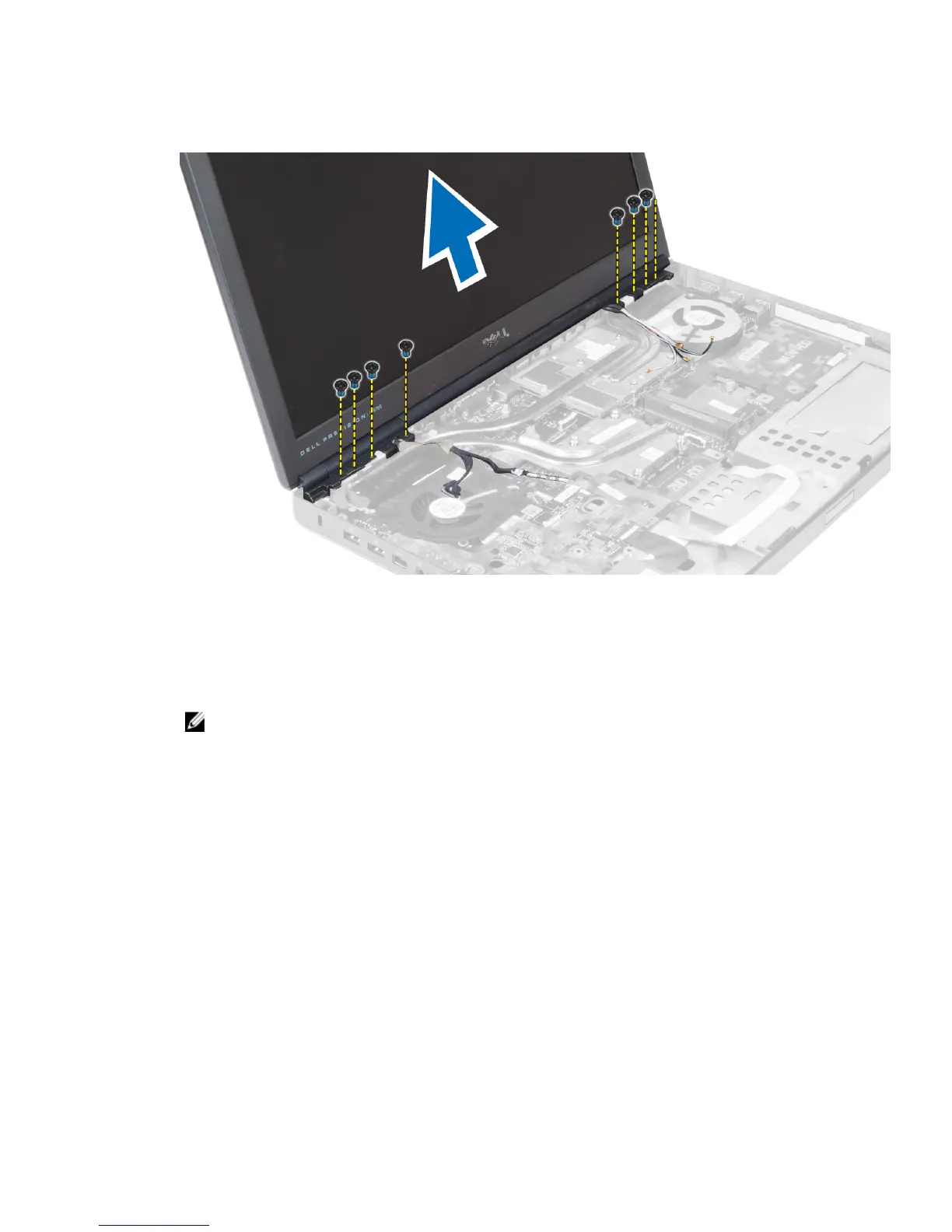

7. Remove the screws that secure the display assembly to the computer. Remove the display assembly from the
computer.
Installing the Display Assembly
1. Tighten the screws to secure the display assembly in place.
2. Connect the camera and LVDS cables to the correct connectors on the system board.
3. Place the LVDS cable bracket on the computer and tighten the screws to secure it to the computer.
NOTE: LVDS cable is available in M4700 without the bracket. LVDS cable bracket is available only in M6700.
4. Route the cables through the routing channels.
5. Insert the wireless antenna cables through the routing hole on the chassis.
6. Tighten the screws at the bottom and back of the computer.
7. Route and connect the antenna cables to their connectors.
8. Install the:
a) palmrest
b) primary and secondary hard drive
c) optical drive
d) keyboard
e) keyboard trim
f) base cover
g) battery
9. Follow the procedures in After Working Inside Your Computer .
53

Dell Precision Mobile Workstation M6700 Specifications

General

Display	17.3-inch
Processor	Intel Core i5, i7
Graphics	NVIDIA Quadro K3000M or NVIDIA Quadro K4000M or NVIDIA Quadro K5000M or AMD FirePro M6000
Resolution	1920x1080
Memory	Up to 32GB
Storage	Up to 750GB HDD, SSD
Optical Drive	DVD-ROM, DVD+/-RW, Blu-ray
Operating System	Windows 7 or Windows 8
Battery	9-cell (97Wh)
Ports	USB 3.0, HDMI, DisplayPort, VGA, eSATA
Wireless	Wi-Fi 802.11 a/b/g/n, Bluetooth
Audio	Integrated speakers, microphone
Camera	2MP webcam
