Dell Precision Mobile Workstation M6700 User Manual

Installing the ExpressCard Module
1. Insert the ExpressCard module into its compartment.
2. Tighten the screws to secure the ExpressCard module to the computer
3. Connect the:
a) ExpressCard cable to the system board
b) the USH board cable to the USH board (for M4700 only)
4. Install the:
a) palm rest
b) primary and secondary hard drive
c) optical drive
d) keyboard
e) keyboard trim
f) base cover
g) battery
h) ExpressCard
5. Follow the procedures in After Working Inside Your Computer .
Removing the Heat Sink
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) primary and secondary hard drive
g) palm rest
h) processor fan

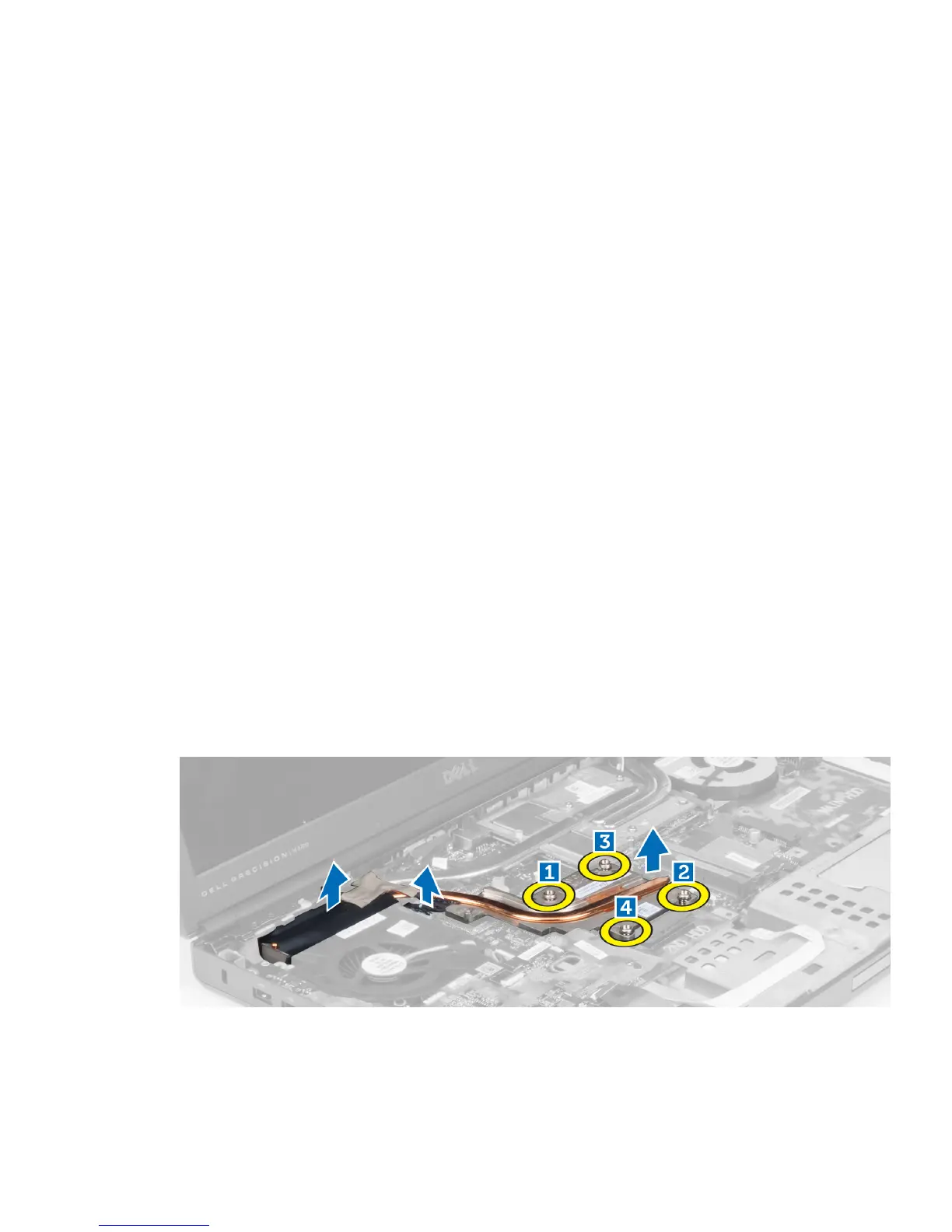

3. Disconnect the camera cable and loosen the captive screws that secure the heat sink to the computer.
43
