Dell Precision Mobile Workstation M6700 User Manual

Installing the Power Connector Port
1. Insert the power-connector port in its slot and connect the power-connector cable to the system board.
2. Install the:
a) display assembly
b) I/O board
c) palmrest
d) primary and secondary hard drive
e) optical drive
f) keyboard
g) keyboard trim
h) base cover
i) battery
3. Follow the procedures in After Working Inside Your Computer .
Removing the Switch Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) primary and secondary hard drive
g) palmrest

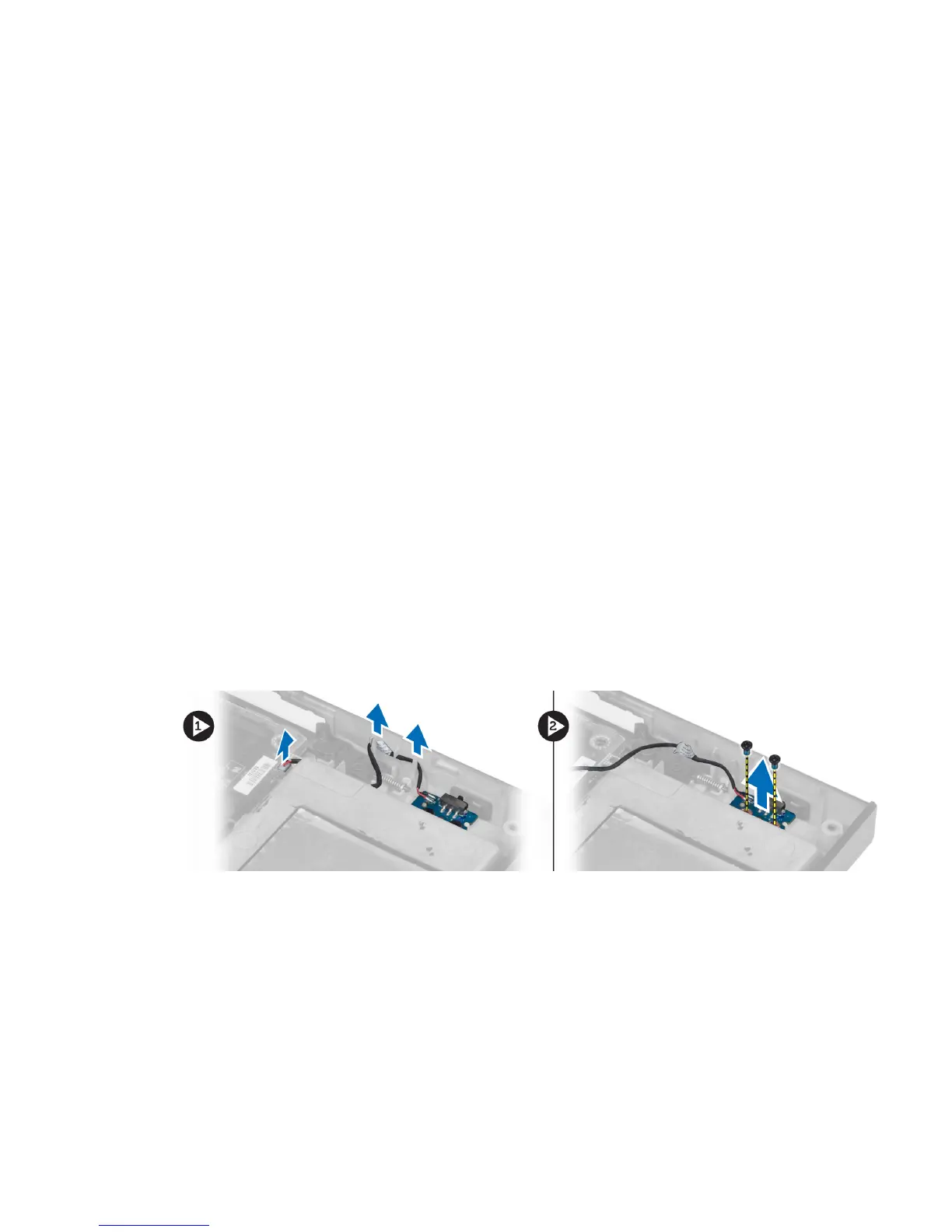

3. Disconnect the switch-board cable from the system board and remove it from the latches. Remove the screws that
secure the switch board to the computer and remove it from the computer.
Installing the Switch Board
1. Align the switch board to its original position on the computer.
2. Tighten the screws to secure the switch board to the computer.
3. Connect the switch-board cable to the system board and secure it through the routing channel.
61

Dell Precision Mobile Workstation M6700 Specifications

General

Display	17.3-inch
Processor	Intel Core i5, i7
Graphics	NVIDIA Quadro K3000M or NVIDIA Quadro K4000M or NVIDIA Quadro K5000M or AMD FirePro M6000
Resolution	1920x1080
Memory	Up to 32GB
Storage	Up to 750GB HDD, SSD
Optical Drive	DVD-ROM, DVD+/-RW, Blu-ray
Operating System	Windows 7 or Windows 8
Battery	9-cell (97Wh)
Ports	USB 3.0, HDMI, DisplayPort, VGA, eSATA
Wireless	Wi-Fi 802.11 a/b/g/n, Bluetooth
Audio	Integrated speakers, microphone
Camera	2MP webcam
