Dell Precision Mobile Workstation M6700 User Manual

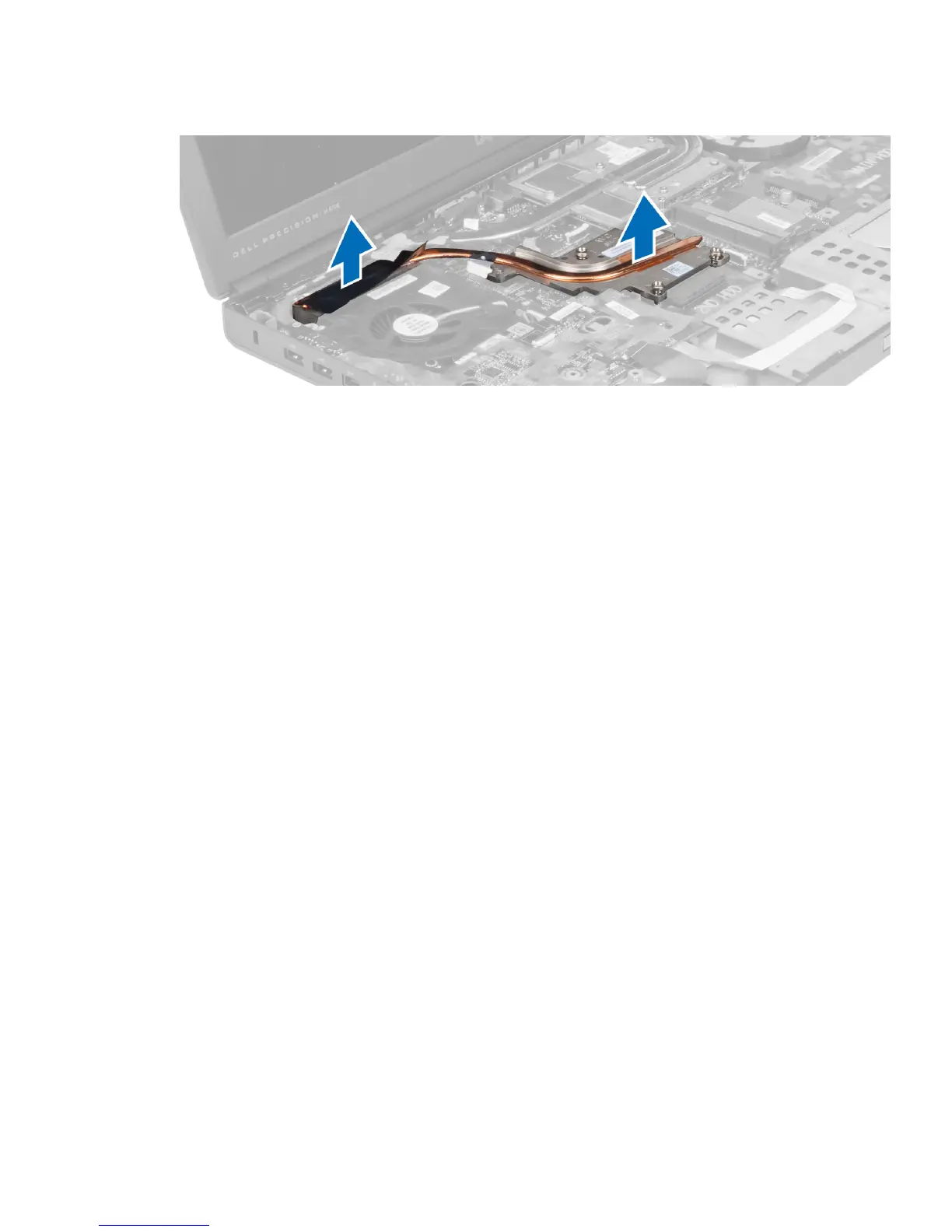

4. Remove the heat sink from the computer.
Installing the Heat Sink
1. Replace the heat sink in its slot.
2. Tighten the captive screws to secure the heat sink to the computer.
3. Connect the camera cable to the system board.
4. Install the:
a) processor fan
b) palm rest
c) primary and secondary hard drive
d) optical drive
e) keyboard
f) keyboard trim
g) base cover
h) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Processor
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) primary and secondary hard drive
g) palm rest
h) processor fan
i) heat sink
44

Dell Precision Mobile Workstation M6700 Specifications

General

Display	17.3-inch
Processor	Intel Core i5, i7
Graphics	NVIDIA Quadro K3000M or NVIDIA Quadro K4000M or NVIDIA Quadro K5000M or AMD FirePro M6000
Resolution	1920x1080
Memory	Up to 32GB
Storage	Up to 750GB HDD, SSD
Optical Drive	DVD-ROM, DVD+/-RW, Blu-ray
Operating System	Windows 7 or Windows 8
Battery	9-cell (97Wh)
Ports	USB 3.0, HDMI, DisplayPort, VGA, eSATA
Wireless	Wi-Fi 802.11 a/b/g/n, Bluetooth
Audio	Integrated speakers, microphone
Camera	2MP webcam
