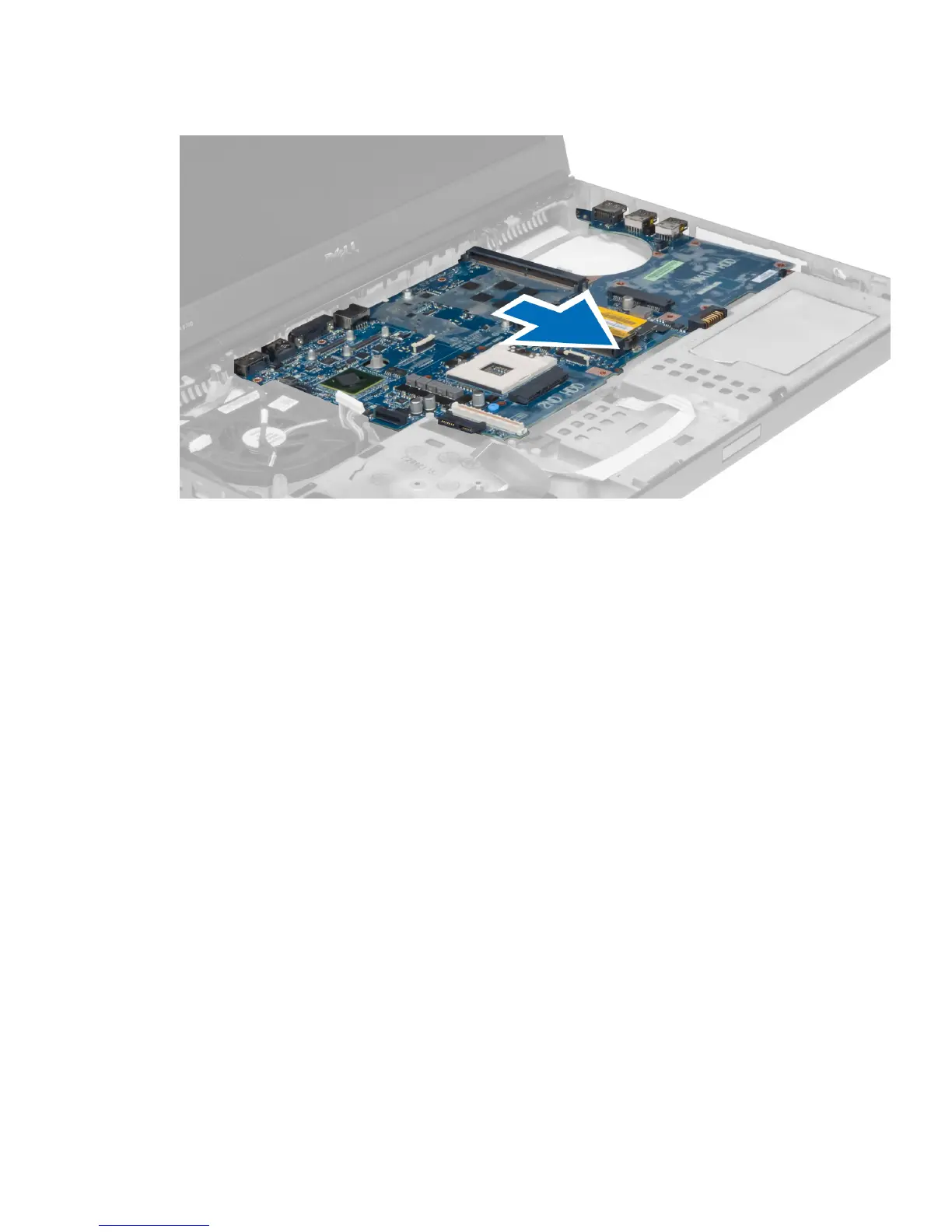

9. Remove the system board from the computer.
Installing the System Board
1. Align the system board into its original position on the computer.
2. Tighten the screws to secure the system board to the computer.
3. Connect the following cables:
a) switch board
b) power connector
c) LVDS
d) camera
e) coin-cell battery
f) processor fan
4. Install all the mini-cards (if available).
5. Place the LVDS cable bracket in its original position on the computer and tighten the screws to secure it to the
computer.
