Dell Precision Mobile Workstation M6700 User Manual

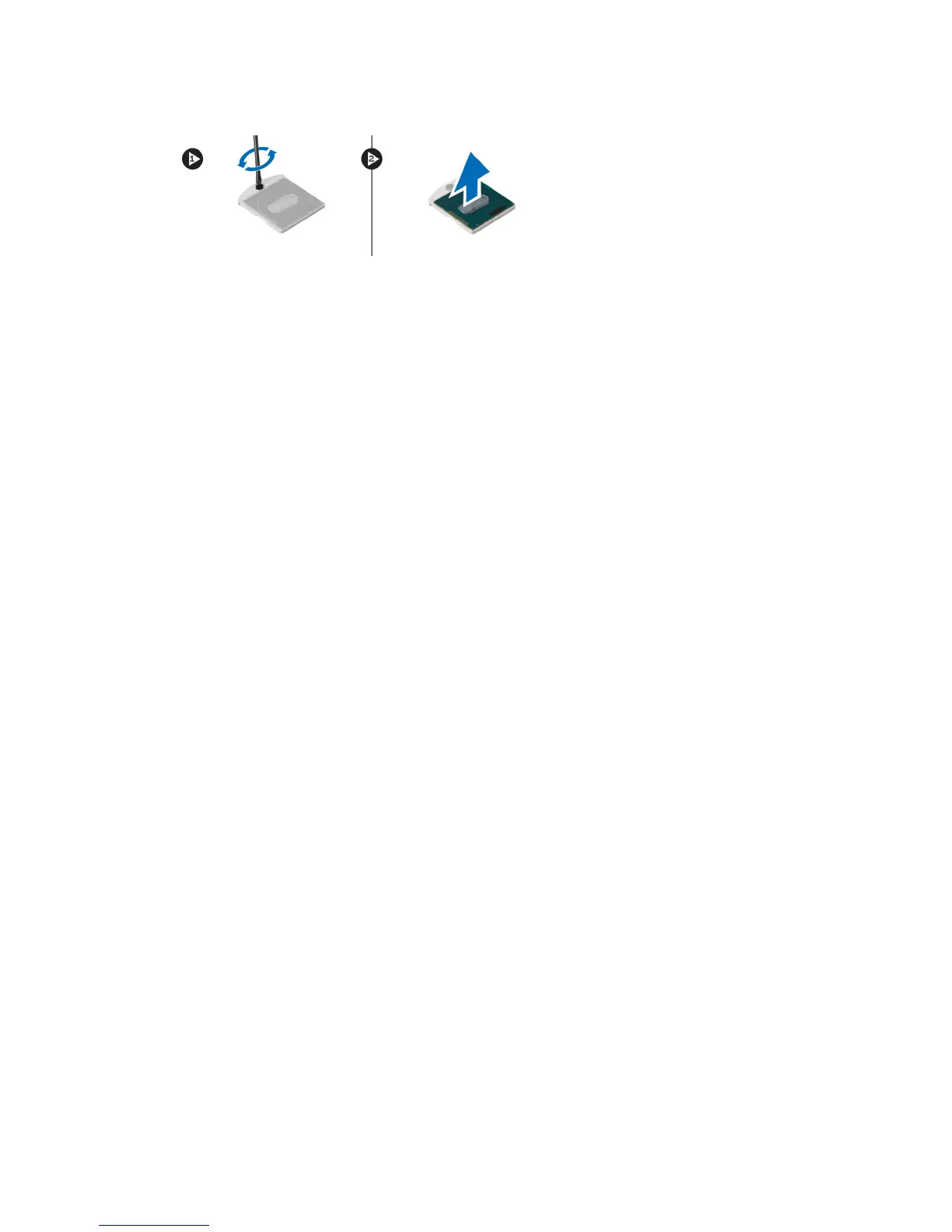

3. Rotate the processor cam lock in a counter-clockwise direction. Remove the processor from the computer.
Installing the Processor
1. Align the notches on the processor and the socket, and insert the processor into the socket.
2. Rotate the processor cam lock in a clockwise direction.
3. Install the:
a) heat sink
b) processor fan
c) palm rest
d) primary and secondary hard drive
e) optical drive
f) keyboard
g) keyboard trim
h) base cover
i) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Video-Card Heatsink
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) bottom door
c) keyboard trim
d) keyboard
e) optical drive
f) primary and secondary hard drive
g) palmrest
h) video-card fan
i) heatsink
45

Dell Precision Mobile Workstation M6700 Specifications

General

Display	17.3-inch
Processor	Intel Core i5, i7
Graphics	NVIDIA Quadro K3000M or NVIDIA Quadro K4000M or NVIDIA Quadro K5000M or AMD FirePro M6000
Resolution	1920x1080
Memory	Up to 32GB
Storage	Up to 750GB HDD, SSD
Optical Drive	DVD-ROM, DVD+/-RW, Blu-ray
Operating System	Windows 7 or Windows 8
Battery	9-cell (97Wh)
Ports	USB 3.0, HDMI, DisplayPort, VGA, eSATA
Wireless	Wi-Fi 802.11 a/b/g/n, Bluetooth
Audio	Integrated speakers, microphone
Camera	2MP webcam
