Dell Precision Mobile Workstation M6700 User Manual

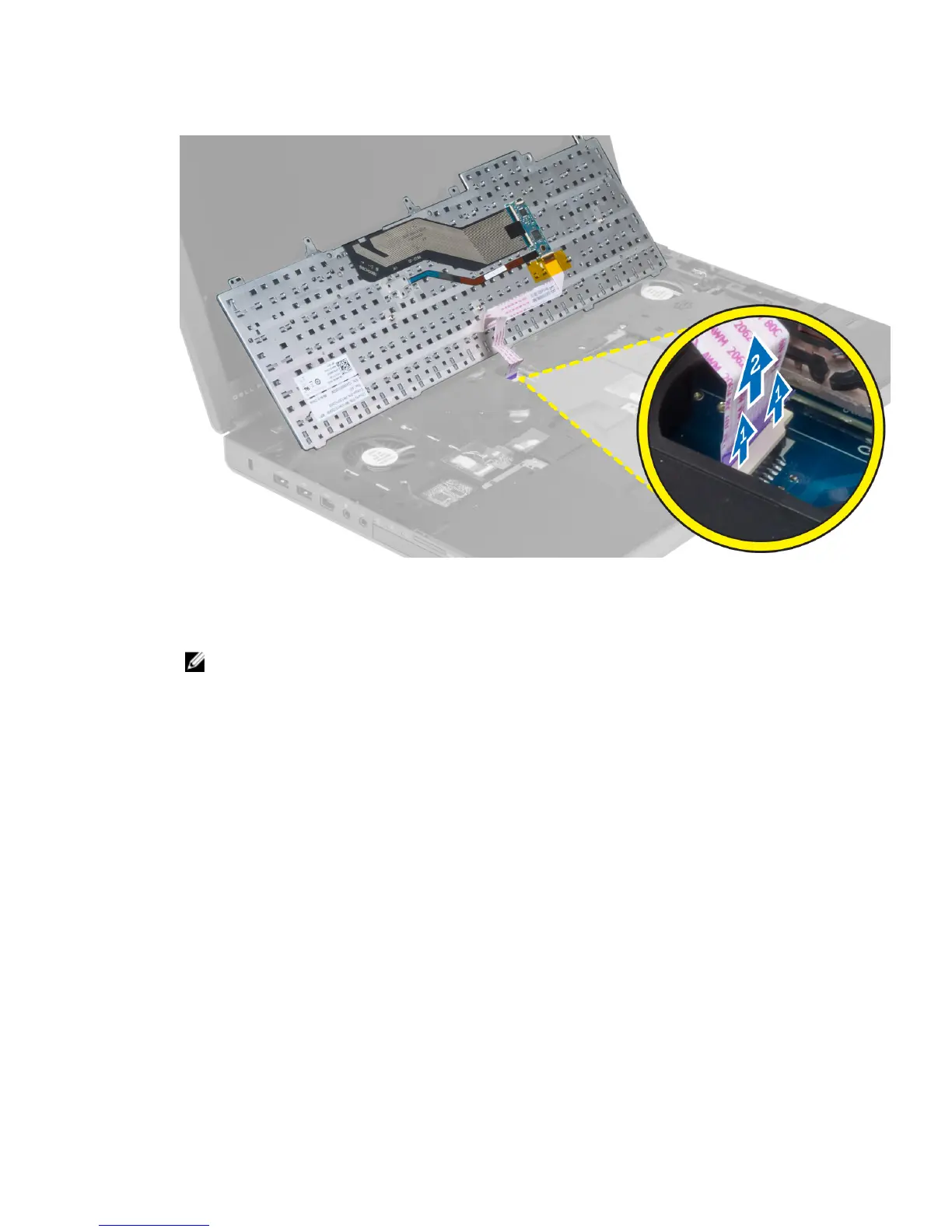

5. Disconnect the keyboard-data cable from the system board and remove the keyboard.
Installing the Keyboard
1. Connect the keyboard-data cable to the system board.
NOTE: Ensure that you fold the keyboard-data cable in perfect alignment.
2. Press the keyboard in its compartment.
3. Tighten the screws to secure the keyboard to the computer.
28

Dell Precision Mobile Workstation M6700 Specifications

General

Display	17.3-inch
Processor	Intel Core i5, i7
Graphics	NVIDIA Quadro K3000M or NVIDIA Quadro K4000M or NVIDIA Quadro K5000M or AMD FirePro M6000
Resolution	1920x1080
Memory	Up to 32GB
Storage	Up to 750GB HDD, SSD
Optical Drive	DVD-ROM, DVD+/-RW, Blu-ray
Operating System	Windows 7 or Windows 8
Battery	9-cell (97Wh)
Ports	USB 3.0, HDMI, DisplayPort, VGA, eSATA
Wireless	Wi-Fi 802.11 a/b/g/n, Bluetooth
Audio	Integrated speakers, microphone
Camera	2MP webcam
