Steps
1. Remove the seven screws (M2x4) that secure the base cover to the palm-rest and keyboard assembly.
2. Loosen the two captive screws that secure the base cover to the palm-rest and keyboard assembly.
3. Using a plastic scribe, pry the base cover from the top left and continue to work on the sides to open the base cover.
4. Lift and slide the base cover off the palm-rest assembly.
5. Peel the tape that secures the battery cable to the battery.
6. Disconnect the battery cable.
Installing the base cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

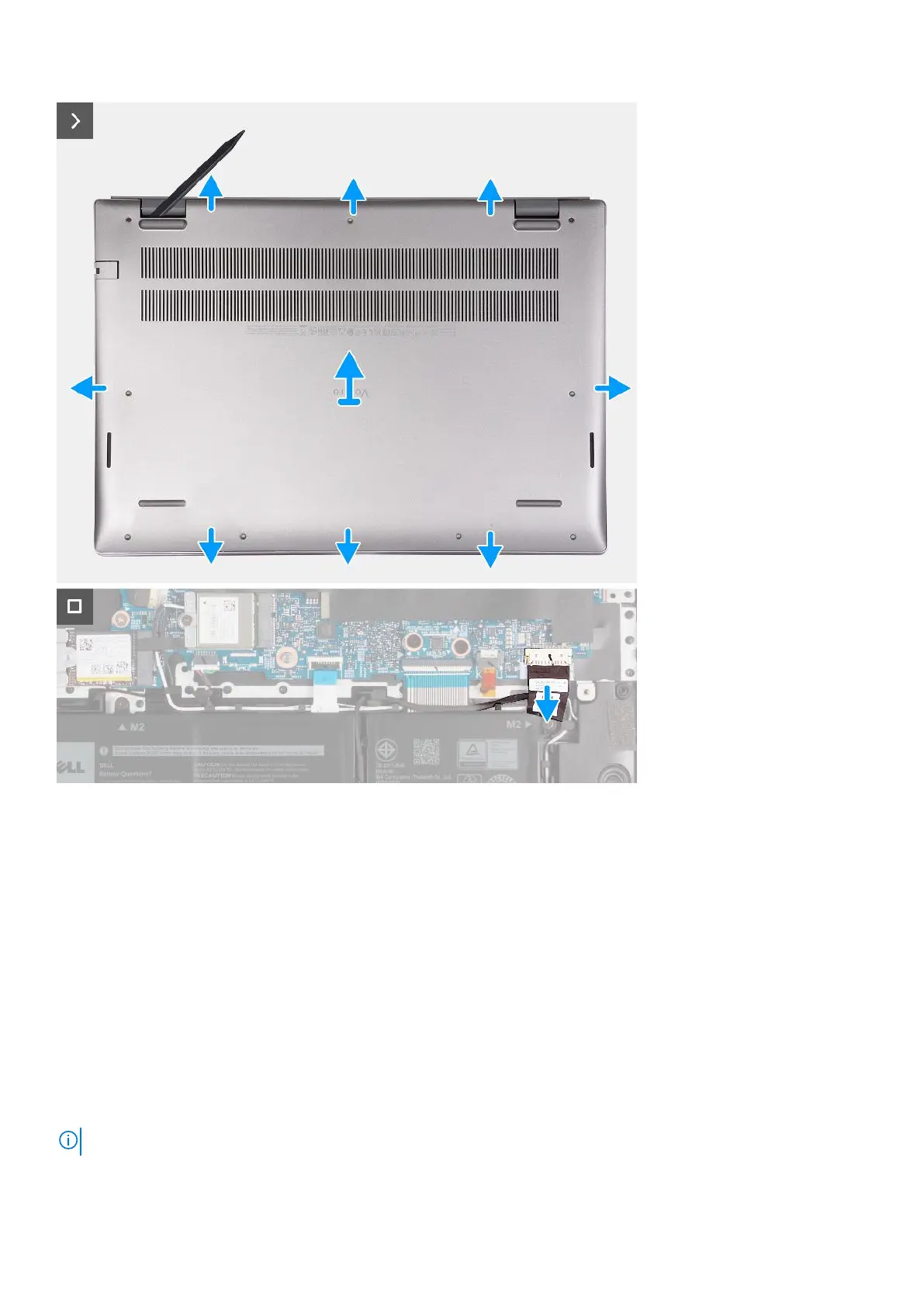

NOTE: The following image(s) shows the base cover and provides a visual representation of the installation procedure.
The following image(s) indicate the location of the base cover and provides a visual representation of the installation procedure.
34
Removing and installing Customer Replaceable Units (CRUs)
To Next Page
