About this task

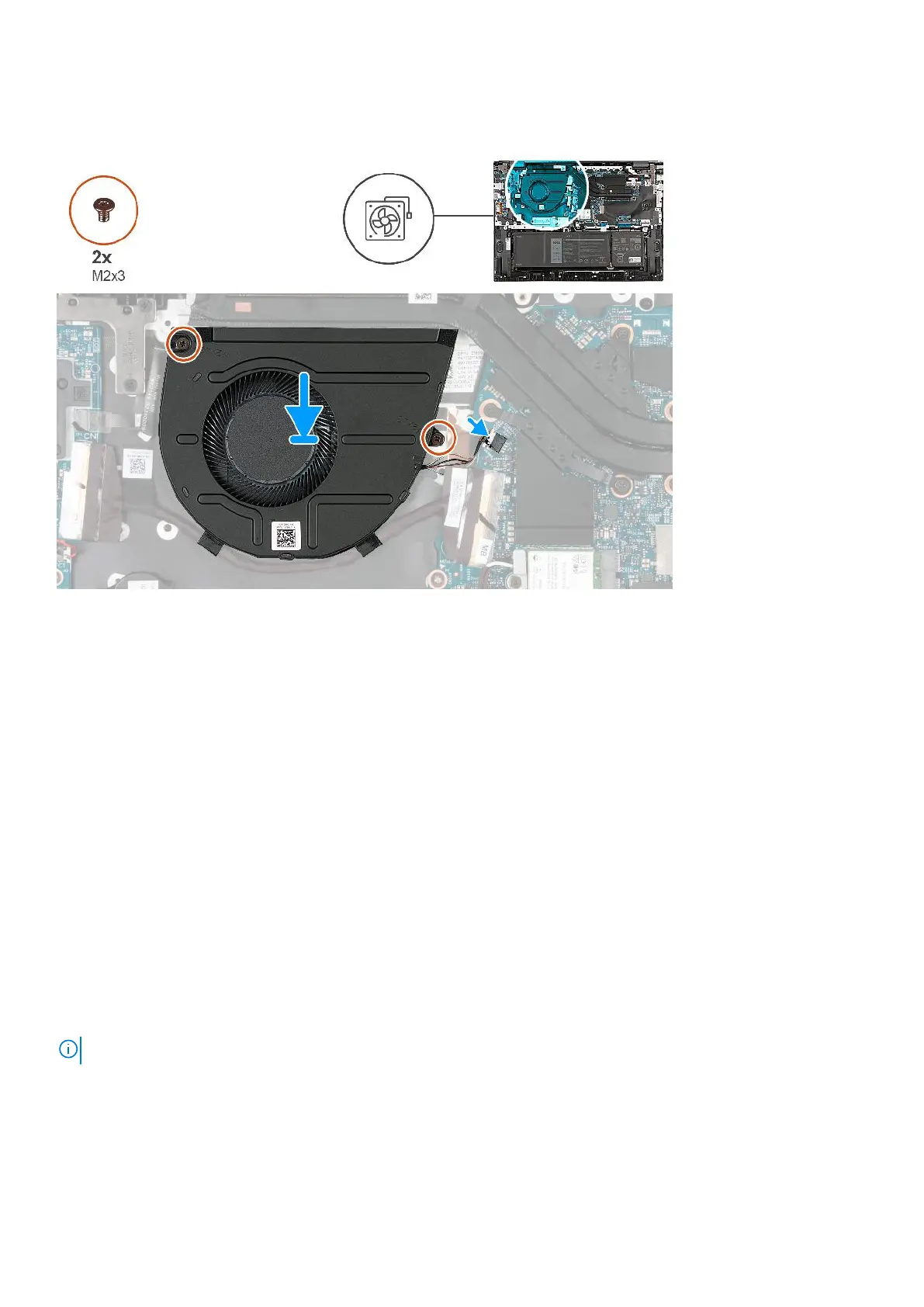

The following image(s) indicate the location of the fan and provides a visual representation of the installation procedure.
Steps
1. Align the screw holes of the fan with the screw holes on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x3) that secure the fan to the palm-rest and keyboard assembly.
3. Connect the fan cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: Before removing the base cover, ensure that there is no SD card installed in the SD card slot on your computer.
The following image(s) indicate the location of the wireless card and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
37
To Next Page
