Power-adapter port
Removing the power-adapter port
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: Before removing the base cover, ensure that there is no SD card installed in the SD card slot on your computer.

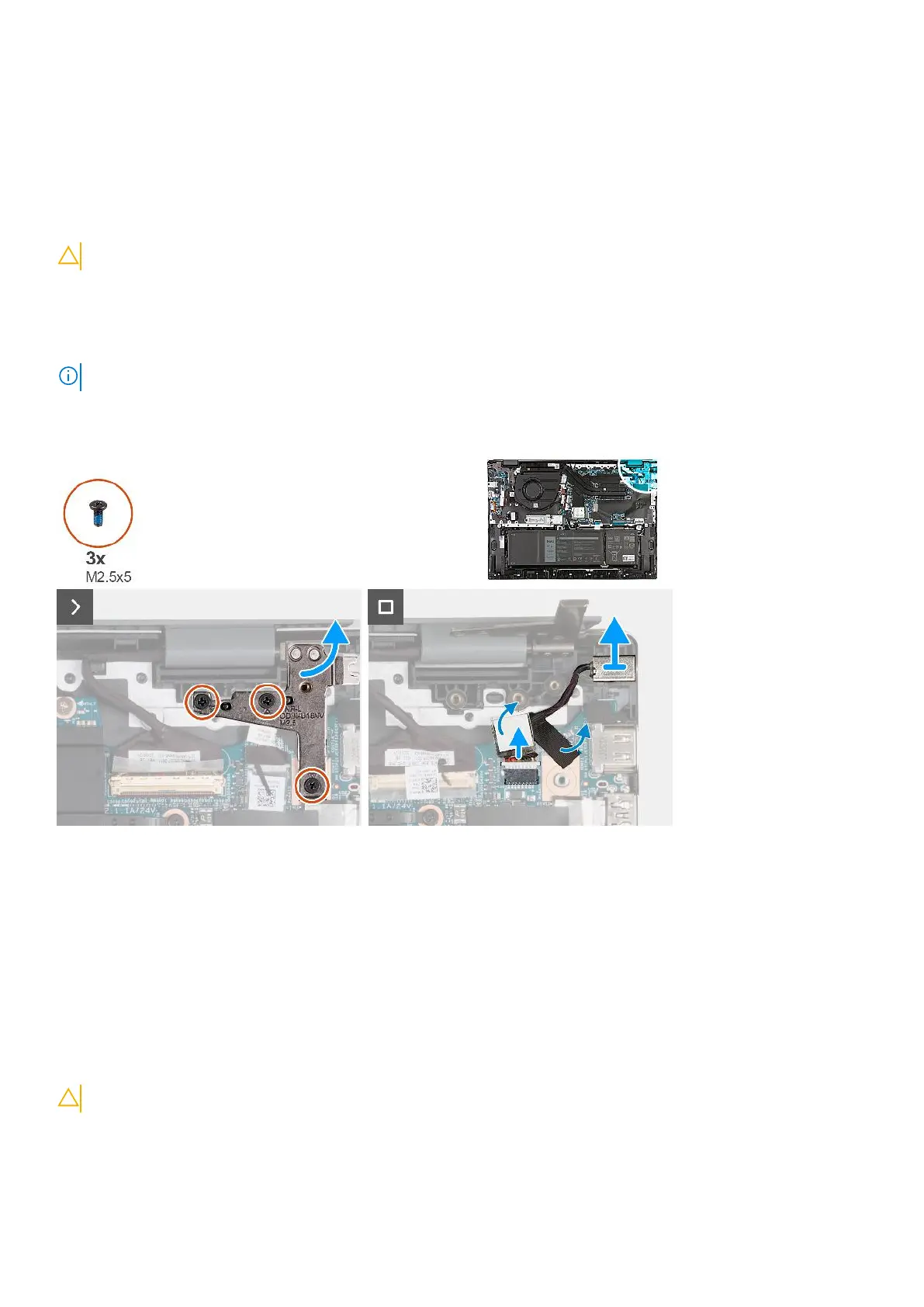

The following image(s) indicate the location of the power-adapter port and provides a visual representation of the removal
procedure.
Steps
1. Remove the three screws (M2.5x5) that secure the right display hinge to the system board.
2. Open the right display hinge at an angle of 90 degrees.
3. Peel the tapes that secure the power-adapter port cable to the system board.
4. Disconnect the power-adapter port cable from the system board.
5. Lift the power-adapter port and its cable off the palm-rest and keyboard assembly.
Installing the power-adapter port
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
If you are replacing a component, remove the existing component before performing the installation process.
Removing and installing Field Replaceable Units (FRUs)
59
