Steps

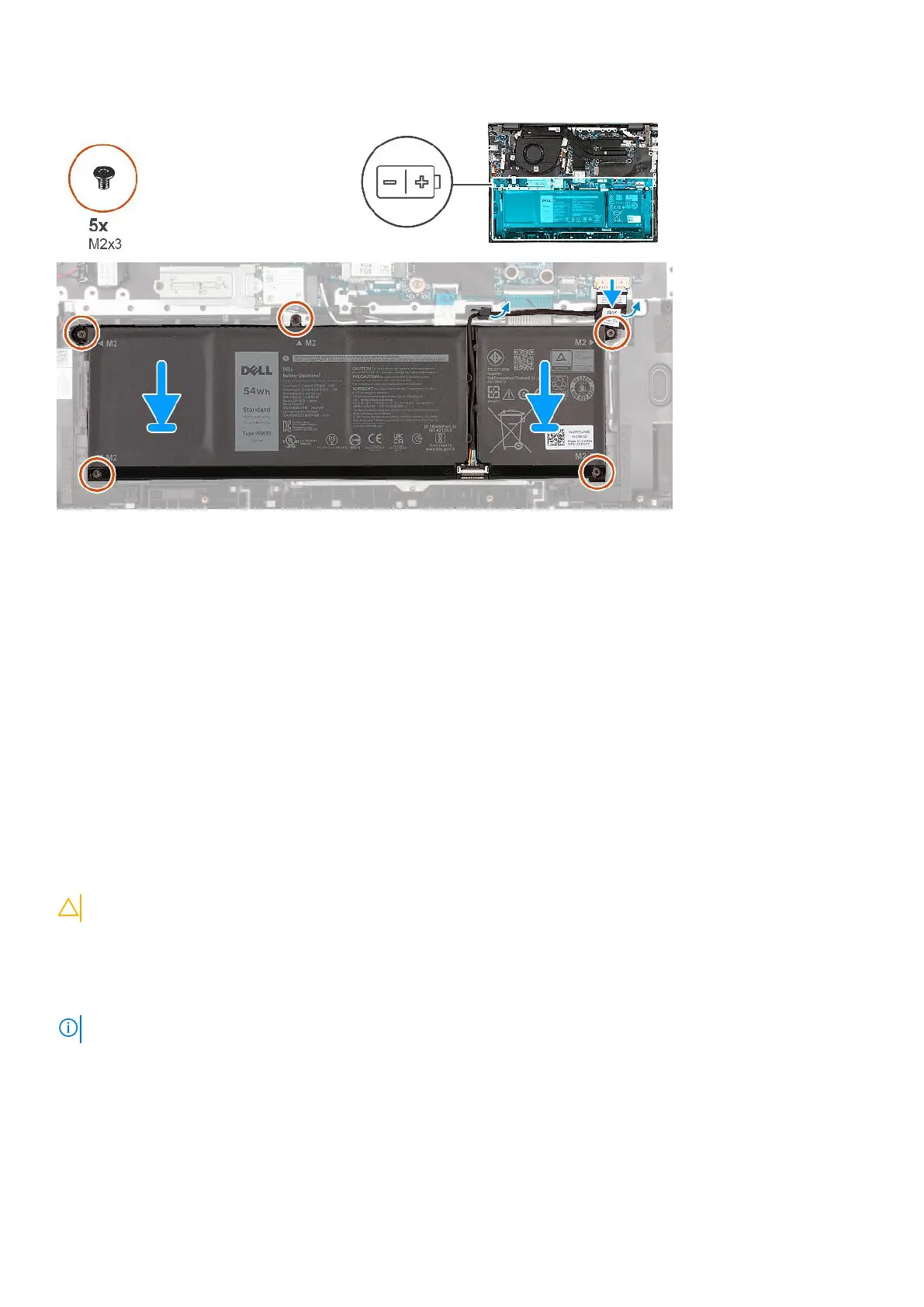

1. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.
2. Replace the five screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
3. Route the battery cable through the tabs and reconnect it to the system board.
4. Adhere the tape that secures the battery cable to the battery.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Heat sink
Removing the heat sink
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: Before removing the base cover, ensure that there is no SD card installed in the SD card slot on your computer.
The following image(s) indicate the location of the heat sink and provides a visual representation of the removal procedure.
46
Removing and installing Field Replaceable Units (FRUs)
