Steps

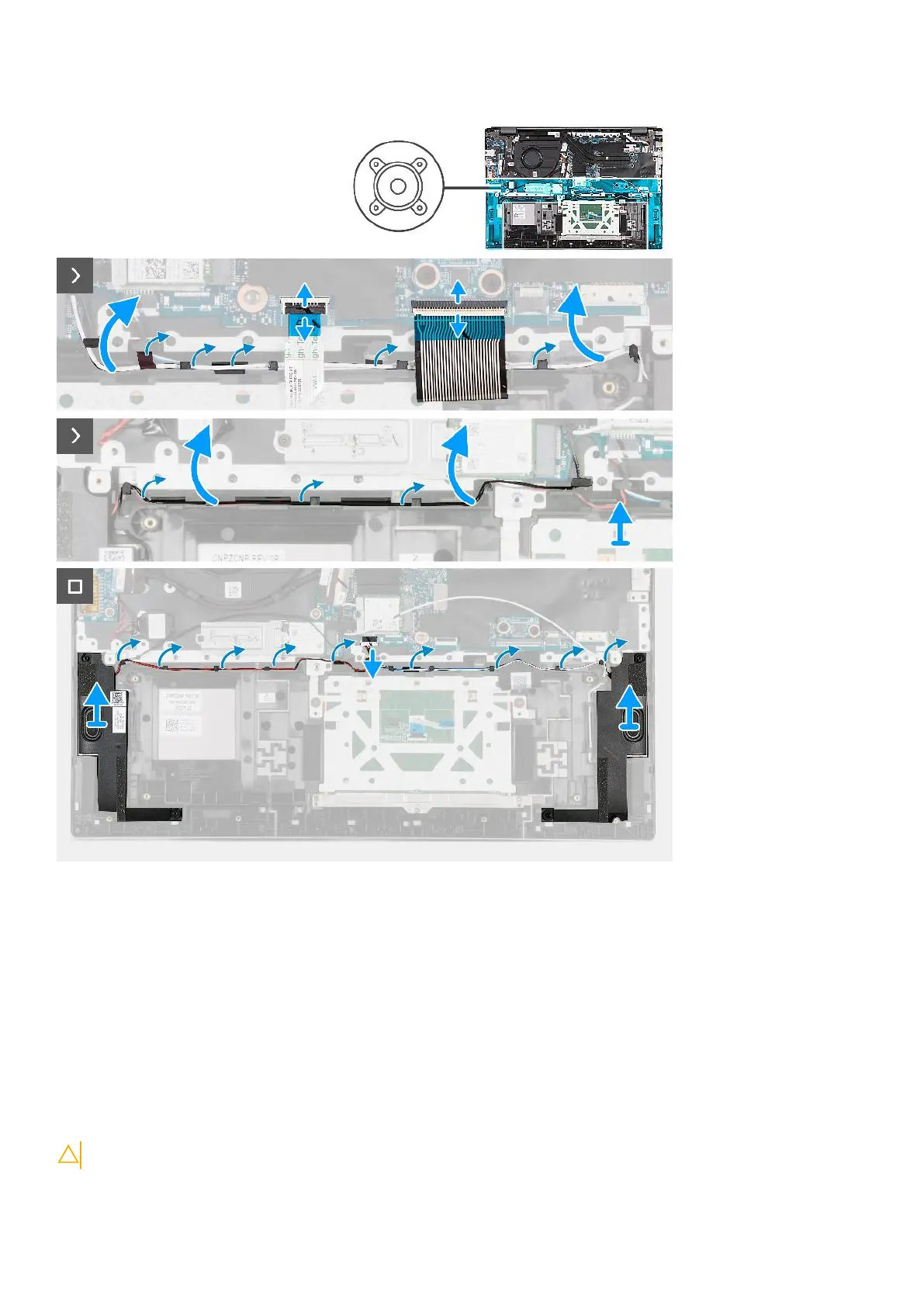

1. Open the latch and disconnect the touchpad cable from the system board.
2. Open the latch and disconnect the keyboard cable from the system board.
3. Peel the tapes that secure the WLAN cable to the system board.
4. Remove the WLAN cable from the routing guides on the palm-rest and keyboard assembly.
5. Remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.
6. Lift the speakers along with their cables off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
Removing and installing Field Replaceable Units (FRUs) 49
