3. Tighten the two captive screws on the base cover.
4. Replace the seven screws (M2x7) that secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: Before removing the base cover, ensure that there is no SD card installed in the SD card slot on your computer.

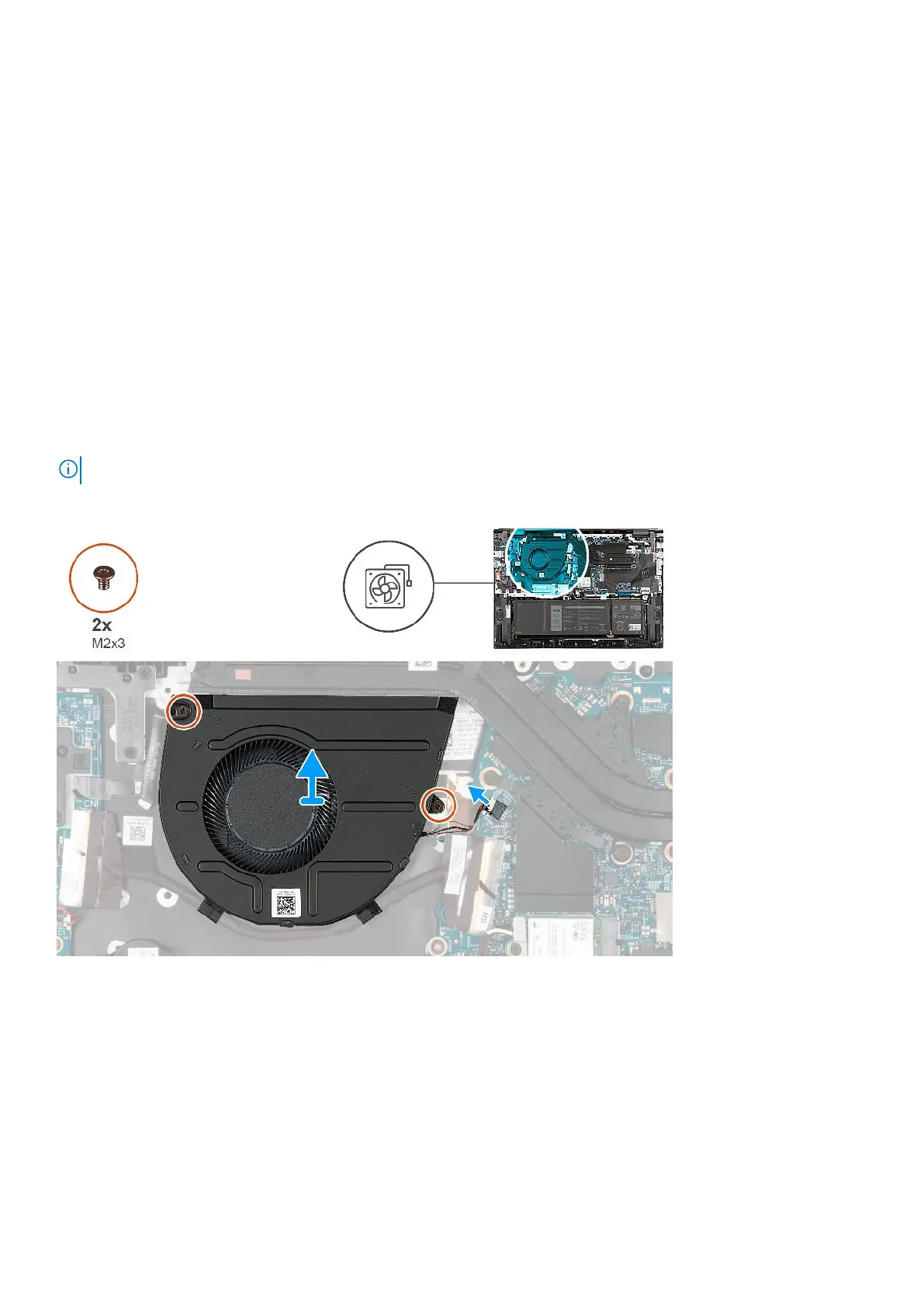

The following image(s) indicate the location of the fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the fan cable from the system board.
2. Remove the two screws (M2x3) that secure the left fan to the palm-rest and keyboard assembly.
3. Lift the fan off the palm-rest and keyboard assembly.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
36
Removing and installing Customer Replaceable Units (CRUs)
To Next Page
