Steps
1. Remove the three screws (M2.5x5) that secure the left display hinge to the system board.
2. Open the left display hinge at an angle of 90 degrees.
3. Remove the screw (M2x3) that secures the power button with optional fingerprint reader with optional fingerprint reader to
the palm-rest and keyboard assembly.
4. Lift the power button with optional fingerprint reader with optional fingerprint reader off the palm-rest and keyboard
assembly.
Installing the power button with optional fingerprint reader
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
If you are replacing a component, remove the existing component before performing the installation process.
About this task

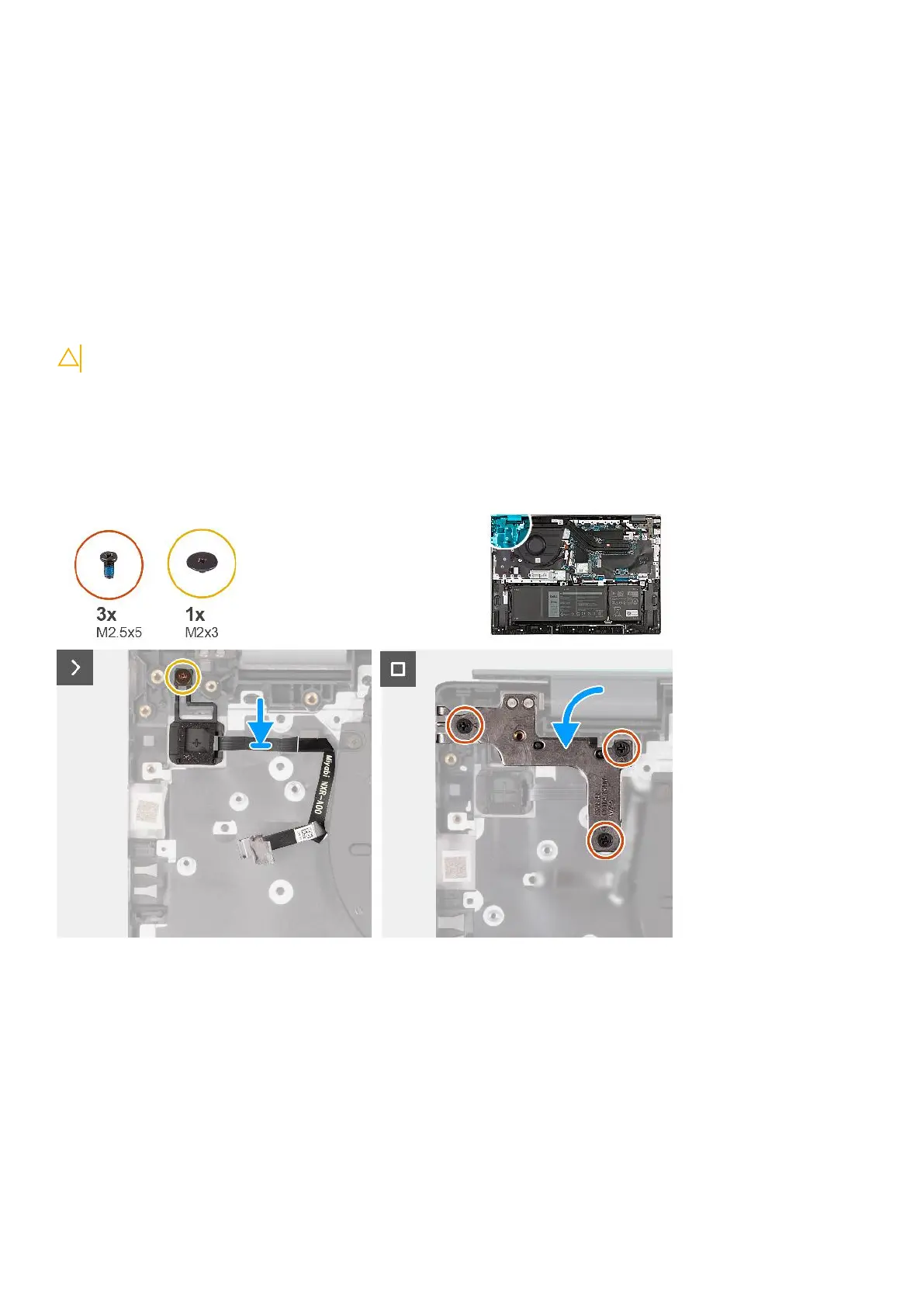

The following image(s) indicate the location of the power button with optional fingerprint reader and provides a visual
representation of the installation procedure.
Steps
1. Place the power button with optional fingerprint reader with optional fingerprint reader on the palm-rest and keyboard
assembly.
2. Align the screw hole on the power button with optional fingerprint reader with optional fingerprint reader with the screw
hole on the palm-rest and keyboard assembly.
3. Replace the screw (M2x3) that secures the power button with optional fingerprint reader with optional fingerprint reader to
the palm-rest and keyboard assembly.
4. Close the left display hinge and align the screw holes on the left display hinge with the screw holes on the palm-rest and
keyboard assembly.
5. Replace the three screws (M2.5x5) that secure the left display hinge to the palm-rest and keyboard assembly.
56
Removing and installing Field Replaceable Units (FRUs)
