System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
4. Remove the wireless card.
5. Remove the heat sink.
About this task
NOTE: Before removing the base cover, ensure that there is no SD card installed in the SD card slot on your computer.
NOTE: The system board can be removed and installed along with the heat sink, when you replace the palm-rest and
keyboard assembly. This simplifies the removal and installation procedure and also prevents damage to the thermal bond
between the system board and heat sink.
NOTE: Device Encryption will be triggered when either the system board or storage (SSD) is replaced. Refer to BitLocker
for more information on suspending BitLocker.

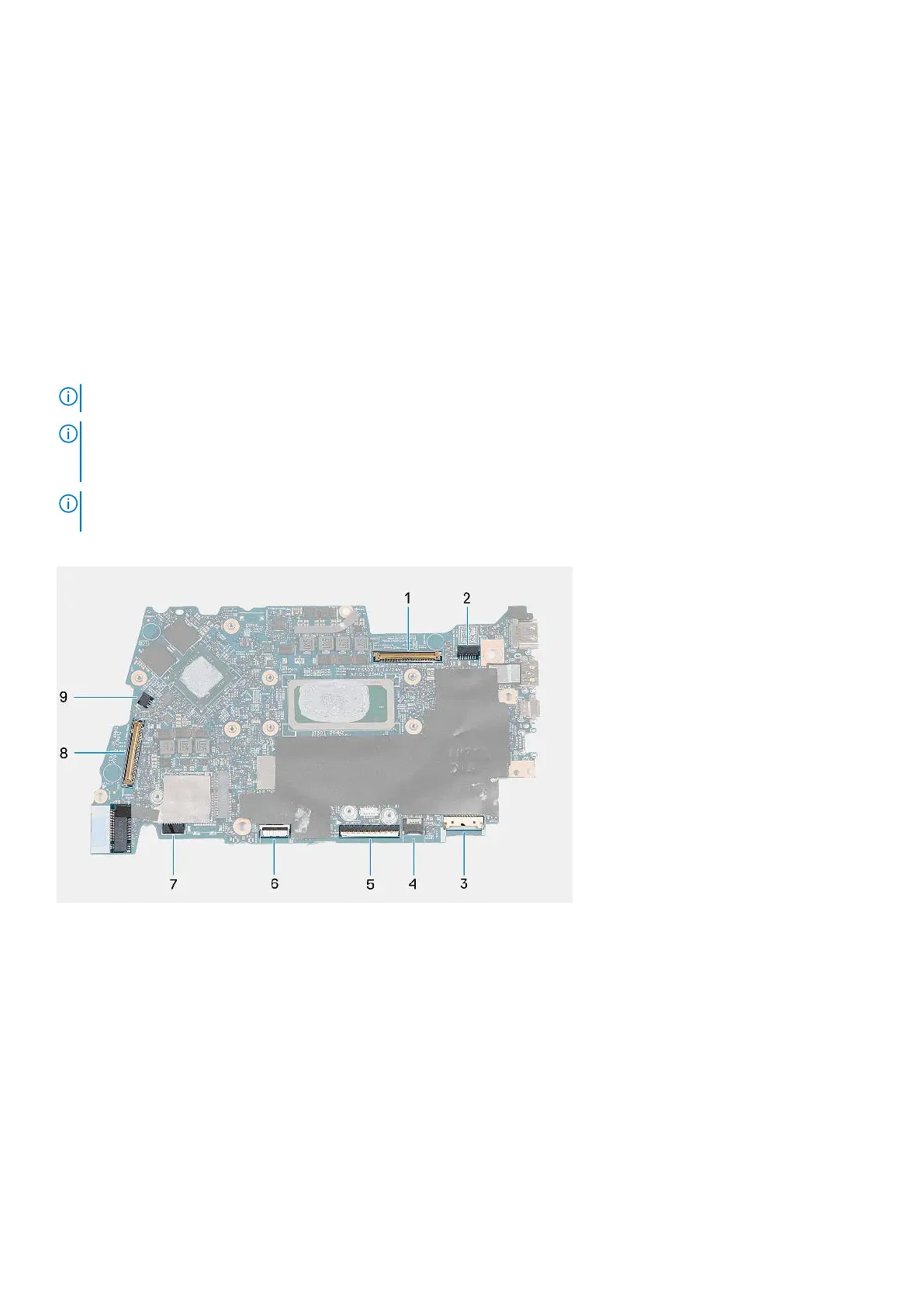

The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
1. Display cable connector
2. Power-cable connector
3. Battery-cable connector
4. Keyboard-cable connector
5. Touchpad-cable connector
6. Keyboard-backlight cable connector
7. Speaker cable connector
8. I/O board-cable connector
9. Fan-cable connector
Removing and installing Field Replaceable Units (FRUs)
65
