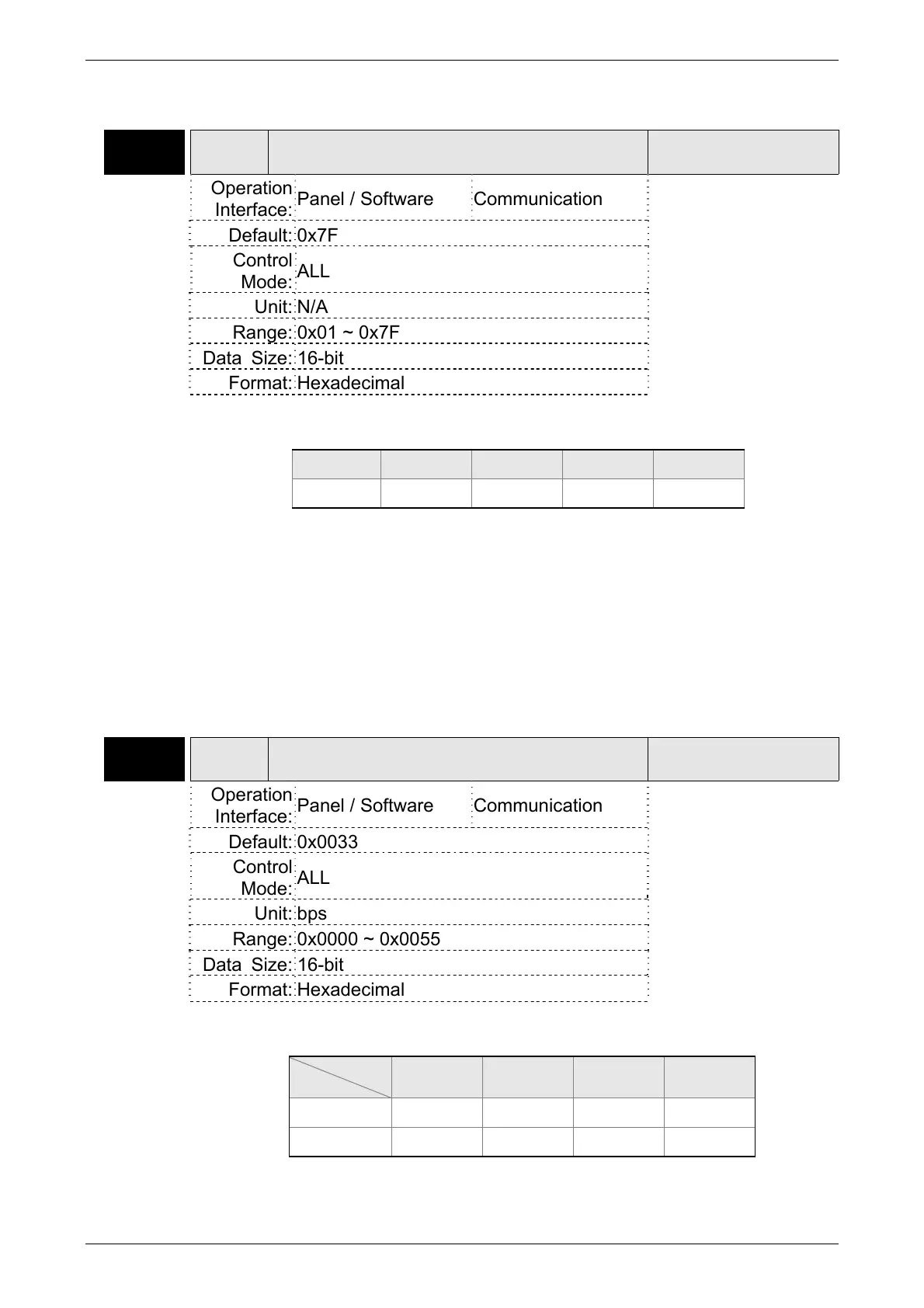

P3-xx Communication Parameters
P3-00●
ADR Address Setting
Address: 0300H
0301H
Operation
Interface:
Panel / Software Communication
Related Section:
8.2
Default: 0x7F
Control
Mode:
ALL
Unit: N/A
Range: 0x01 ~ 0x7F
Data Size: 16-bit
Format: Hexadecimal
Settings: The communication address setting is divided into Y, X
(hexadecimal):
Display 0 0 Y X
Range - - 0 ~ 7 0 ~ F
When using RS-232 / RS-485 to communicate, one servo drive
can only set one address. The duplicate address setting will cause
abnormal communication.
This address represents the absolute address of the servo drive in
communication network. It is also applicable to RS-232 / 485 and
CAN bus.
When the communication address setting of MODBUS is set to
0xFF, the servo drive will automatically reply and receive data
regardless of the address. However, P3-00 cannot be set to 0xFF.
P3-01 BRT Transmission Speed
Address: 0302H
0303H
Operation
Interface:
Panel / Software Communication
Related Section:
8.2
Default: 0x0033
Control
Mode:
ALL
Unit: bps
Range: 0x0000 ~ 0x0055
Data Size: 16-bit
Format: Hexadecimal
Settings: The setting of transmission speed is divided into Z, Y, X
(hexadecimal):
0 Z Y X
COM Port - - RS-485 RS-232
Range 0 0 0 ~ 5 0 ~ 5
