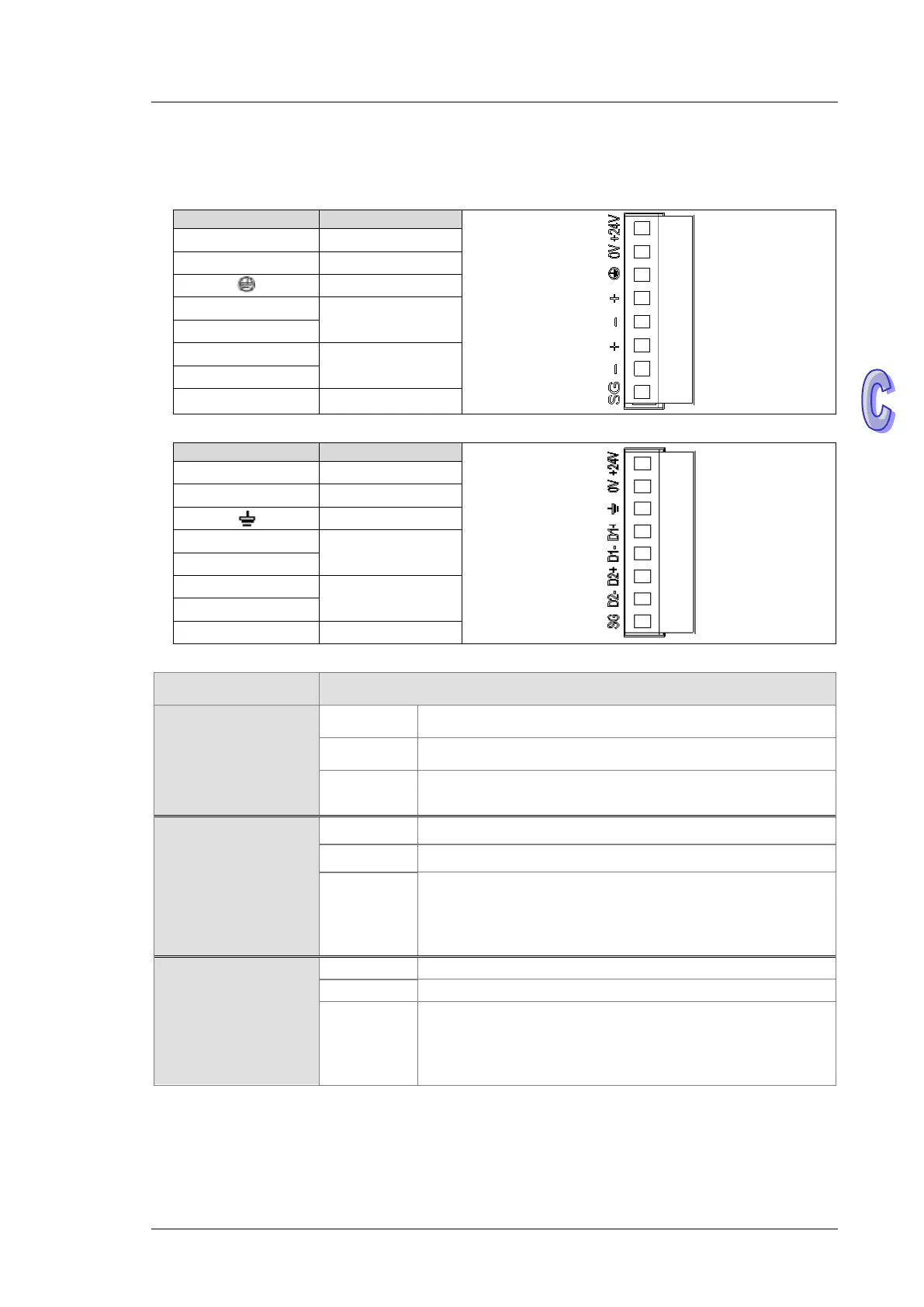

C.5 Definitions of TP04P Communication Ports
 TP04P-16TP1R/1T、TP04P-32TP1R/T、TP04P-22XA1R/T、TP04P-21EX1R/T
Name
Function
+24
+24V
0V
0V
FE
+
RS485 COM2
PLC Mode
-
+
RS485 COM3
TP Mode
-
SG
SG
 TP04P-20EXL1T、TP04P-08TP1R
Name
Function
+24
+24V
0V
0V
FE
D1+
RS485 COM2
PLC Mode
D1-
D2+
RS485 COM3
TP Mode
D2-
SG
SG
Communication port Descriptions
COM1
Ty
pe USB
Mode Uploading or downloading programs
Description Not supporting PLC CPU communication
COM2
Ty
pe RS-485
Mode Supporting PLC mode
Description
Data length: 7 bits or 8 bits
Stop bit: 1 bit or 2 bits
Parity check: None/Odd/Even
Transmission rate: 9,600 bps~115,200 bps
COM3
Type
RS-485
Mode
Supporting TP mode
Description
Data length: 7 bits or 8 bits
Stop bit: 1 bit or 2 bits
Parity check: None/Odd/Even
Transmission rate: 9,600 bps~115,200 bps
