Gear Ratio for Simple Index Function Factory Setting: 200
Settings 4 ~ 1000 Unit: 1
04 - 24
Index Angle for Simple Index Function Factory Setting: 180.0
Settings
0.0 ~360.0°
Unit: 0.1
04 - 25
Deceleration Time for Simple Index Function
a
Factory Setting: 0.00
Settings 0.00 ~100.00 sec Unit: 0.01
 The simple index function is to position the mechine at the same position when it stops.
The function should be used with the function 34 of Multi-Function Input Terminals.

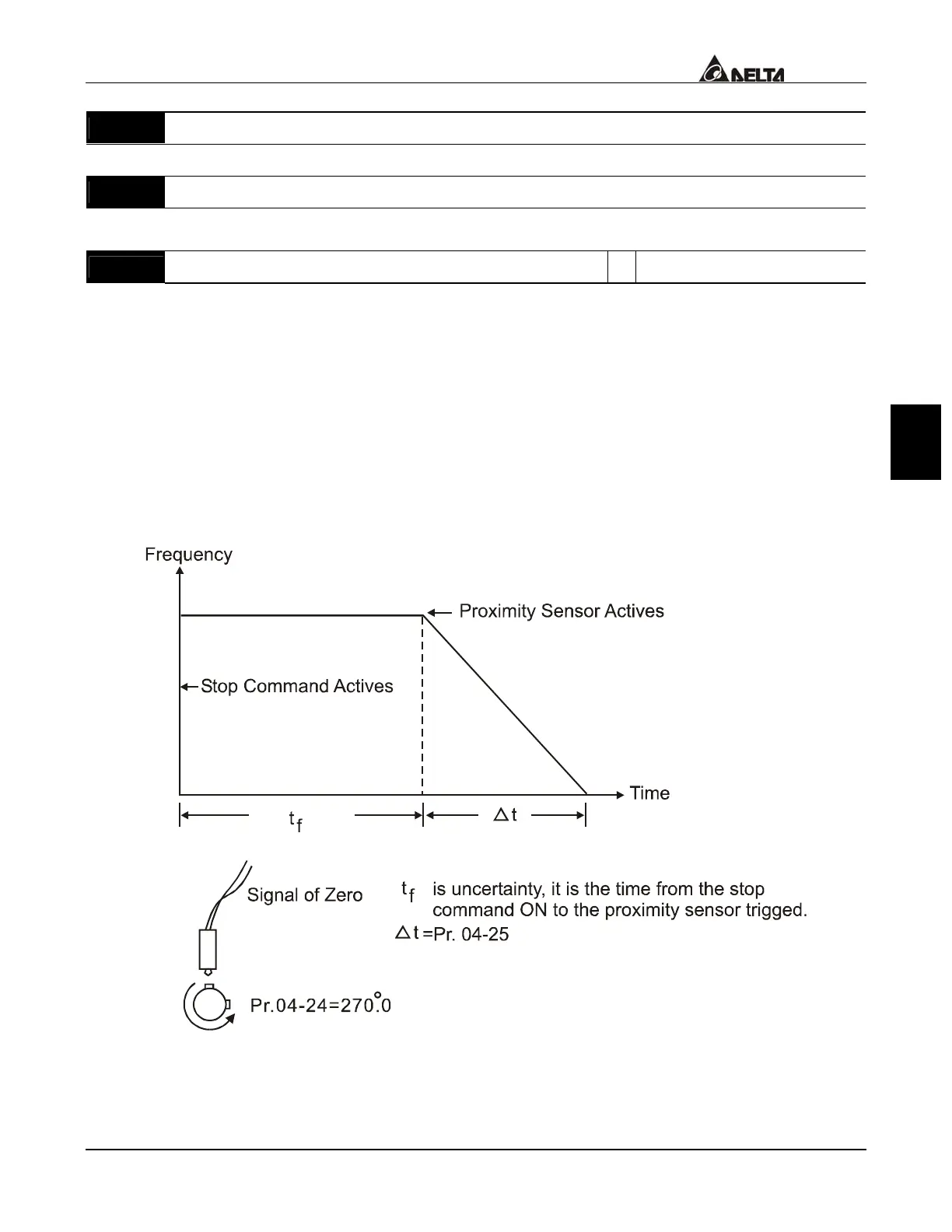

 The system diagram is shown below. The mechine is drived by the gear motor or other
reduction gear. The trigger position of sensor is used as the original point of index
angle. When the stop command is accepted, the AC drive will not decelerate until the
sensor is trigged, then the AC drive begin to decelerate and stop according to the
Pr.04-24 and Pr.04-25.
