Delta VFD300C43S-HS User Manual

Chapter 8 Option CardsC2000-HS
8-29
8-12 CMC-PD01 -- Communication card, PROFIBUS DP
8-12-1 Features
1. Supports PZD control data exchange.
2. Supports PKW polling AC motor drive parameters.
3. Supports user diagnosis function.
4. Auto-detects baud rates; supports Max. 12Mbps.

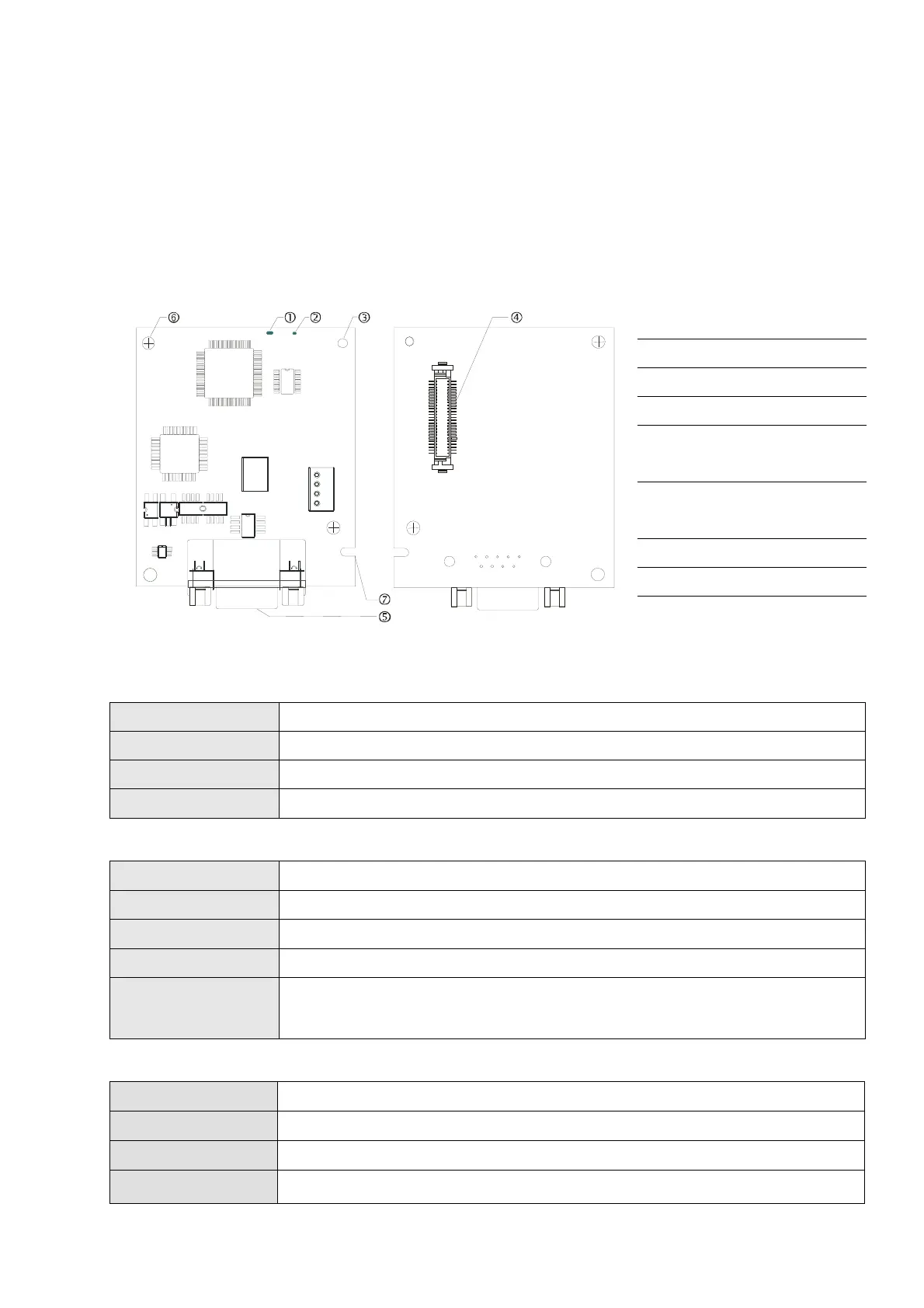

8-12-2 Product Profile
1. NET indicator
2. POWER indicator
3. Positioning hole
4. AC motor drive connection
port
5. PROFIBUS DP connection
port
6. Screw fixing hole
7. Fool-proof groove
8-12-3 Specifications
PROFIBUS DP Connector
Interface DB9 connector
Transmission method High-speed RS-485
Transmission cable Shielded twisted pair cable
Electrical isolation 500V
DC
Communication
Message type Cyclic data exchange
Module name CMC-PD01
GSD document DELA08DB.GSD
Company ID 08DB (HEX)
Serial transmission
speed supported
(auto-detection)
9.6Kbps; 19.2Kbps; 93.75Kbps; 187.5Kbps; 500Kbps; 1.5Mbps; 3Mbps; 6Mbps;
12Mbps (bit per second)
Electrical Specification
Power supply voltage
5V
DC
(supplied by AC motor drive)
Insulation voltage
500V
DC
Power consumption
1W
Weight
28g
