Delta VFD300C43S-HS User Manual

Chapter 7 Optional AccessoriesC2000-HS
7-17

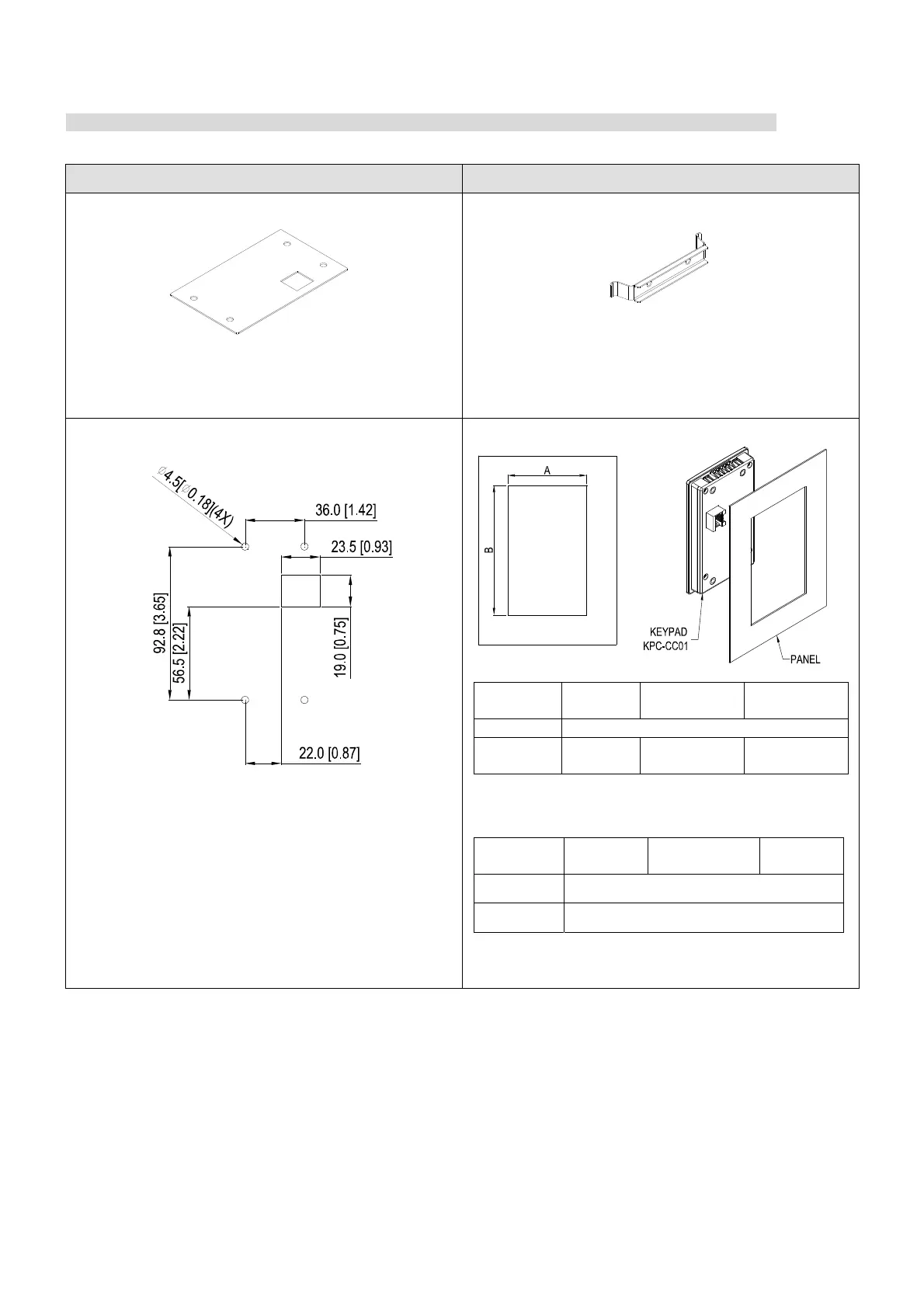

7-6 Panel Mounting (MKC-KPPK)
For MKC-KPPK model, user can choose wall mounting or embedded mounting, protection level is IP66.
Applicable to the digital keypads (KPC-CC01)
Wall Mounting Embedded Mounting
accessories*1
Screw *4–M4*p 0.7 *L8mm
Torque: 10–12 kg-cm / [8.7–10.4 lb-in.] /
[1.0–1.2 Nm]
accessories*2
Screw *4–M4*p 0.7 *L8mm
Torque: 10–12 kg-cm / [8.7–10.4 lb-in.] /
[1.0–1.2 Nm]
Panel cutout dimension Unit: mm [inch]
Panel cutout dimension Unit: mm [inch]
Normal cutout dimension
Panel
thickness
1.2mm 1.6mm 2.0mm
A 66.4 [2.614]
B
110.2
[4.339]
111.3
[4.382]
112.5
[4.429]
*Deviation: ±0.15mm /±0.0059inch
Cutout dimension (Waterproof level: IP66)
Panel
thickness
1.2mm 1.6mm 2.0mm
A 66.4 [2.614]
B 110.8 [4.362]
*Deviation: ±0.15mm / ±0.0059inch
Table 7-12
Table 7-13
