Delta VFD300C43S-HS User Manual

Chapter 13 Warning CodesC2000-HS
13-1

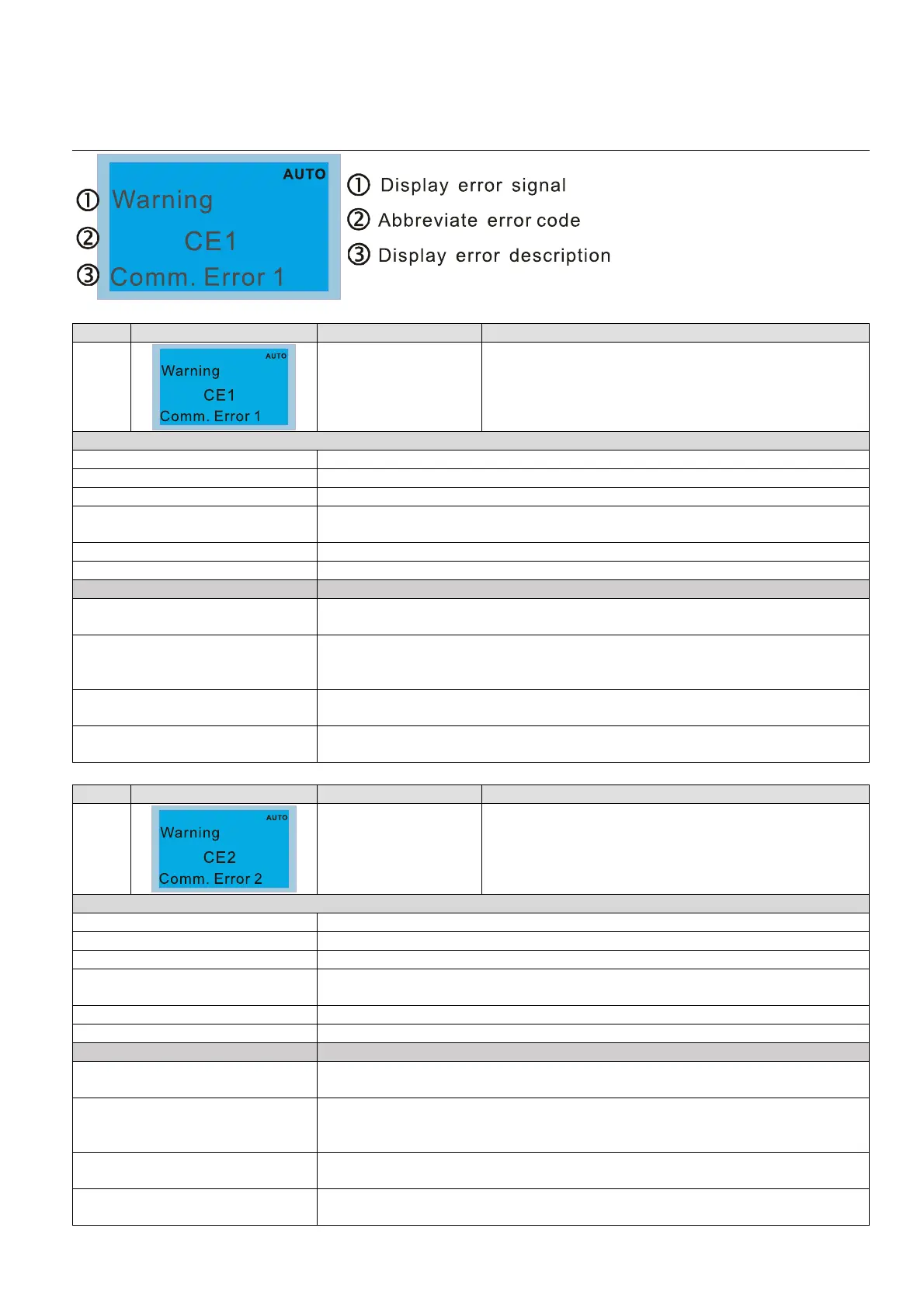

Chapter 13 Warning Codes
ID No. Display on LCM Keypad Warning Name Description
1
Communication error 1
(CE1)
RS-485 Modbus illegal function code
Action and Reset
Action level When the function code is not 03, 06, 10 and 63
Action time Immediately act
Warning setting parameter N/A
Reset method
“Warning” occurs when Pr. 09-02=0 and the motor drive keeps running. The
drive resets automatically when receiving the correct function code.
Reset condition Immediately reset
Record N/A
Cause Corrective Actions
Incorrect communication
command from upper unit
Check if the communication command is correct.
Malfunction caused by interference
Verify the wiring and grounding of the communication circuit. It is recommended
to separate the communication circuit from the main circuit, or wire in 90 degree
for effective anti-interference performance.
Different communication setting
from the upper unit
Check if the setting for Pr. 09-02 is the same as the setting for the upper unit.
Disconnection or bad connection
of the cable
Check the cable and replace it if necessary.
ID No. Display on LCM Keypad Warning Name Description
2
Communication error 2
(CE2)
RS-485 Modbus illegal data address
Action and Reset
Action level When the input data address is incorrect
Action time Immediately act
Warning setting parameter N/A
Reset method
“Warning” occurs when Pr. 09-02=0 and the motor drive keeps running. The
drive resets automatically when receiving the correct data address.
Reset condition Immediately reset
Record N/A
Cause Corrective Actions
Incorrect communication
command from upper unit
Check if the communication command is correct.
Malfunction caused by interference
Verify the wiring and grounding of the communication circuit. It is recommended
to separate the communication circuit from the main circuit, or wire in 90 degree
for effective anti-interference performance.
Different communication setting
from the upper unit
Check if the setting for Pr. 09-02 is the same as the setting for the upper unit.
Disconnection or bad connection
of the cable
Check the cable and replace it if necessary.
