Chapter 7 Optional AccessoriesC2000-HS
7-6
7-4 AC/DC Reactor
AC Input Reactor
Installing an AC reactor in the input side of an AC motor drive can increase line impedance, improve
power factor, reduce input current, increase system capacity and reduce interference generated from
motor drive. It also reduces momentary voltage surges or abnormal current spikes. For example, when the
main power capacity is higher than 500 kVA, or when using a switching capacitor bank, momentary voltage
and current spike may damage the AC motor drive’s internal circuit. An AC reactor on the input side of the
AC motor drive protects it by suppressing surges.
Installation
Install an AC input reactor in series with the main power to the three input phases R/ S/ T as shown
below:

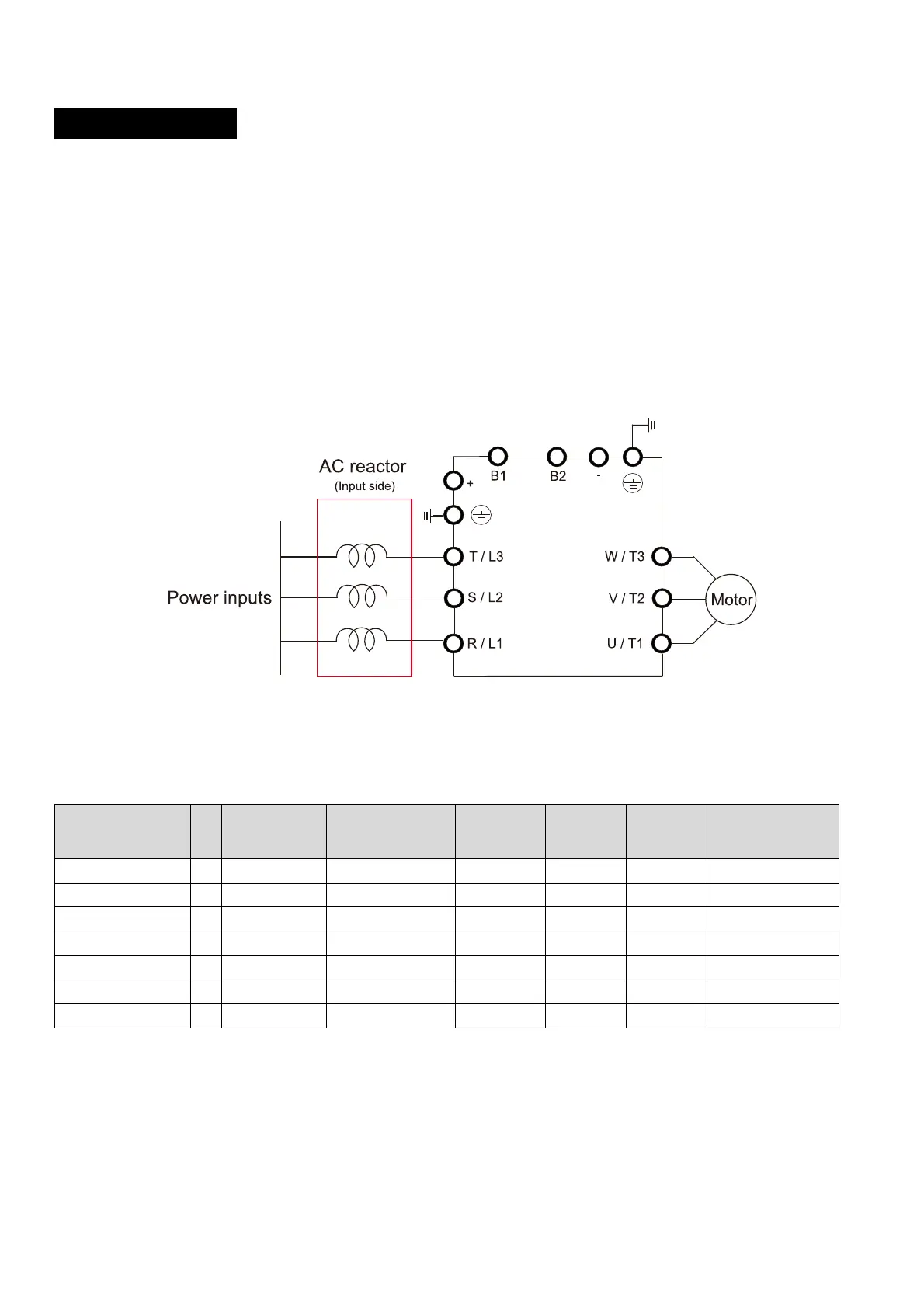

Wiring of AC input reactor
Following table shows the standard AC reactors specification of Delta C2000-HS
380V–460V / 50–60Hz
Model HP
Rated Current
(Arms)
Saturation current
(Arms)
3%
impedance
(mH)
5%
impedance
(mH)
Built-in
DC reactor
3%
Input AC reactor
Delta part #
VFD300C43S-HS
40 60 102.6 0.405 0.675 Yes DR060AP405
VFD370C43S-HS
50 73 124.2 0.334 0.555 Yes DR073AP334
VFD750C43A-HS
100 150 257.4 0.162 0.270 Yes DR150AP162
VFD1100C43A-HS
150 220 376.2 0.110 0.184 Yes DR220AP110
VFD1600C43A-HS
215 310 531 0.078 0.131 Yes DR310AP078
VFD2200C43A-HS
300 460 786.6 0.054 0.090 Yes DR460AP054
VFD3550C43A-HS
475 683 1168.2 0.036 0.060 Yes DR683AP036
Figure 7-5
Table 7-5
