Chapter 6 Control TerminalsC2000-HS
6-4

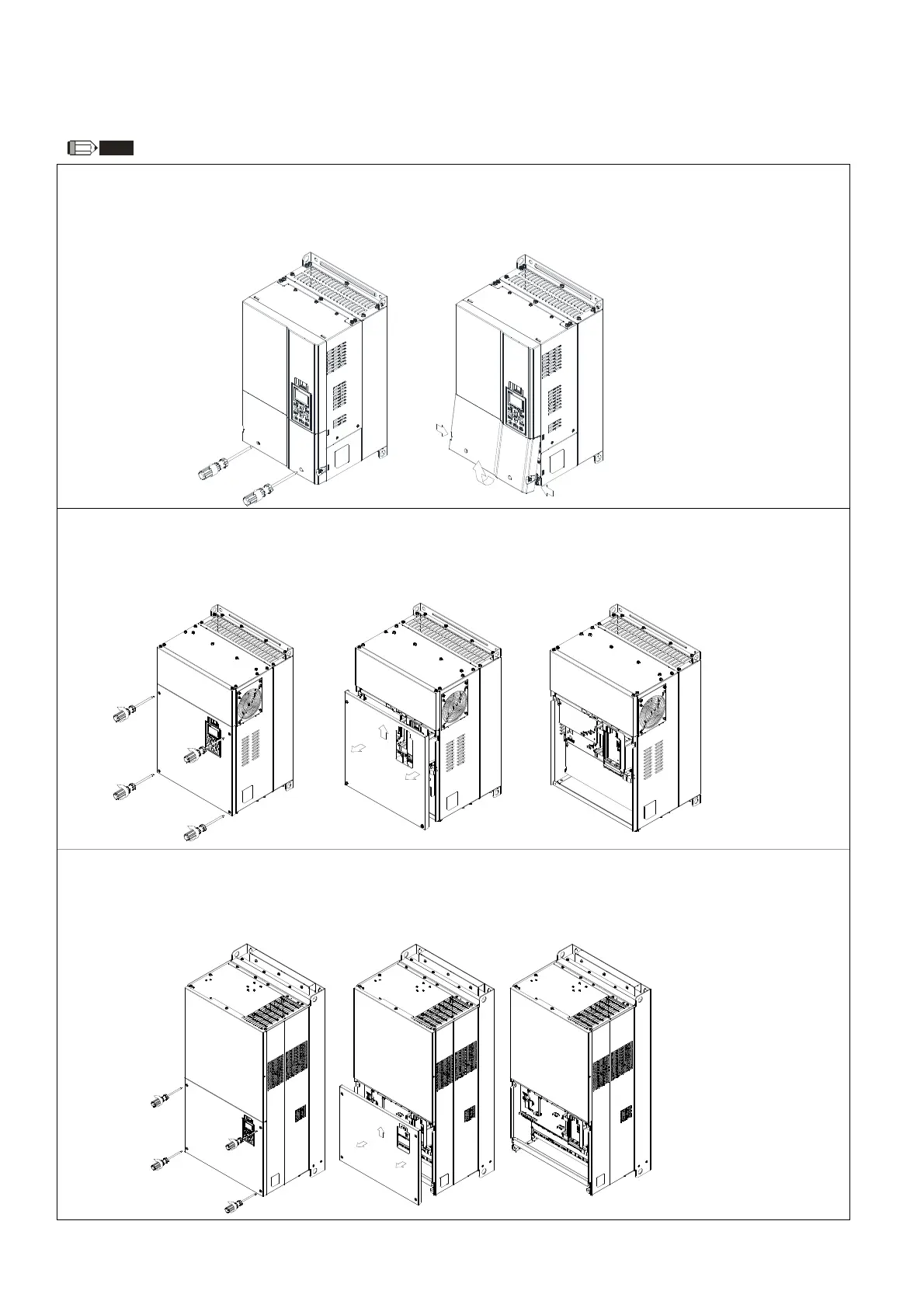

6-1 Remove the Cover for Wiring
Please remove the top cover before wiring the multi-function input and output terminals.
NOTE
The drive appearances shown in the figures are for reference only, a real drive may look different.
Frame D0 & D
Applicable models: VFD300C43S-HS; VFD370C43S-HS; VFD750C43A-HS
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
Loosen the screws and press the tabs on both sides to remove the cover.
Figure 6-6
Frame E
Applicable models: VFD1100C43A-HS
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-7
Frame F
Applicable models: VFD1600C43A-HS
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-8
