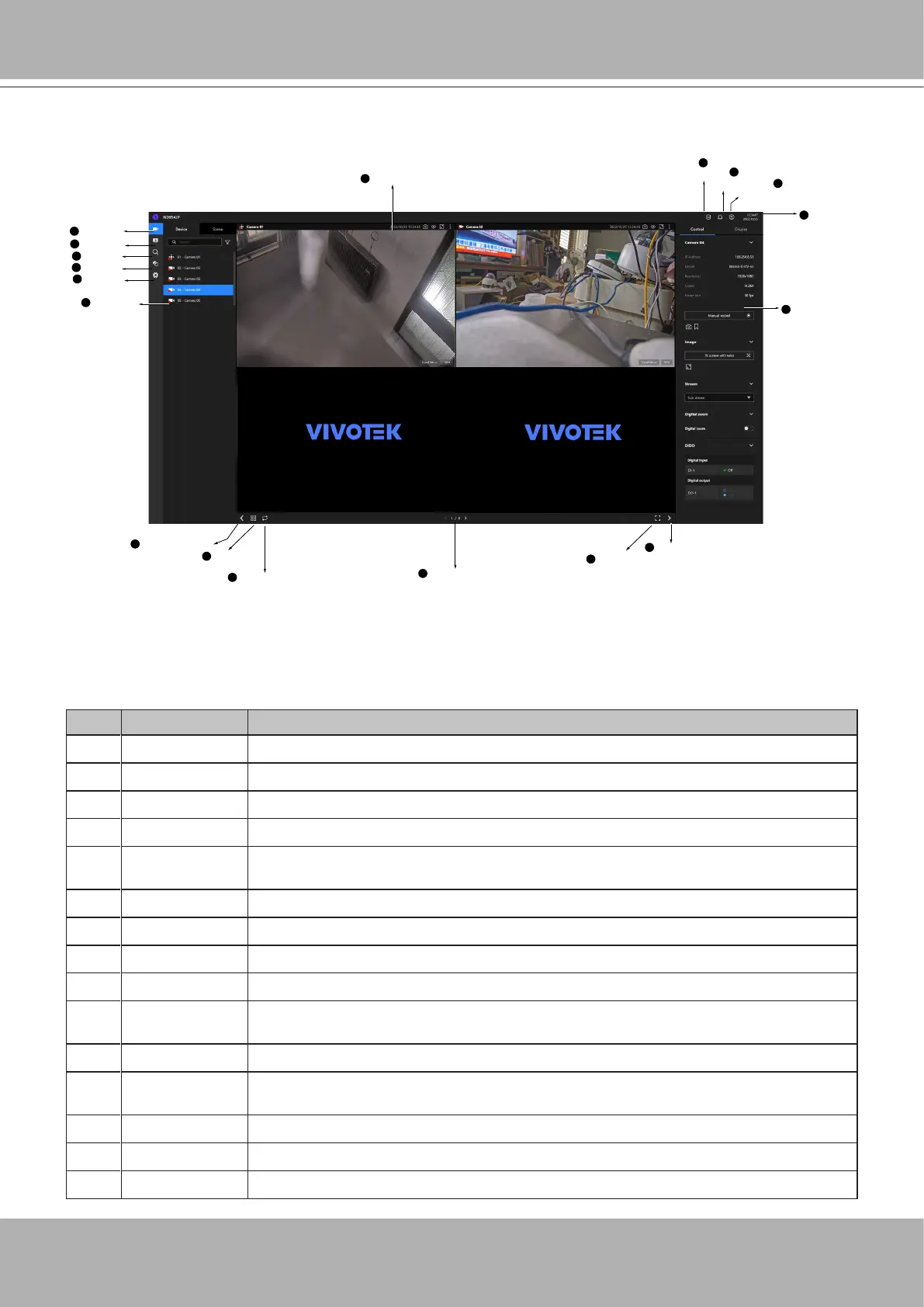

4-2. Graphical Layout and Screen Elements - Liveview
Once you log in, the system defaults to the Liveview page, which provides access to other
conguration utilities, live view screen, and other functional panels. The screen elements are
described as follows:
Item Name Description
1
Live view Provides a glimpse of all cameras inserted into your conguration.
2
Playback Provides access to camera recordings.
3
Search Provides access to the Alarm search panel.
4
AI Search Provides access to the AI metadata search panel.
5
Device list All devices (cameras / video servers) that have been recruited into the
conguration will be listed.
6
Settings Provides access to system settings.
7
View cell panel The video feeds from cameras will be placed into view cells.
8
Storage Provides a glimpse of current storage usage.
9
Notication System notications including system events and alarm notications.
10
Login/Log out You can log out and log in again using another user role. You can switch to the
original interface from here, too.
11
Date & Time Displays date and time. You can click to enter the date and time setting page.
12
Control &
Display pane
When a view cell is selected, the camera-specic control (such as PTZ) and
display options will be available here.
13
Shrink / Expand You can display or hide the side panes.
14
Layout Provides functions to extend, rotate, and redo the layout.
15
Rotation mode Click to enter the Rotation mode.
Item Name Description
16
Page changer Cick to move to the other layout page when your live views are distributed over
many pages.
17
Full screen Enters the full screen with only the live views.
