Chapter Three
Conguation Using the Local Console
The Main Control Portal
3-1. Layout

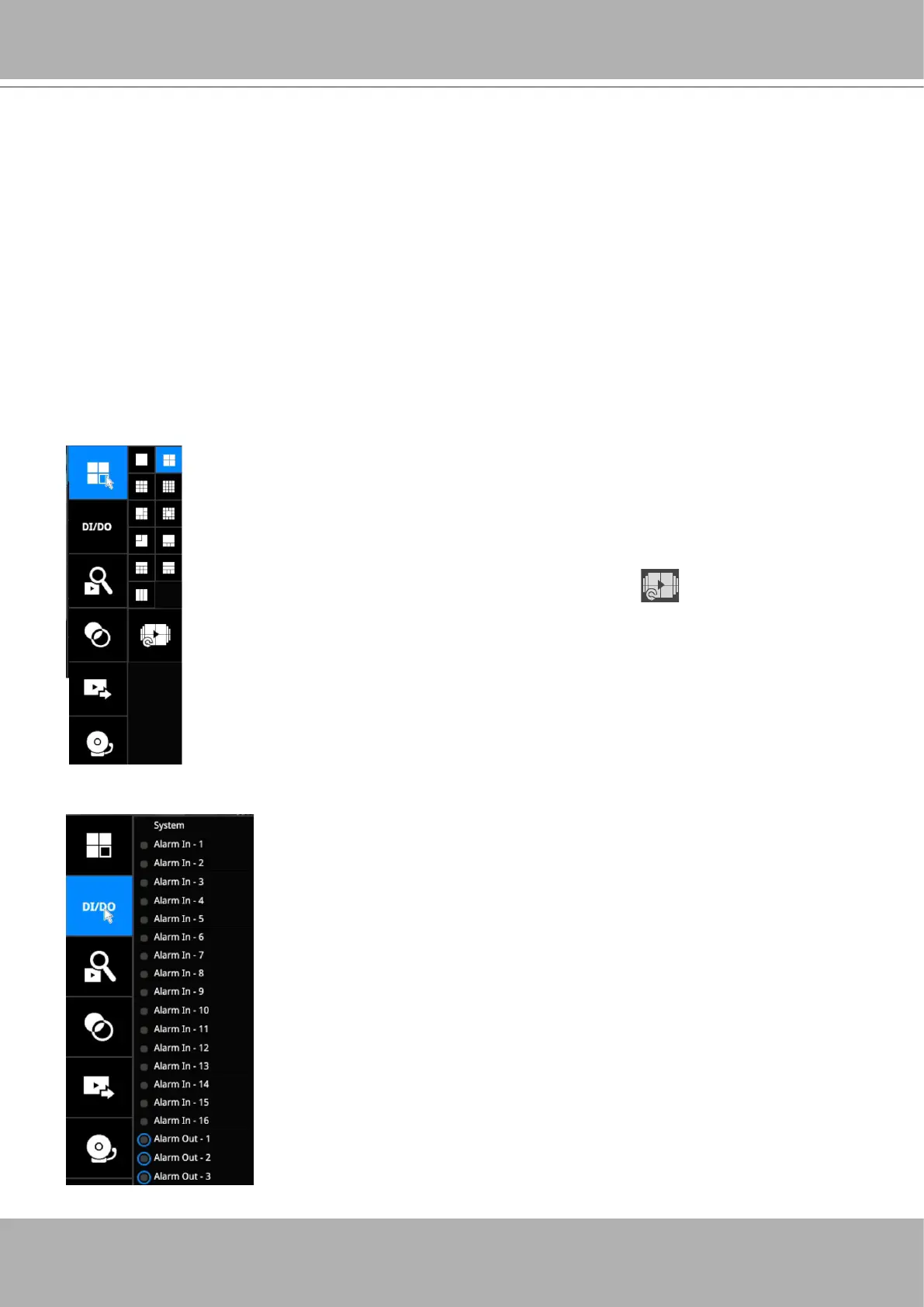

The local layouts:
1x1, 2x2, 3x3, 4x4, 1M+5, 1M+12, 1M+31, 1P+3, 1P+6, 2P+3, 3V
If you select the single view layout, the rotation button will appear. Click the
rotation button below to let the system swap the display of di󰀨erent cameras by
every 10 seconds. The rotation speed is congurable via Settings > System >
Display.
Move your mouse cursor across the screen to display the portal.
3-2. DI/DO
Click on the DI/DO button to display the full list of all DI and DO
signals (whether they are connected or not) from all cameras in the
conguration. If a digital input signal is triggered, e.g., the DI-4 on the
left, its indicator will turn solid white.
Note that you should click again to disable a DO after it is triggered.
Otherwise, the DO will be constantly triggered.
