7
ENGLISH
Basic version Advanced version InformationSimple version

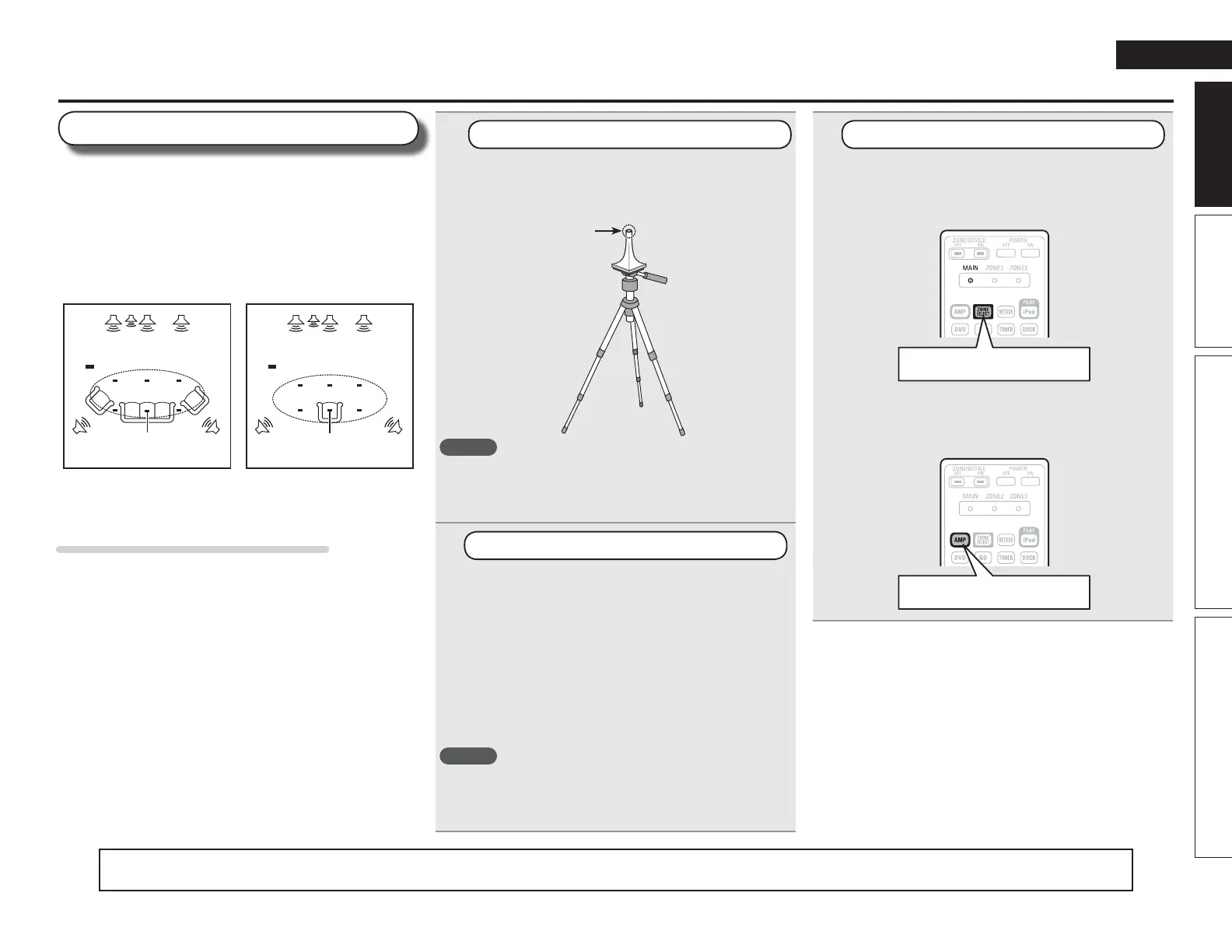

About setup microphone placement
• Measurements are performed by placing the setup microphone
successively at multiple positions throughout the entire listening
area, as shown in GExample qH. For best results, we recommend
you measure in six or more positions, as shown in the illustration
(up to eight positions).
• Even if the listening environment is small as shown in GExample wH,
measuring at multiple points throughout the listening environment
results in more effective correction.
FL SW C FR
SRSL
*
M
FL SW C FR
SRSL
*
M
(
: Measuring positions)
GExample qHGExample wH
(
: Measuring positions)
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
About the main listening position (*M)
The main listening position is the position where listeners would
normally sit or where one would normally sit alone within the listening
environment. Before starting Audyssey Auto Setup, place the setup
microphone in the main listening position. Audyssey MultEQ
®
XT uses
the measurements from this position to calculate speaker distance,
level, polarity, and the optimum crossover value for the subwoofer.
The “Simple Version” describes the installation, connection and setup methods for 5.1-channel speakers.
See page 49 for the installation, connection and setup methods for speakers other than 5.1-channel speakers.
Set up speakers (Audyssey
®
Auto Setup)
3
Set up the remote control unit
n Set up the zone mode
3UHVV
ZONE SELECT WR VZLWFK WKH ]RQH PRGH WR
³0$,1´
The “MAIN” indicator lights.
Press ZONE SELECT
n Set up the operation mode
3UHVV
AMPWRVHWWKHUHPRWHFRQWUROXQLWWRDPSOL¿HU
RSHUDWLRQPRGH
Press AMP
1
Prepare the setup microphone
0RXQW WKH VHWXS PLFURSKRQH RQ D WULSRG RU VWDQG
DQGSODFHLWLQWKHPDLQOLVWHQLQJSRVLWLRQ
When placing the setup microphone, adjust the height of the
sound receptor to the level of the listener’s ear.
Sound receptor
Setup
microphone
NOTE
• Do not hold the setup microphone in your hand during
measurements.
• Avoid placing the setup microphone close to a seat back or wall as
sound reflections may give inaccurate results.
2
Set up the subwoofer
,I XVLQJ D VXEZRRIHU FDSDEOH RI WKH IROORZLQJ
DGMXVWPHQWVVHWXSWKHVXEZRRIHUDVVKRZQEHORZ
n When using a subwoofer with a direct mode
Set the direct mode to “On” and disable the volume adjustment
and crossover frequency setting.
n When using a subwoofer without a direct mode
Make the following settings:
• Volume : “12 o’clock position”
• Crossover frequency : “Maximum/Highest Frequency”
• Low pass filter : “Off”
• Standby mode : “Off”
NOTE
When you use two subwoofers, please adjust the subwoofer volume
controls individually so that each subwoofer level is as close as
possible to 75 dB using the test tone (vpage81) before Audyssey
Auto Setup.
To Next Page
