Denon AVR-3311 User Manual

91
ENGLISH
Basic versionSimple version InformationAdvanced version

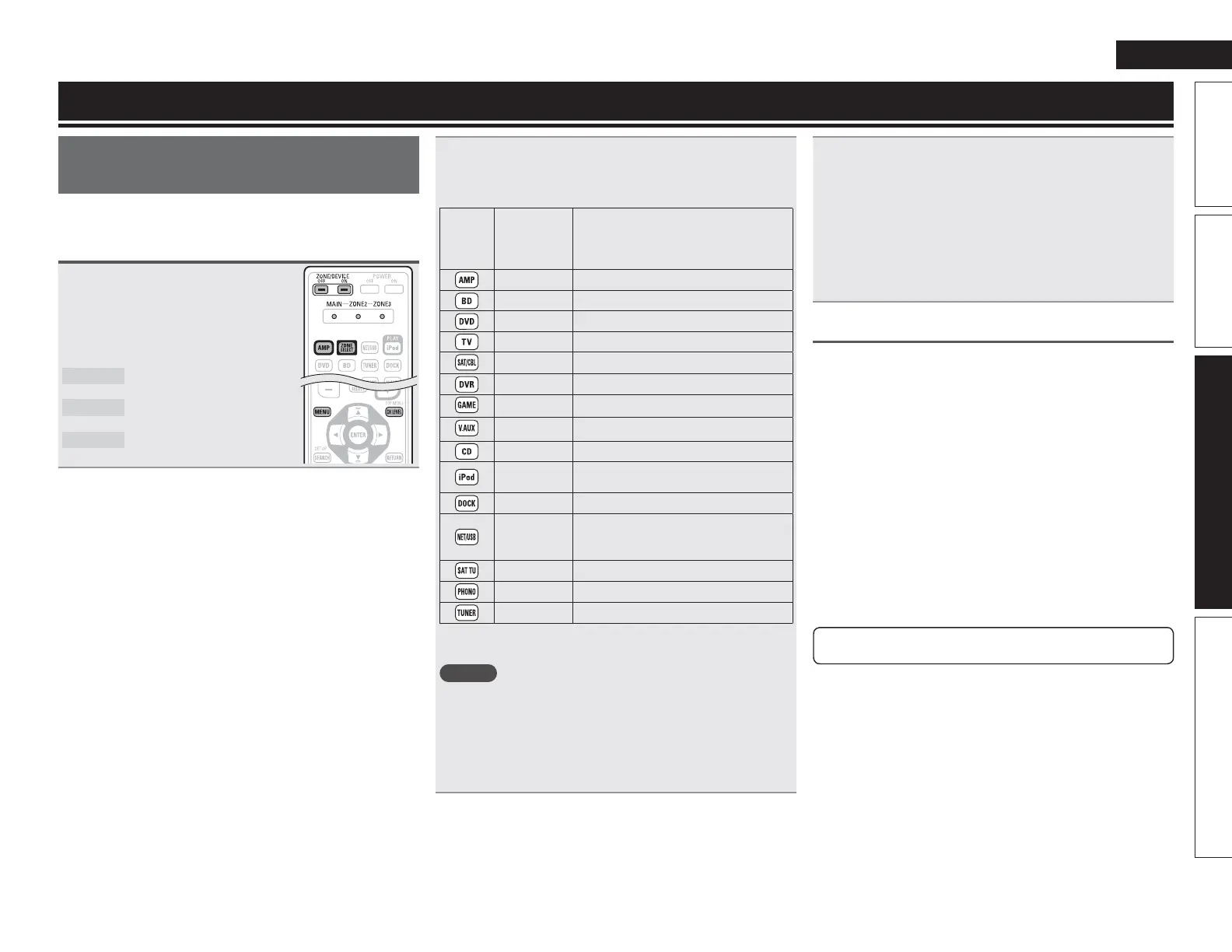

Operating the connected devices by remote control unit
Operating the main remote control
unit
Registering the supplied preset codes in the remote control unit
enables you to operate devices made by other manufacturers.
Operating AV equipment
1
3UHVV ZONE SELECT WR VHOHFW D
]RQHIRURSHUDWLRQ
The zone mode indicator corresponding
to the operating zone lights.
• The mode switches each time ZONE
SELECT
is pressed.
MAIN
Select for the operations in
MAIN ZONE.
ZONE2
Select for the operations in
ZONE2.
ZONE3
Select for the operations in
ZONE3.
2
3UHVVWKHLQSXWVRXUFHVHOHFWEXWWRQvSDJH
• The input source for the zone selected in step 1 is switched.
• The operation mode of the remote control unit is switched as
shown in the table.
Input
source
select
button
Input source
of this unit
Devices controllable with the remote
control unit
(Operation mode)
– This unit (amplifier operation)
z
BD
Device registered on the
BD button
z
DVD
Device registered on the
DVD button
z
TV
Device registered on the
TV button
z
SAT/CBL
Device registered on the SAT/CBL button
z
DVR
Device registered on the
DVR button
z
GAME
Device registered on the
GAME button
z
V.AUX
Device registered on the
V.AUX button
z
CD
Device registered on the
CD button
NET/USB or
DOCK
iPod connected to the USB port or
control dock for iPod.
DOCK Control dock for iPod
NET/USB
• Network function
• iPod or USB memory device connected
to the USB port
SIRIUS SIRIUS Satellite Radio
PHONO –
HD Radio HD Radio receiver
z If a preset code is registered for this button, the remote control
unit of this unit can control another devices.
NOTE
If the mode of the remote control unit is set to other than amp-
operation mode, press
AMP to switch the remote control unit to the
amp-operation mode to perform the following operations:
• For menu operation by pressing
MENU
• For setting the channel level of the unit by pressing CH LEVEL
• For turning power in each zone on or off by pressing ZONE/DEVICE
ON
or ZONE/DEVICE OFF.
3
2SHUDWHWKLVXQLWRUWKHGHYLFHZKRVHLQSXWVRXUFHLV
VZLWFKHG
• For details, refer to the operating instructions for each device.
For operations of iPod, SIRIUS, HD Radio and USB memory device,
see the following pages.
• iPod (vpage26, 27)
• SIRIUS (vpage30)
• HD Radio (vpage32)
• Network function (vpage35 – 43)
• USB memory device (vpage44)
Registering preset codes
When preset codes are registered in the included remote control unit,
it can then be used to operate any devices you have, such as DVD
players or TVs made by different manufacturers.
In this menu, you can search and display the preset codes that can be
preset in the included remote control unit.
n Buttons used for operating the devices
q ZONE/DEVICE ON, ZONE/DEVICE OFF
For switching power of each device on or off.
w
uio p, ENTER, RETURN
For menu operation of each device.
e
MENU, SETUP, TOP MENU
For displaying the menu of each device.
r
1, 2, 3, 6, 7, 8, 9
t Number button (0 – 9, +10)
y
CH +, CH –
u TV POWER, TV INPUT
For operating a TV
This button is enabled in any mode.
For details on operation with the remote control unit, see pages
43, 94.

Denon AVR-3311 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Optical drive included	No
Display	LED
Equalizer	Yes
HDMI version	1.4a
Product color	Silver
Audio decoders	DTS 96/24, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD
Volume control	Rotary
Multi-Zone quantity	4
Apple docking compatibility	iPod Classic 4, iPod Classic 5, iPod Mini 1, iPod Mini 2, iPod Nano 1, iPod Nano 2
Supported video modes	1080p
HDMI in	6
Audio (L/R) in	9
Composite video in	5
USB ports quantity	1
S-Video inputs quantity	2
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
AM band range	522 - 1611 kHz
FM band range	57.5 - 108 MHz
Composite video out	3
Headphone connectivity	3.5 mm/6.35 mm
Digital audio coaxial out	0
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	381 mm
Width	434 mm
Height	171 mm
Weight	12200 g
