Denon AVR-3311 User Manual

102
ENGLISH

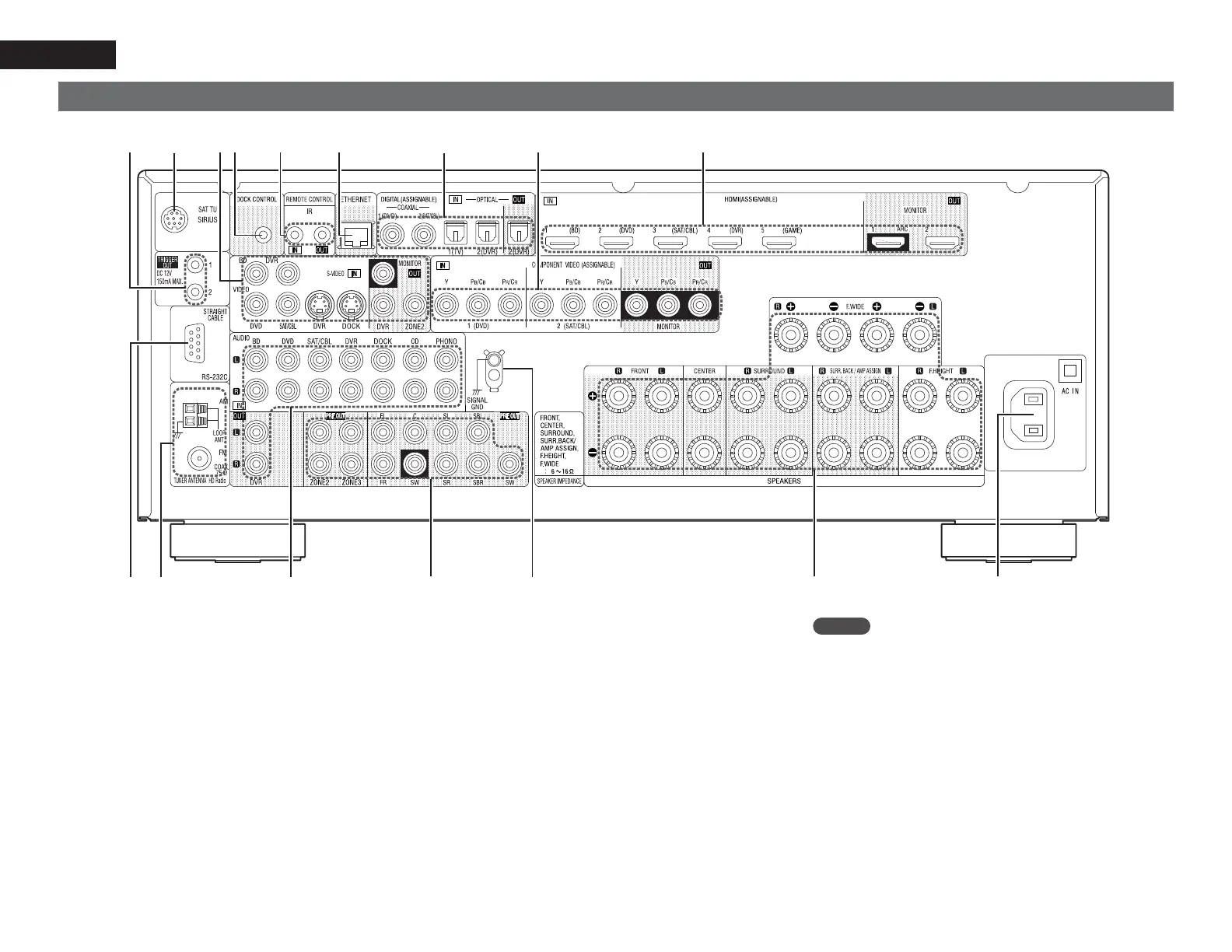

Rear panel
See the page indicated in parentheses ( ).
i
qw
er yt u
Q0
o
Q6 Q5 Q4Q3 Q2 Q1
q RS-232C connector ·································································· (23)
w HD Radio antenna terminals ·················································· (20)
e Analog audio connectors ·····································(16 – 18, 21, 23)
r PRE OUT connectors ··············································(5, 23, 50 – 52)
t SIGNAL GND terminal ···························································· (21)
y Speaker terminals ························································(5, 50 – 52)
u AC inlet (AC IN) ·········································································· (5)
i HDMI connectors ····································································· (14)
o COMPONENT VIDEO connectors ····································· (16, 17)
Q0 Digital audio connectors ··················································(16 – 18)
Q1 ETHERNET connector ····························································· (22)
Q2 REMOTE CONTROL jacks ······················································· (23)
Q3 DOCK CONTROL jack ······························································ (19)
Q4 S-VIDEO/VIDEO connectors ············································(16 – 19)
Q5 SIRIUS connector ···································································· (20)
Q6 TRIGGER OUT jacks ································································ (23)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.

Denon AVR-3311 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Optical drive included	No
Display	LED
Equalizer	Yes
HDMI version	1.4a
Product color	Silver
Audio decoders	DTS 96/24, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD
Volume control	Rotary
Multi-Zone quantity	4
Apple docking compatibility	iPod Classic 4, iPod Classic 5, iPod Mini 1, iPod Mini 2, iPod Nano 1, iPod Nano 2
Supported video modes	1080p
HDMI in	6
Audio (L/R) in	9
Composite video in	5
USB ports quantity	1
S-Video inputs quantity	2
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
AM band range	522 - 1611 kHz
FM band range	57.5 - 108 MHz
Composite video out	3
Headphone connectivity	3.5 mm/6.35 mm
Digital audio coaxial out	0
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	381 mm
Width	434 mm
Height	171 mm
Weight	12200 g
