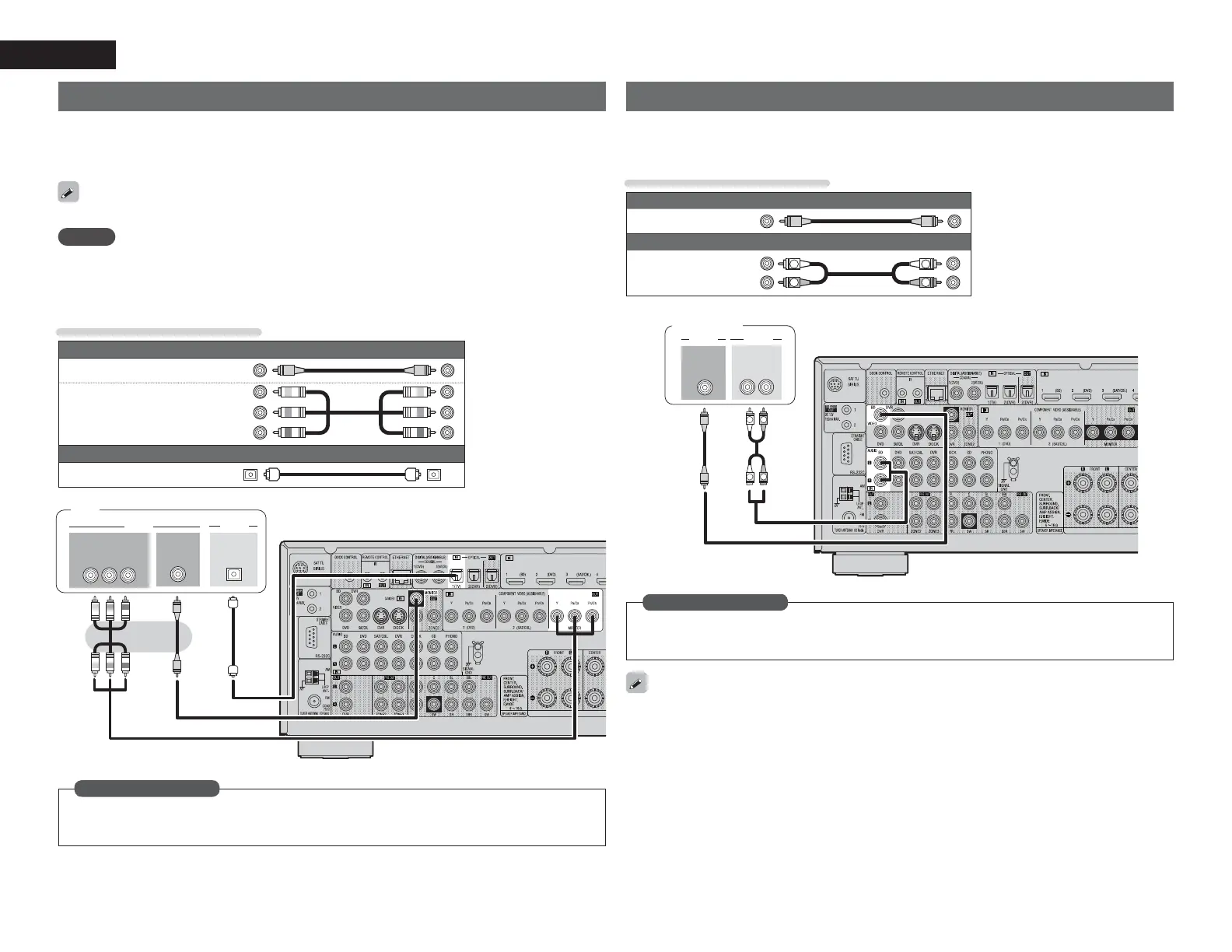

Connecting a TV
• Select the connector to use and connect the device.
• For video connections, see “Converting input video signals for output (Video conversion function)”
(vpage13).
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
To listen to TV audio through this device, use the optical digital connection.
NOTE
This connection is not required when a TV compatible with the ARC function (Audio Return Channel (HDMI
1.4 standard function) is connected to this unit via an HDMI connection.
For details, see “About ARC (Audio Return Channel) function” (vpage14) or refer to the instruction
manual for your TV.
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Component video
cable
(Green)
(Blue)
(Red)
Audio cable (sold separately)
Optical cable
*/
7*%&0
"6%*0
015*$"-
065
7*%&0
$0.10/&/57*%&0
:1
# 13
*/
TV
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage69)
in Set as Necessary
Connecting a Blu-ray Disc player
• You can enjoy video and audio from a Blu-ray Disc.
• Select the connector to use and connect the device.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Audio cables (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
R
L
R
L
7*%&0
"6%*0
"6%*0
3-
065
065
7*%&0
Blu-ray Disc
player
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage69)
in Set as Necessary
For HD audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus and DTS Express) playback, connect with HDMI
(vpage14 “Connecting an HDMI-compatible device”).

Denon AVR-3311 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Optical drive included	No
Display	LED
Equalizer	Yes
HDMI version	1.4a
Product color	Silver
Audio decoders	DTS 96/24, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD
Volume control	Rotary
Multi-Zone quantity	4
Apple docking compatibility	iPod Classic 4, iPod Classic 5, iPod Mini 1, iPod Mini 2, iPod Nano 1, iPod Nano 2
Supported video modes	1080p
HDMI in	6
Audio (L/R) in	9
Composite video in	5
USB ports quantity	1
S-Video inputs quantity	2
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
AM band range	522 - 1611 kHz
FM band range	57.5 - 108 MHz
Composite video out	3
Headphone connectivity	3.5 mm/6.35 mm
Digital audio coaxial out	0
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	381 mm
Width	434 mm
Height	171 mm
Weight	12200 g
