Denon AVR-3311 User Manual

49
ENGLISH
Basic versionSimple version InformationAdvanced version
Here we describe the installation, connection and
setup methods for speakers other than 5.1-channel
speakers. For the installation, connection and setup
methods for 5.1-channel speakers, see “Simple
version (Simple setup guide)” (vpage3).
Procedure for speaker settings
Install
Connect (vpage50)
Set up speakers (vpage52)

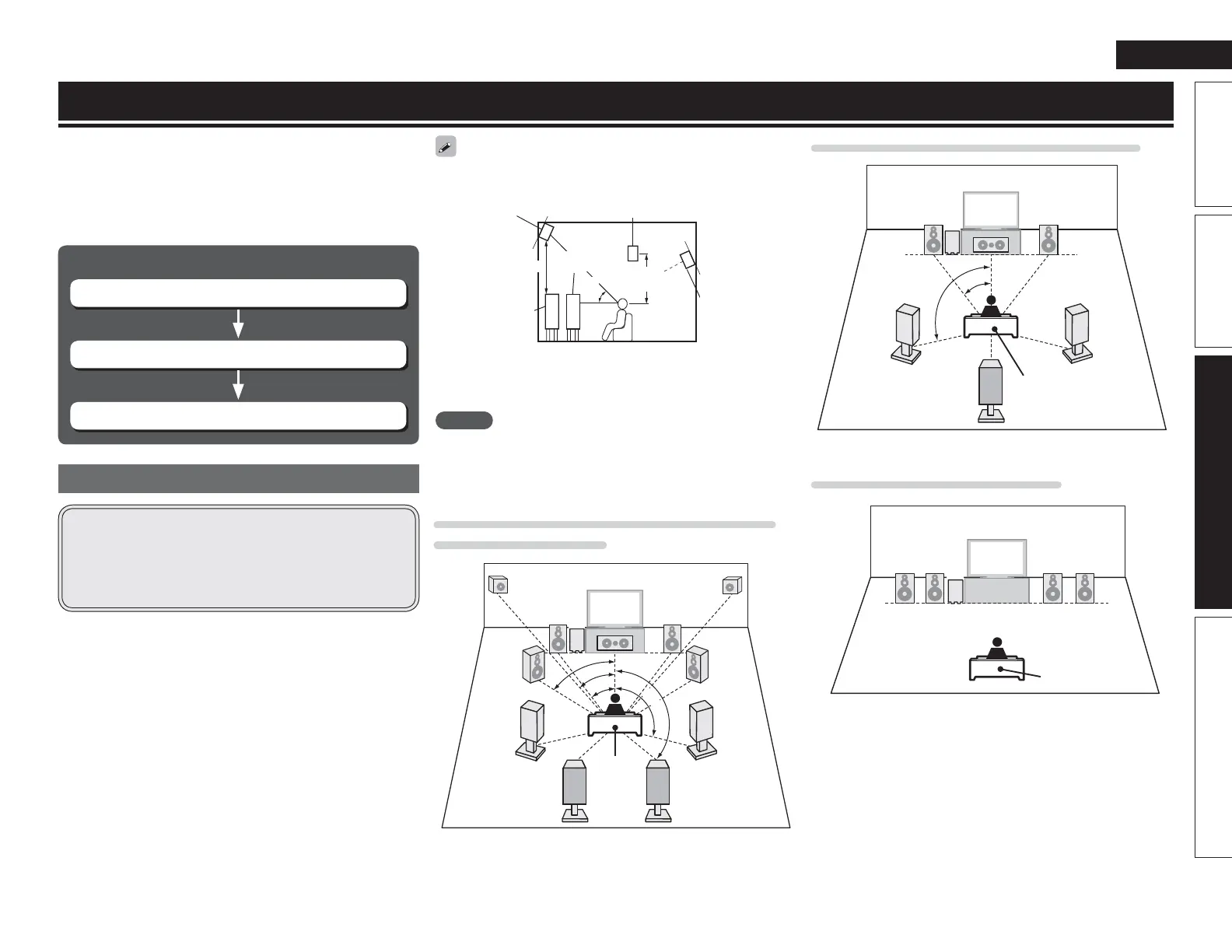

Install
This unit is compatible with Audyssey DSX™ (vpage111) and
Dolby Pro Logic gz (vpage112), which offers an even wider and
deeper surround sensation.
When using Audyssey DSX, install front wide speakers or front
height speakers.
When using Dolby Pro Logic gz, install front height speakers.
Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
z1
z2
45˚
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
Front wide
speaker
z1 Recommended for Dolby Pro Logic gz
z2 Recommended for Audussey DSX
NOTE
Sound is not output simultaneously from the surround back speakers,
front height speakers, and front wide speakers. You can switch
between speakers by changing the settings in surround mode or
Audyssey DSX.
When 7.1ch (Surround back / Front height / Front
wide speaker) installed
FHRFHL
FL
FR
SL
SR
FWL
FWR
SW
C
SBL SBR
z1
z2
z3
z5
z4
Listening
position
z1 22˚ – 30˚ z2 22˚ – 45˚ z3 55˚ – 60˚
z4 90˚ – 110˚ z5 135˚ – 150˚
When 6.1ch (Surround back speaker) installed
FL FR
C
SB
SL
SR
SW
z1
z2
Listening position
z1 22˚ – 30˚ z2 90˚ – 110˚
When Front A/B speakers installed
FR(A) FR(B)
SW
FL(B) FL(A)
Listening position
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker FHL Front height speaker (L)
SW Subwoofer FHR Front height speaker (R)
SL Surround speaker (L) FWL Front wide speaker (L)
SR Surround speaker (R) FWR Front wide speaker (R)
SB Surround back speaker
Speaker installation/connection (Other than 5.1-channel)

Denon AVR-3311 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Optical drive included	No
Display	LED
Equalizer	Yes
HDMI version	1.4a
Product color	Silver
Audio decoders	DTS 96/24, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD
Volume control	Rotary
Multi-Zone quantity	4
Apple docking compatibility	iPod Classic 4, iPod Classic 5, iPod Mini 1, iPod Mini 2, iPod Nano 1, iPod Nano 2
Supported video modes	1080p
HDMI in	6
Audio (L/R) in	9
Composite video in	5
USB ports quantity	1
S-Video inputs quantity	2
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
AM band range	522 - 1611 kHz
FM band range	57.5 - 108 MHz
Composite video out	3
Headphone connectivity	3.5 mm/6.35 mm
Digital audio coaxial out	0
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	381 mm
Width	434 mm
Height	171 mm
Weight	12200 g
