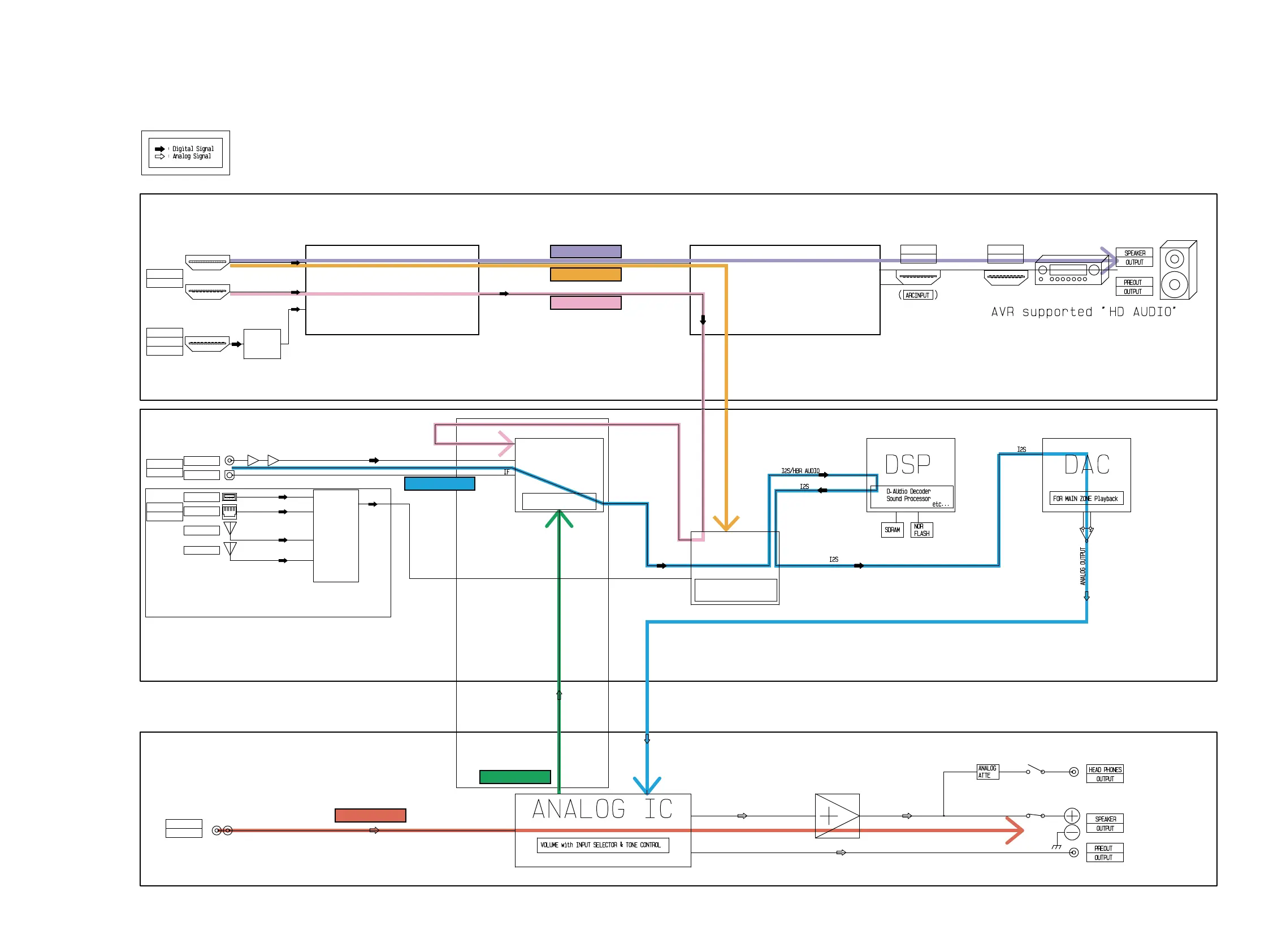

Denon AVR-X3200W Service Manual

Refer to troubleshooting
"4.1. AUDIO CHECK"
(95 page).
AUDIO CHECK PASS
HDMI Tranceiver
MN864787
HDMI Tranceiver
MN864788
CS49844A
Analog audio BLOCK
NETWORK BLOCK
Digital audio BLOCK
HDMI BLOCK
CHECK6
CHECK5
CHECK4
CHECK3
CHECK2
CHECK1
TMDS
BUFFER
AD8195
DIGITAL AUDIO
INTERFACE RECEIVER
R2A15220FP & R2A15218FP
5M570ZF256C5N
I2S
SELECTOR
I2S
PCM1690DCAR
PLD
PCM9211PTR
DIR/ADC
INPUT
ANALOG 2CH
INPUT
NETWORK
INPUT
DIGITAL
INPUT
HDMI
INPUT
HDMI
FRONT
ETHERNET
Wifi
USB
OPTICAL
COAXIAL
A/D_INPUT
D/A_OUTPUT
ADC
BLOCK
NETWORK
MODULE
CY920
SPDIF
I2S/DSD
SPDIF(Legacy Audio)
I2S/HBR Audio(LPCM MULTI)
/Dolby TrueHD/DTS-HD MA/DSD
OUTPUT
HDMI
INPUT
HDMI
Wifi/BluetoothCase : CY920
105

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
