Denon AVR-X3200W Service Manual

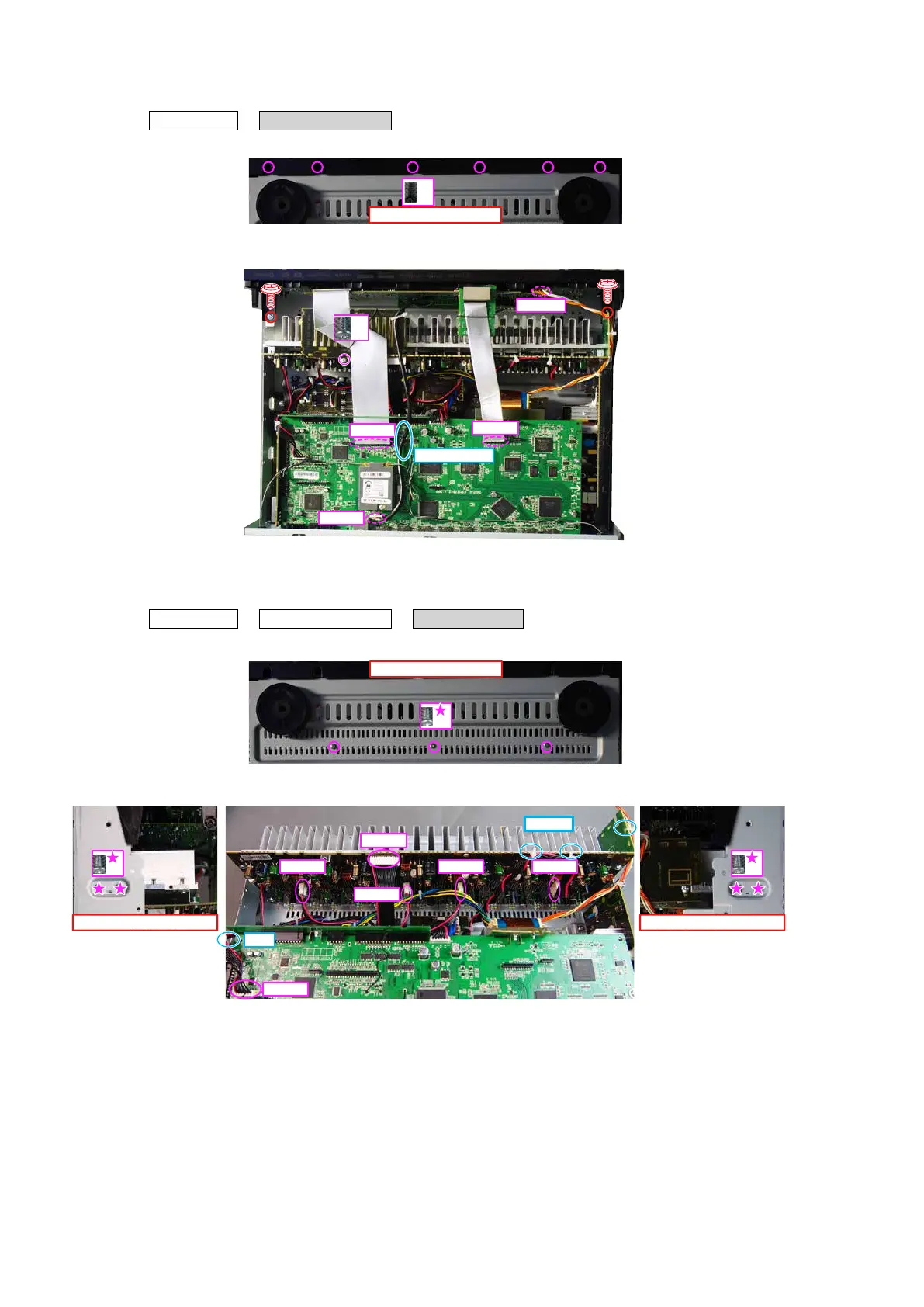

1. FRONT PANEL ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the STYLE PIN and connector wire. Remove the FFC.
2. RADIATOR ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
→
RADIATOR ASSY
(1) Remove the screws.
(2) Cut the wire clamp, then remove the STYLE PIN and connector wire. Remove the screws.
View from the bottom
x6
FFC
FFC
CN321
CN602
x1
STYLE PIN
Shooting direction: A
x3
↑Shooting direction: D↑
↑Shooting direction: C↑
x2 x2
CN461
CN701 CN702 CN704
CN703
CN704
CUTx3
CUT
14

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
