Denon AVR-X3200W Service Manual

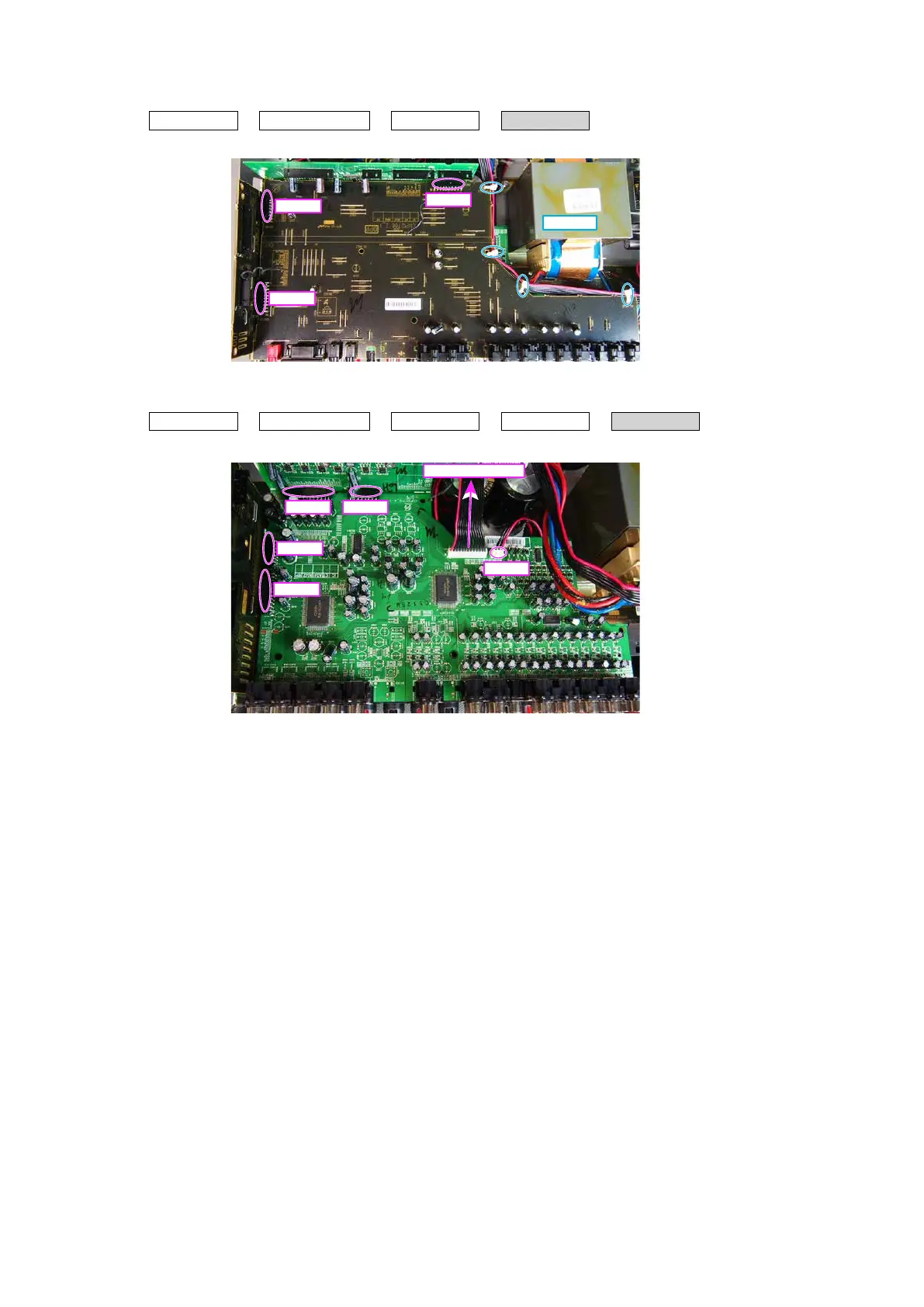

4. VIDEO PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
VIDEO PCB
(1) Cut the wire clamp, then remove the connector.
5. INPUT PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
VIDEO PCB
→
INPUT PCB
(1) Remove the connector.
BN21B
BN28B
BN27B
CUT x4
BN26CBN24C
BN64C
BN23C
CN706
From AMP PCB
16

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
