Denon AVR-X3200W Service Manual

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1 set
8U-110136S : EXTENSION UNIT KIT : 1 set
Insulation sheet (Not supplied) : 3 sheets
Ground lead (Not supplied) : 3 pcs
-Procedures-

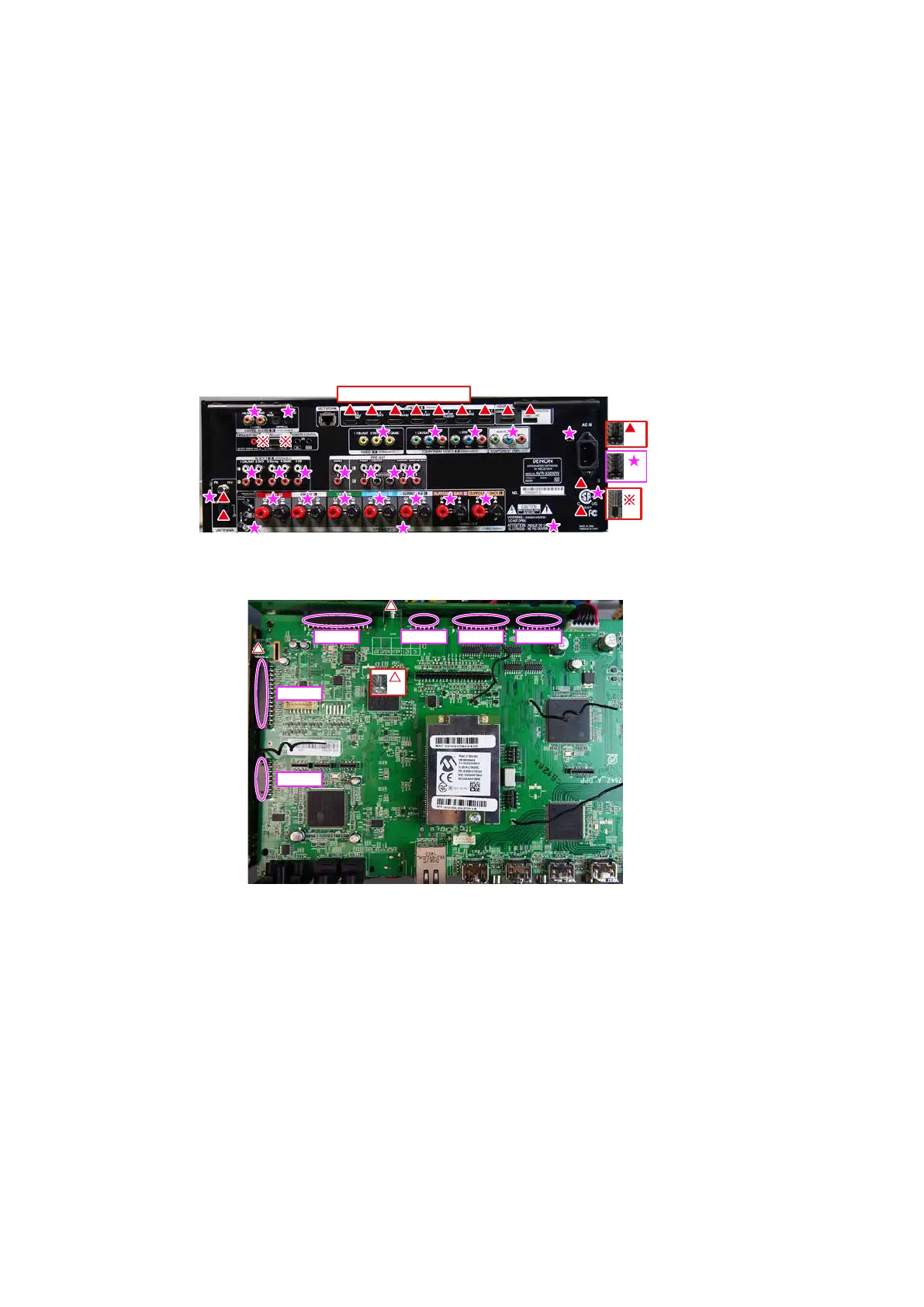

(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x13
x26
x2
x2
BN24A BN26A BN25A BN21A
BN23A
BN27A
64

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
