Denon AVR-X3200W Service Manual

SCHEMATIC DIAGRAMS (05/33)

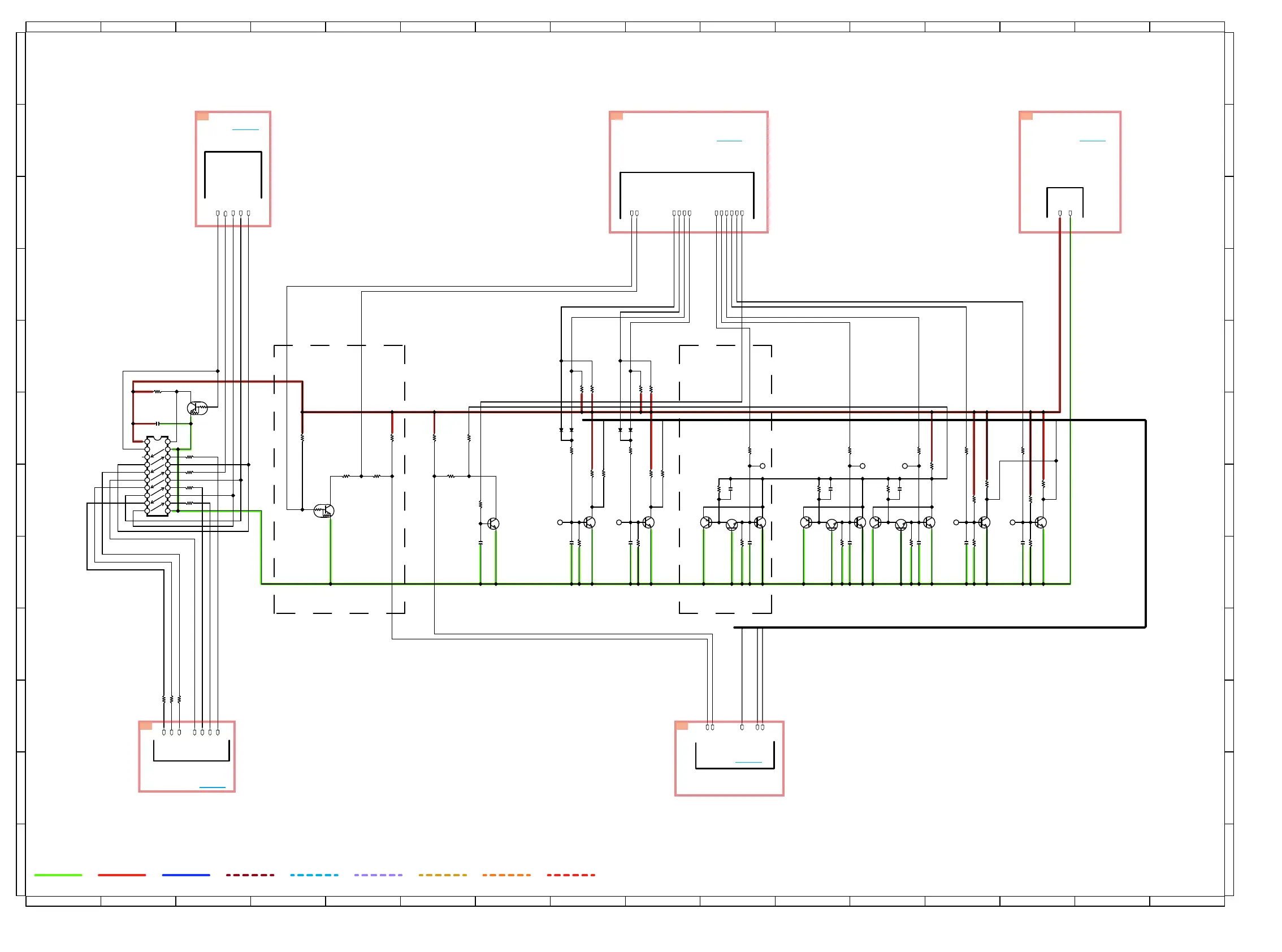

SCH05_CPU LEVEL CHG
ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL ANALOG VIDEO GND LINE POWER- LINE POWER+ LINE DIGITAL VIDEO STBY POWER
TO MAIN CPU
TO DIGITAL SUPPLY POWER
TO DIGITAL CONNECT
OPEN
(PAGE 1_A4)
(PAGE 2_B1)
(PAGE 3_D5)
DC_DET/ASO
DETECT PARTS
MIC/HP
OE1
OE2
FROM MAIN CPU
TO AUDIO PLD
(PAGE 7_D1)
(PAGE 3_D5)
R1939
22K
R1941
OPEN
C1912
0.01
R1938
470K
R1937
100
R1936
15K
C1911
0.01
R1931
100K
C1908
0.01
R1944
22K
R1946
OPEN
C1913
0.01
R1943
470K
R1942
100
R1935
100K
C1910
0.01
R1932
33K
C1909
0.01
R1934
22K
T185
T186
T187
T188
Q1909
ISA1530AC1
Q1910
2SC3052
Q1911
2SC3052
Q1913
2SC3052
Q1912
ISA1530AC1
Q1914
2SC3052
Q1915
2SC3052
Q1916
2SC3052
R1933
100
R1930
100
R1906
22K
C1902
0.01
R1905
100
R1907
0
T246
Q1902
2SC3052
R1911
22K
C190
3
0.01
R1910
100
R1912
0
T247
Q1903
2SC3052
R1909
OPEN
R1914
OPEN
R1928
100K
C1906
0.01
R1929
8.2K
C1907
0.01
T206
Q1906
ISA1530AC1
Q1907
2SC3052
Q1908
2SC3052
R1927
100
R1908
10K
R1913
10K
R1951
OPEN
R1952
OPEN
D1904
KDS160
D1903
OPEN
D1902
KDS160
D1901
OPEN
C1916
0.01
R1969
100
Q1922
2SC3052
R1967
3.3K
R1966
10K
R1961
4.7K
R1963
3.9K
R1964
3.3K
R1965
10K
Q1920
RT1N141C
R1968
3.9K
13 14 2019181716151211
10 9 8 7 6 5 4 3 2 1
IC191
SN74LVC244APWR
C1915 0.1
R1960
33
R1959
33
R1958
33
R1953
4.7K
R1955
100
R1954
100
R1956
100
R1957
100
Q1918
RT1N141C
SWM3.3V DGND DCDET2 DCDET1 ASODET
THERMA LDETB
THERMA LDETA
PROTE CT
DCDET3
THER_P RO
TA
THERMA LDETF(7C H)
THERMA LDETE(7 CH)
THERMA LDETE(2 CH) THERMA LDETF(2C H)
THER_P ROTE
THER_P ROTF
DCDET3 DCDET2 DCDET1 THERMA LDETB
THERMA LDETA
H/PDET
MICDET
HP/MIC _DET
DC/ASO _PROT
THER_P ROTA
THER_P ROTE
THER_P ROTE
THER_P ROTF
THER_P ROTF
THER_P ROTA
APLD_C S
APLD_DI
APLD_C K
PLD_WRI TE
JTAG _TDO
JTAG _TMS/ APLD_CS
JTAG _TDI/A PLD_DAT A
JTAG _TCK /APLD_C LK
JTAG _TDI
JTAG _TMS
JTAG _TCK
JTAG _TDOO
7A
TO A7
8B
TO B8
7C
TO C7
E4
TO 4E
9H
TO H9
130
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
M
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
