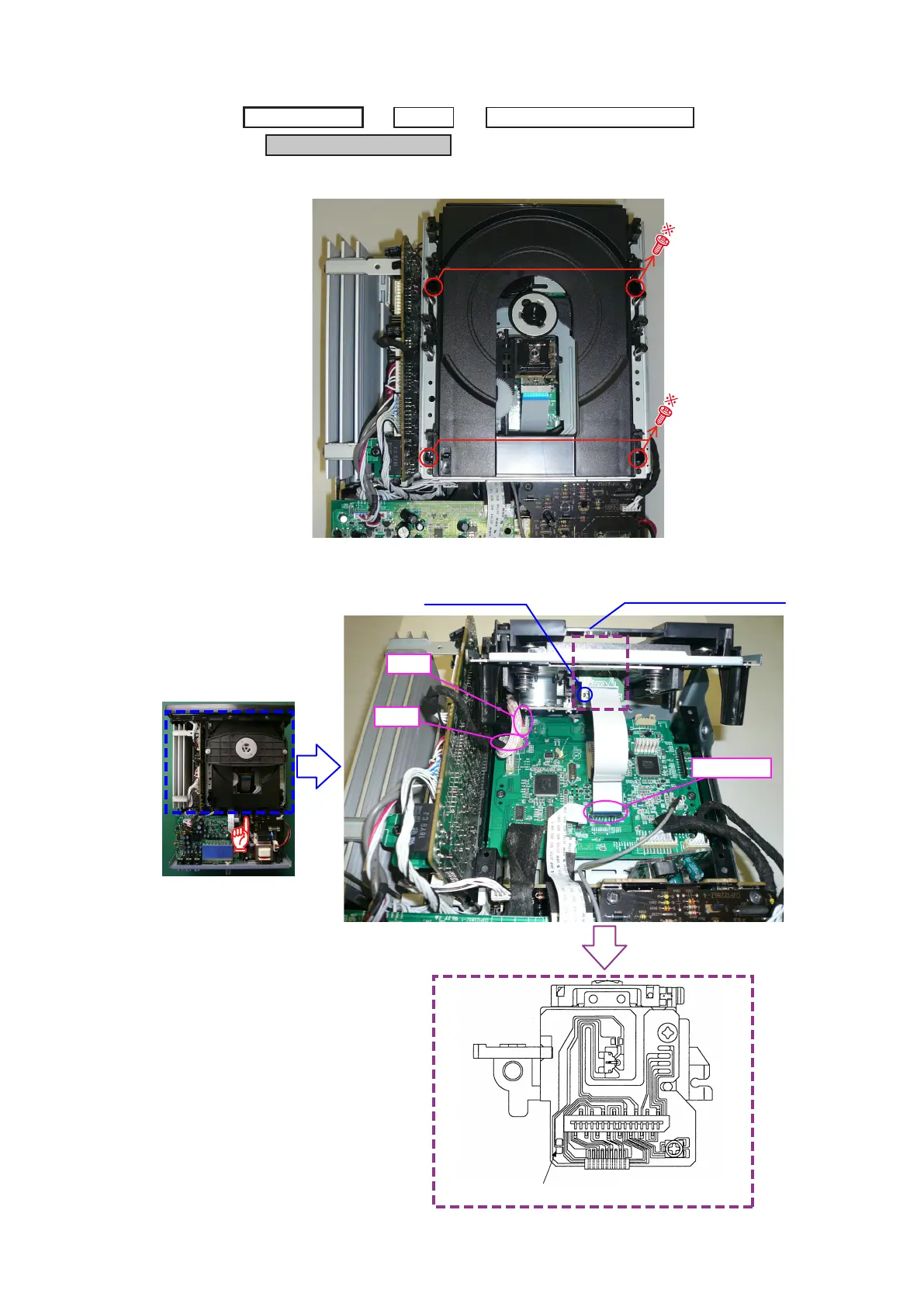

3.
CD MECHA
(1)
Removethescrews.
(2)
Lasershort-circuitinPick-upofCDMECHANISM
ASS'Y
,thendisconnecttheconnectorwiresandFFCcable.
Proceeding :
TOP CABINET
DOOR
→
FRONT PANEL SUB ASSY
→
CD MECHANISM ASS'Y
→
CD MECHANISM
ASS'Y
CN26
CN25
Protective soldering place for laser diode.
Soldering place
Direction of photograph: B
FFC cable
10
12
Table of Contents
Safety Precautions
2
Note for Schematic Diagram
3
Note for Parts List
3
Warning and Laser Safety Instructions
4
System Configuration
5
Specifications
5
Caution in Servicing
6
Initializing STEREO CD RECEIVER
6
Service Tools
6
Service Jigs
6
CD Mechanism Ass'y
11
Heat Sink Sub Assy
13
Note Handling and Replacement of the Laser Pick-Up
17
Precautions When Handling the Laser CD Mechanism
17
Cautions on Assembling and Adjustment
17
Determining Whether the Laser Pick-Up Is Defective
17
Service Mode
18
Cold Start Mode (Initialization)
18
Disc Loading
19
CD Test Mode
19
Error Display
23
Accumulated Laser on Time Display Mode
24
Version Upgrade Procedure of Firmware
25
Necessary Equipment
26
Troubleshooting
38
VFD Dosen't Light
38
No Sound,Noise Generated
39
Measuring Method and Waveforms
44
Mcu CD Pcb : Test Point
44
Input Pcb : Test Point
45
Focus Adjustment
47
Block Diagram
49
Current Block Diagram
50
Laevel Diagram
51
Wiring Diagram
52
Printed Wiring Boards
53
Schematic Diagrams
57
Parts List of Exploded View
61
Exploded View of CD Mechanism Unit
62
Packing View
63
Parts List of Packing & Accessories
63
Fcc Label
64
Speaker Assy
64
Pin Descriptions
74
Pin Connections
78
Order Information
78
Pin Connection
82
Parts List of P.C.b. Unit
85
Input Pcb Ass'y
89
Main Pcb Ass'y
91
