Denon RCD-M38 Service Manual

51
DAB UNIT
NJW1153 NJM2068 STK4142
FUNCTION
TUNER
SWITCH
MASTER TONE POWER AMP
PACK DAB VOLUME CONTROL
TUNER Buffer Buffer Buffer MUTE RELAY
CD UNIT Buffer CD/USB SP OUT
AK4385 DAC RELAY
USB HP OUT
Portable In
LINE1（Dock） IN
LINE2 IN
MUTE
LINE2 OUT
SUBWOOFER
OUT
SP OUT
+20dB 30W/6ohm
NJW1153 Max output,4Vrms(+12dB) 13.4V(22.5dB)
+10dB
8dB
0dB CD/USB 1KHz 0dB PB 1.0V SDB+8dB:1.59Vrms/+4dB (+28.6dB) HP OUT
DAB 1KHz 0dB 0.6V TONE+10dB:0.63Vrms/-4.0dB 1.0V/32ohm
-10dB
LINE IN 200mV '(+10dB)
-20dB FM 30%MOD 213mV
-30dB
-40dB
S/N:96dBtyp
-50dB
-60dB
Output Noise Level -110dBv typ

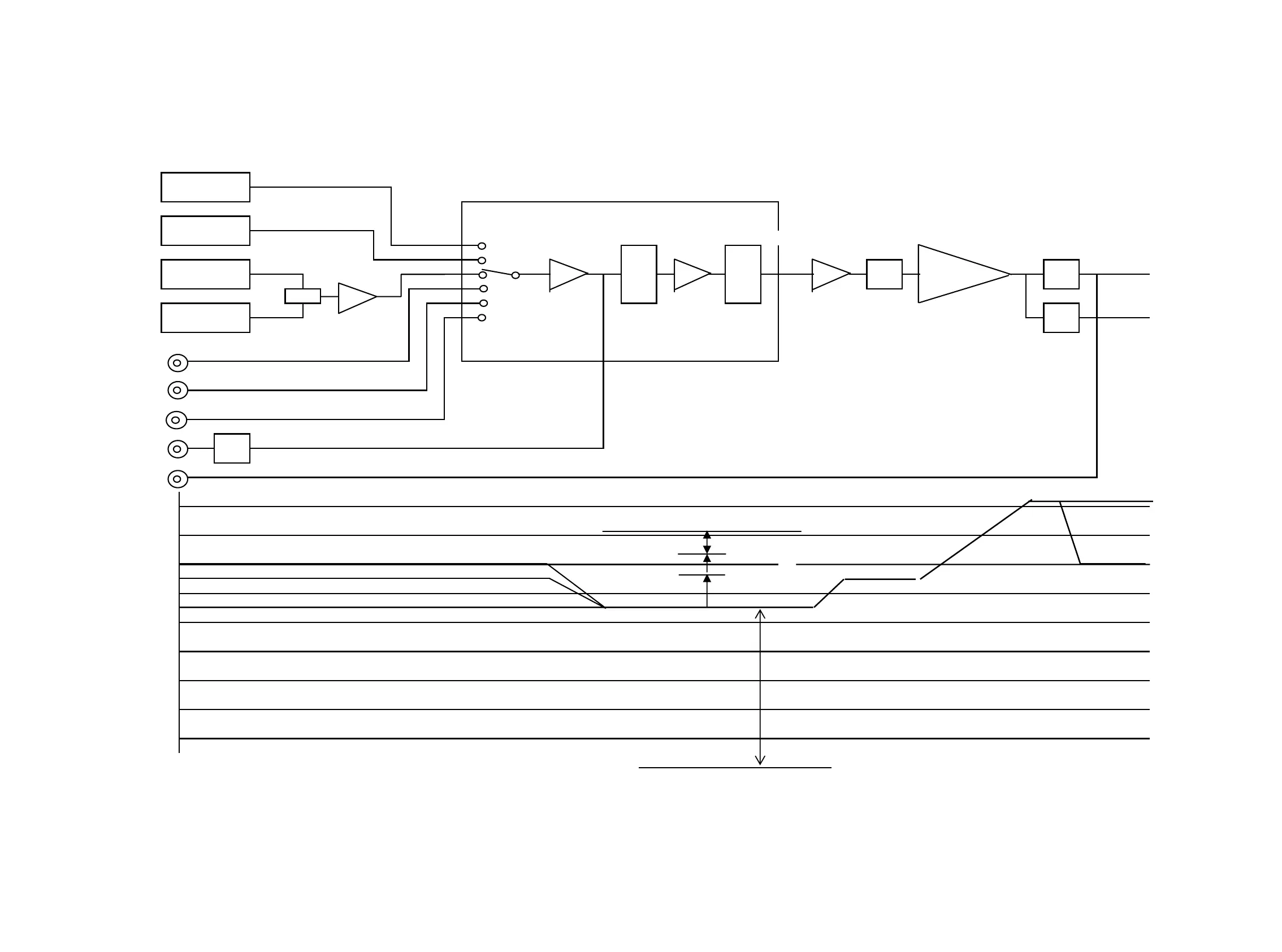

LAEVEL DIAGRAM
