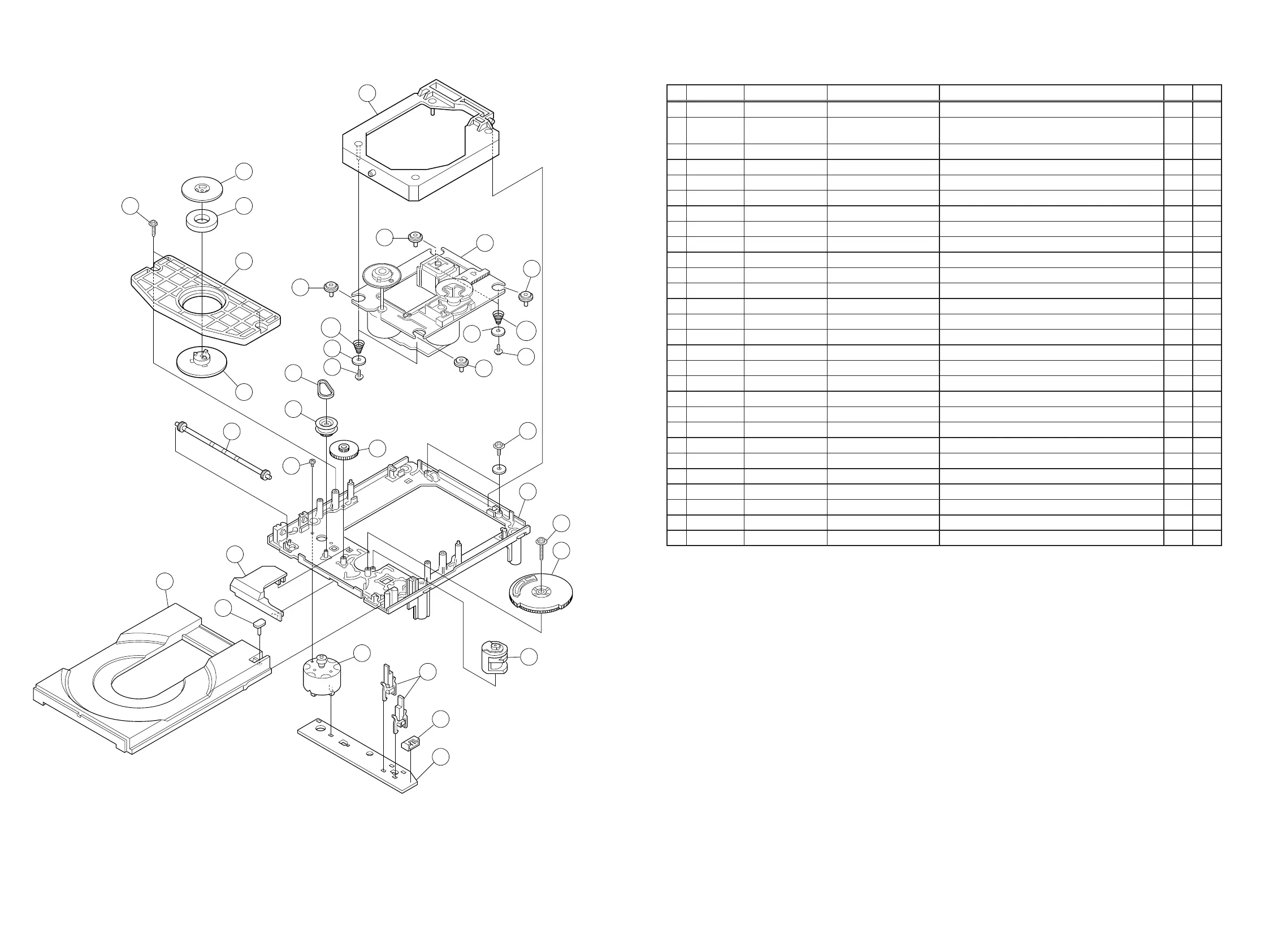

EXPLODED VIEW OF CD MECHANISM UNIT
11
13
12-2
14
30
30
30
6
7
8
5
10
4
1
2
3
24
21
22
23
20
19
18
17
6
25
28
26
27
13
14
12-1
30
9
PARTS LIST OF CD MECHANISM UNIT
s
z Parts for which "nsp" is indicated on this table cannot be supplied.
z The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Ref. No. Part No. Part Name Remarks Q'ty New
1 00DS264629001 Tray (C) 1
2 - -
This part (No.2)doesn't belong to the tray. Take it down
from old tray and use again when changing the tray.
3 nsp Gear cover(S) 1
4 nsp Tray gear(S) 1
5 nsp Chucking plate 1
6 nsp Screw 2.6 x 7 +PTPWH 4
7 nsp Chucking yoke 1
8 nsp Magnet 1
9 941302002350M MECHA DA11T3CN 1
10 nsp Chucking pulley 1
11 nsp Sub chassis Ass'y 1
12-1 nsp Coil spring(front) 2
12-2 nsp Coil spring(back) 2
13 nsp Screw 2.6 x 10 +P No slit type2 4
14 nsp Washer 2130 4
17 nsp Outsert main chassis(S) 1
18 nsp Screw 2.6 x 16 +PTPWH 1
19 nsp Drive gear(S) 1
20 nsp Contorol cam(S) 1
21 nsp Leaf switch 2
22 nsp 5P connector 1
23 nsp Loading P.W.B 1
24 nsp Loading motor Ass'Y 1
25 nsp Middle gear 1
26 nsp Loading pulley 1
27 nsp LM belt 1
28 nsp Screw 2.6 x 2.5 +B 1
30 nsp Insulator 4
62
