Denon RCD-M38 Service Manual

5
SYSTEM CONFIGURATION
SPECIFICATIONS
• RCD-M38
• RCD-M38DAB
• D-M38S(RCD-M38/SC-M37)
SC-M37 : Refer to the service manual of SC-M37.

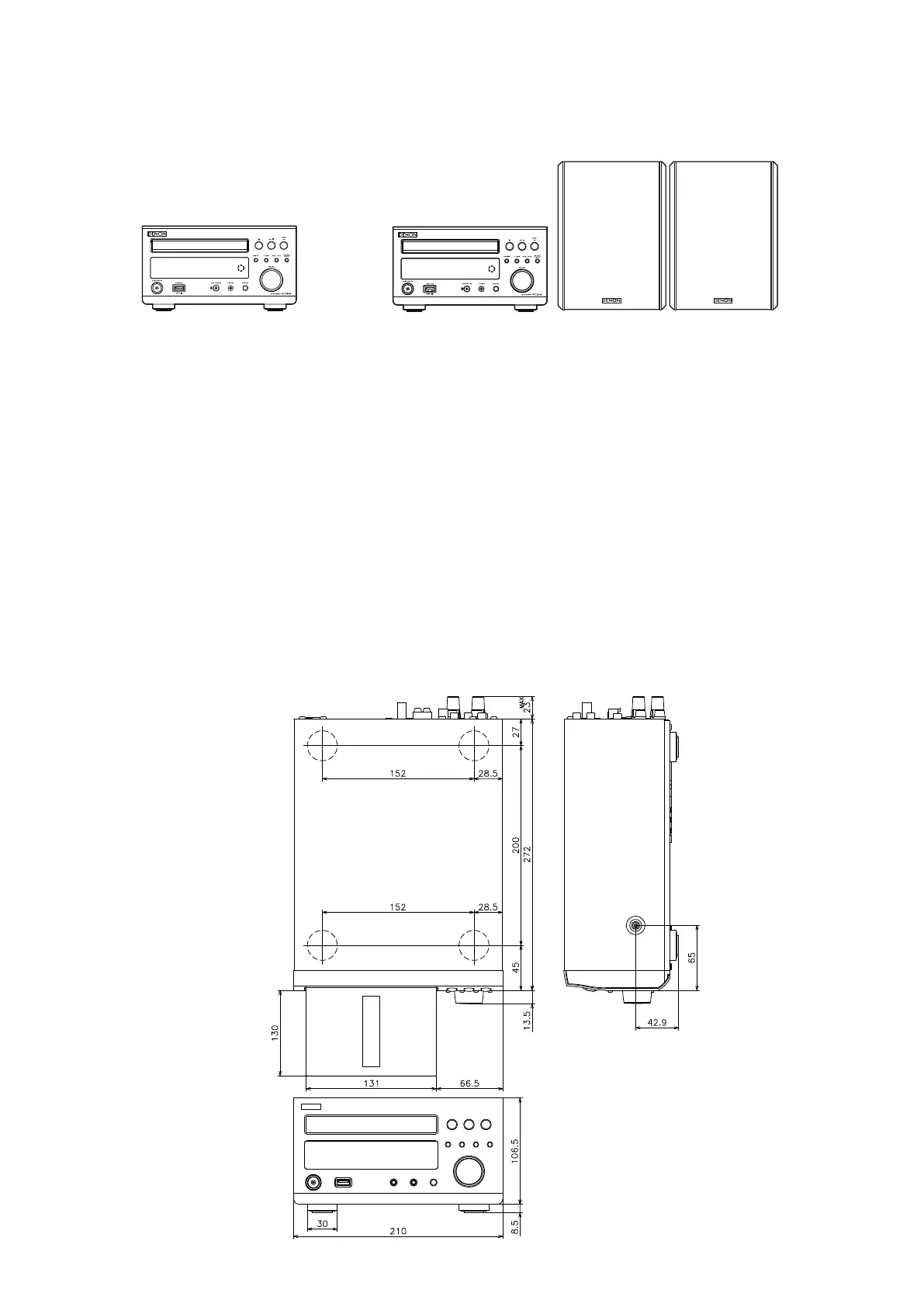

DIMENSION
n Audio section
Power amplifer
Rated output:
30 W + 30 W (6 Ω, 1 kHz T.H.D 10 %)
n Tuner section
Receiving range (E2,EK model):
FM: 87.50 MHz – 108.00 MHz AM: 522 kHz – 1611 kHz
DAB (EK model): BAND3 170 MHz – 240 MHz
Receiving range (E3 model):
FM: 87.50 MHz – 107.9 MHz AM: 520 kHz – 1710 kHz
Usable sensitivity:
FM: 1.5 μV/75 Ω AM：20μV
DAB (EK model): –93 dBm
FM stereo separation: 35dB（1kHz）
n CDsection
Playback frequency response: 2Hz～20kHz
Wow & flutter: Below measurable limits (± 0.001%)
Sampling frequency: 44.1kHz
RCD-M38 SC-M37
n Clock/Timersection
Clock method: Crystal oscillator (Within 1 – 2 minutes per month)）
Timer: Everyday/Once timer: One each
 Sleep timer: 90 minutes, maximum
n General
Power supply (E2,EK model): AC 230 V, 50 Hz
Power supply (E3 model): AC 120 V, 60 Hz
Power consumption: 80 W

Approx. 0.3 W (standby)
Maximum external dimensions:
210 (W) x 115 (H) x 308.5 (D) mm
Weight: 4.3kg
n Remotecontrol(RC-1127)
Power supply: R03/AAA Type (two batteries)
Maximum external dimensions:
49 (W) x 220 (H) x 24 (D) mm
Weight: 110 g (including batteries)
