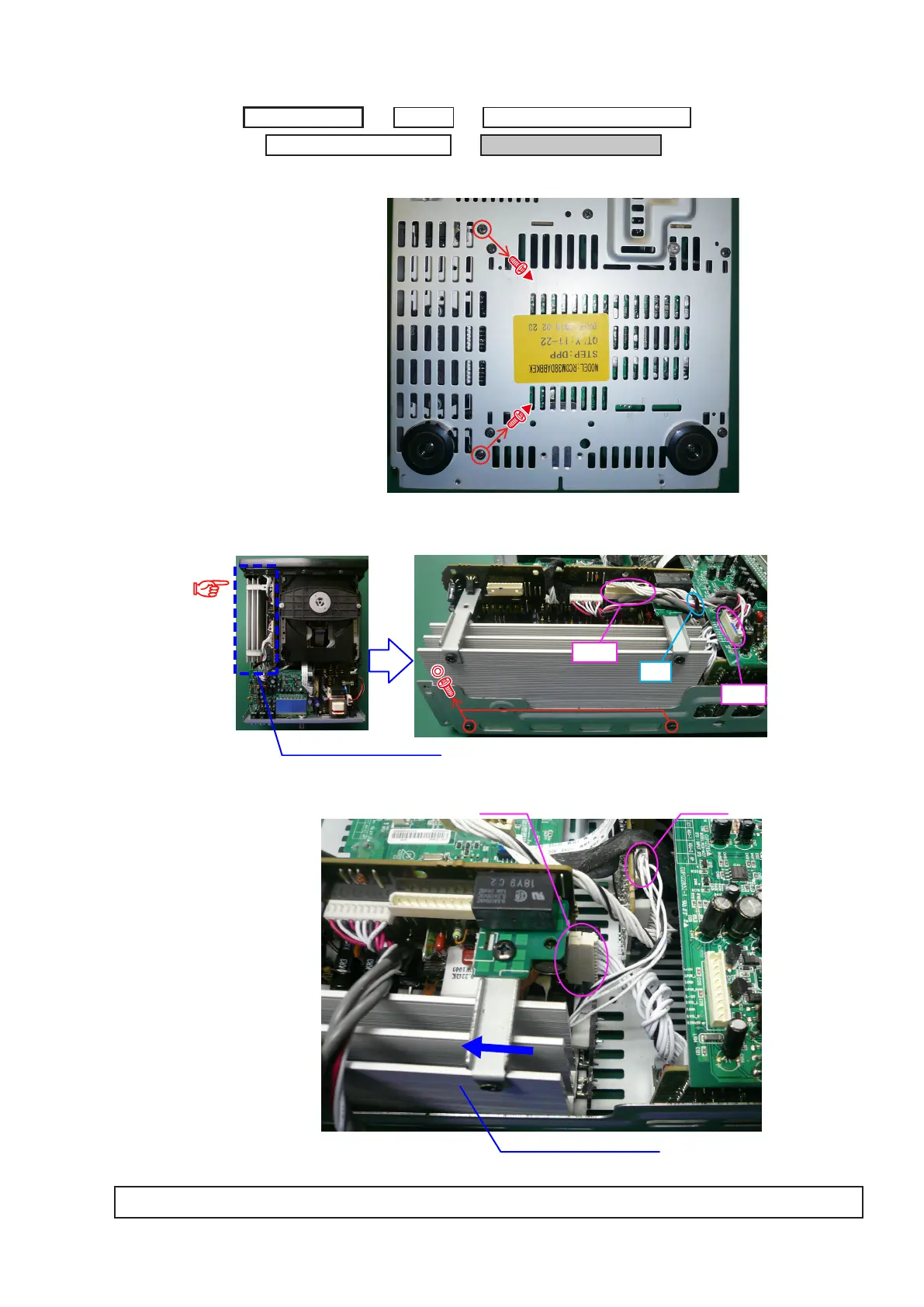

5. HEAT SINK SUB ASSY
(1) Removethescrews.
(2) Cutthewireclampband,thendisconnecttheconnectorwires.Removethescrews.
(3) Disconnecttheconnectorwires.
Proceeding : TOP CABINET
DOOR
→
FRONT PANEL SUB ASSY
→
CD MECHANISM ASS'Y
→
HEAT SINK SUB ASSY
→
View from bottom
Direction of photograph: B
cut
CN72
CN95
HEAT SINK SUB ASSY
Direction of photograph: C
HEAT SINK SUB ASSY
CN73CN97
Direction of photograph: C
Pleasereferto"EXPLODEDVIEW"forthedisassemblymethodofeachPCBincludedinHEATSINKSUBASSY.
