Tool Connect™ Chip (Fig.N)
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.
Your tool is Tool Connect™ Chip ready and has a location for
installation of a Tool Connect™ Chip.
Tool Connect™ Chip is an optional application for your
smart device (such as a smart phone or tablet) that connects
the device to utilize the mobile application for inventory
management functions.
Refer to Tool Connect™ Chip Instruction Sheet for
moreinformation.
Installing the Tool Connect™ Chip
1. Remove the retaining screws
23
that hold the Tool
Connect™ Chip protective cover
24
into thetool.
2. Remove the protective cover and insert the Tool Connect™
Chip into the empty pocket
25
.
3. Ensure that the Tool Connect™ Chip is flush with the
housing. Secure it with the retaining screws and tighten
thescrews.
4. Refer to Tool Connect™ Chip Instruction Sheet for
furtherinstructions.
Max.
[mm]
[mm]
Min.
Rotation
[min.
–1
]
Periphical
speed
[m/s]
Threaded
hole length
[mm]
D b d
d
125 6 22.23 10500 80 –
125 – – 10500 80 –
b
75 30 M14 10500 45 20.0
125 16 M14 10500 80 20.0

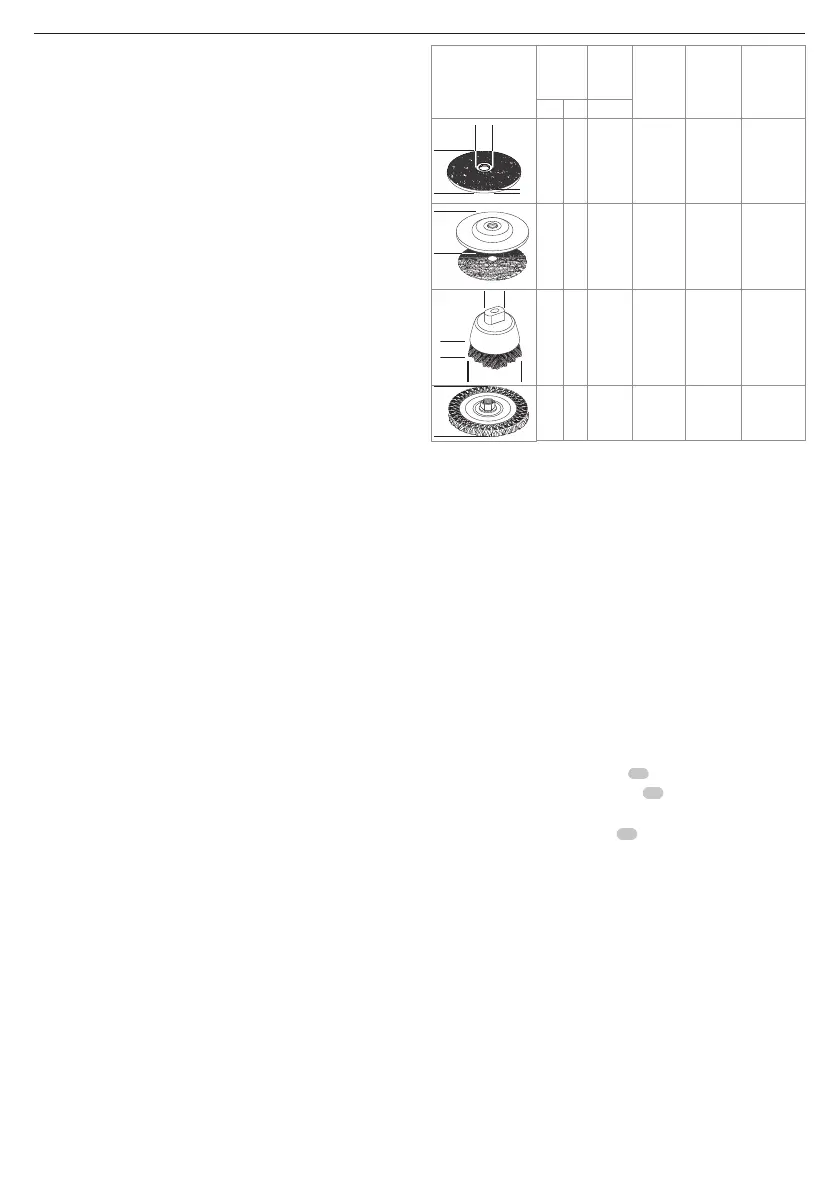

The capacity of this tool is 125mm diameterx6mm (max.)
thickness grinding or cutting wheels. It is important to choose
the correct guards, backing pads and flanges to use with grinder
accessories. See the Accessory and Guard Applications Chart
for information on choosing the correctaccessories.
WARNING: Accessories must be rated for at least
the speed recom mended on the tool warning label.
Wheels and other accessories running over their rated
accessory speed may fly apart and cause injury. Threaded
accessories must have a M14 hub. Every unthreaded
accessory must have a 22mm arbor hole. If it does
not, it may have been designed for a circular saw. Use
only the accessories shown in the Accessory and
Guard Applications Chart of this manual. Accessory
ratings must always be above tool speed as shown on
toolnameplate.
WARNING: Handle and store all abrasive wheels
carefully to prevent damage from thermal shock, heat,
mechanical damage, etc. Store in a dry protected area
free from high humidity, freezing temperatures or extreme
temperaturechanges.
Optional Accessories
WARNING: Since accessories, other than those offered
by DeWALT, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only DeWALT recommended
accessories should be used with thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
D
Cleaning
WARNING: Blow dirt and dust out of the main housing
with dry air as often as dirt is seen collecting in and around
the air vents. Wear approved eye protection and approved
dust mask when performing thisprocedure.
WARNING: Never use solvents or other harsh chemicals
for cleaning the non-metallic parts of the tool. These
chemicals may weaken the materials used in these parts.
Use a cloth dampened only with water and mild soap.
Never let any liquid get inside the tool; never immerse any
part of the tool into aliquid.
C
Lubrication
Your power tool requires no additionallubrication.
