DigitAx User Guide
Issue code: dgxu4
1-1

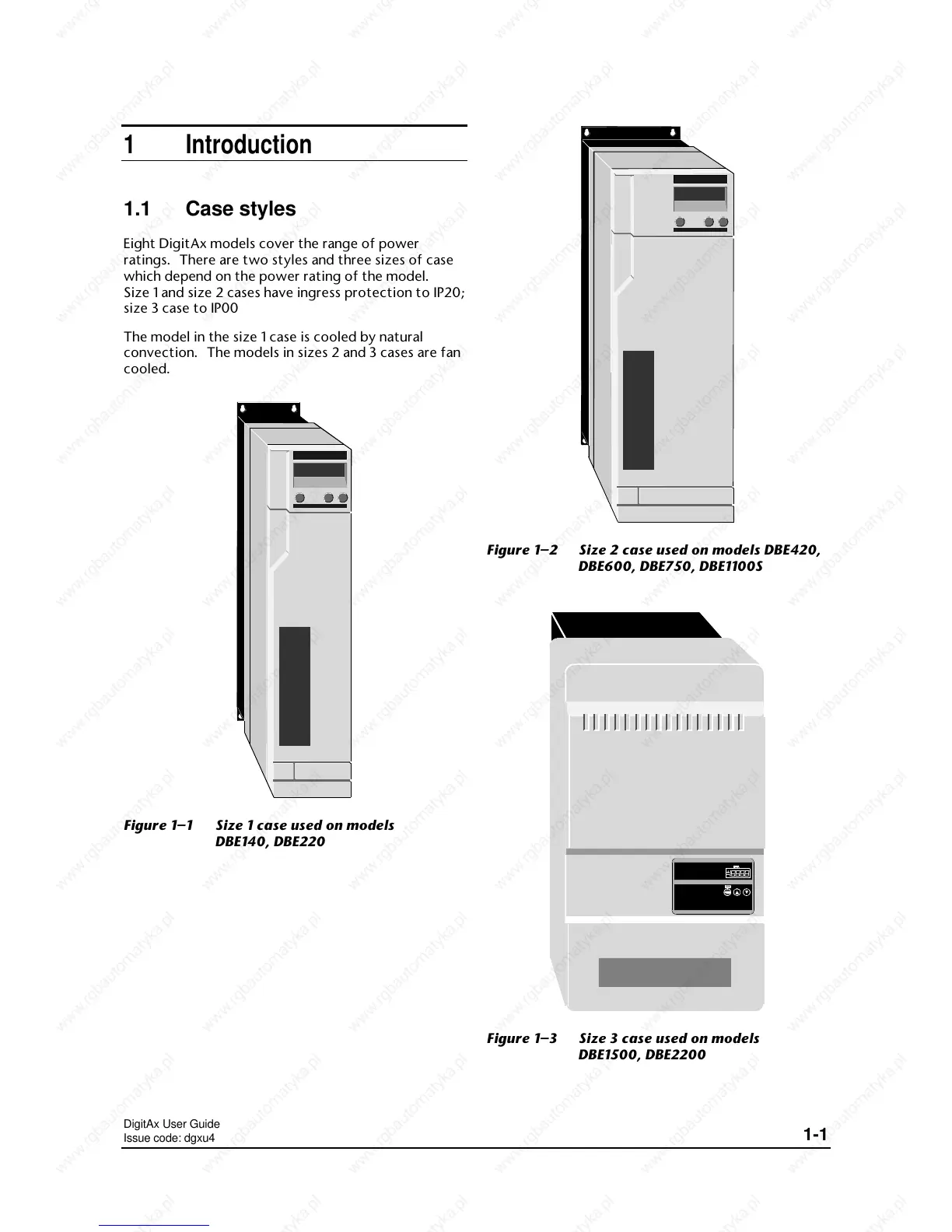

1 Introduction
1.1 Case styles
Eight DigitAx models cover the range of power
ratings. There are two styles and three sizes of case
which depend on the power rating of the model.
Size 1 and size 2 cases have ingress protection to IP20;
size 3 case to IP00
The model in the size 1 case is cooled by natural
convection. The models in sizes 2 and 3 cases are fan
cooled.
Figure 1–1 Size 1 case used on models
DBE140, DBE220
Figure 1–2 Size 2 case used on models DBE420,
DBE600, DBE750, DBE1100S
Figure 1–3 Size 3 case used on models
DBE1500, DBE2200
