D439E Service Manual 2. Engine Mechanical System (D439E)
114

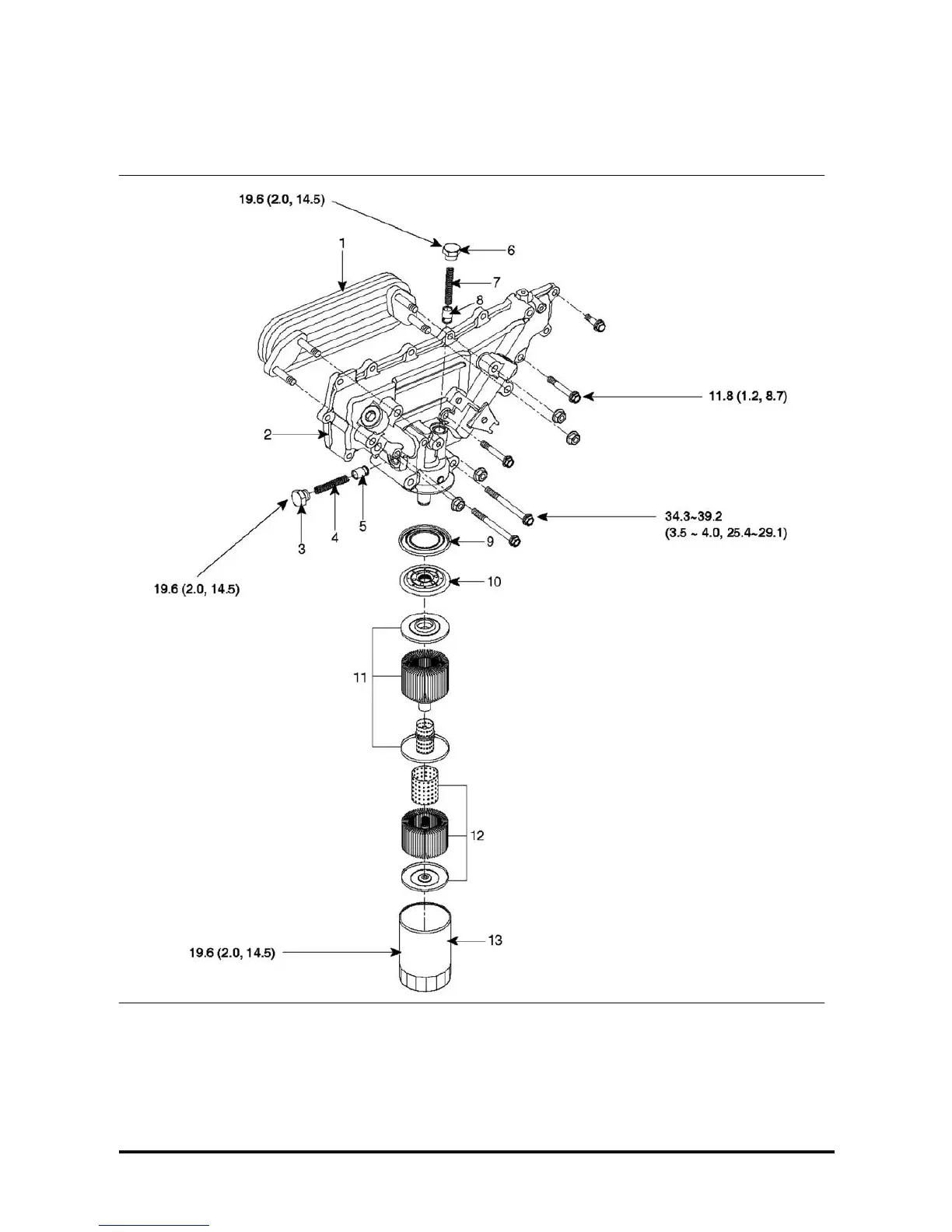

Oil Cooler
Components
1. Oil cooler element 2. Oil cooler body assembly
3. Plug 4. Spring
5. Bypass valve 6. Plug
7. Spring 8. Regulator valve
9. Out packing 10. Seaming cap assembly
11. Bypass element assembly 12. Full flow assembly
13. Housing
Tightening Torque : Nm (kgf.m, lb-ft)
