D439E Service Manual 2. Engine Mechanical System (D439E)
91
Removal

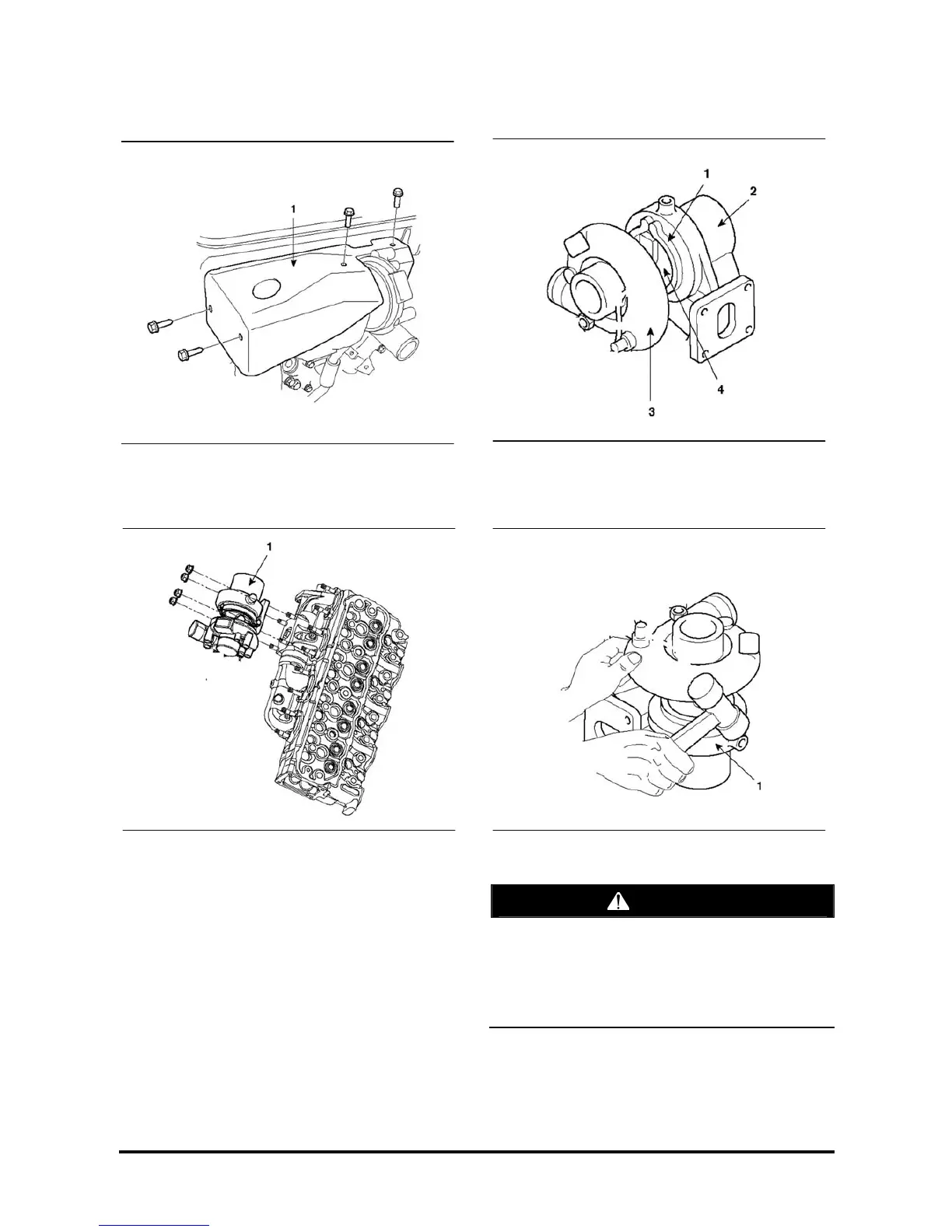

1. Remove the turbocharger heater protector cover
(1).
2. Remove the turbocharger assembly (1).
3. Make an aligning mark on the coupling (1),
turbine housing (2), compressor cover (3), and
cartridge assembly (4).
4. Remove the turbine housing (1).
CAUTION
a. Lightly tap the housing circumference with
rubber hammer so that turbine housing is not
damaged.
b. Since turbine wheel blade is easily bent,
exercise care when removing the housing.
