Doosan D35S-5 Service Manual

D439E Service Manual 2. Engine Mechanical System (D439E)
33
Timing System

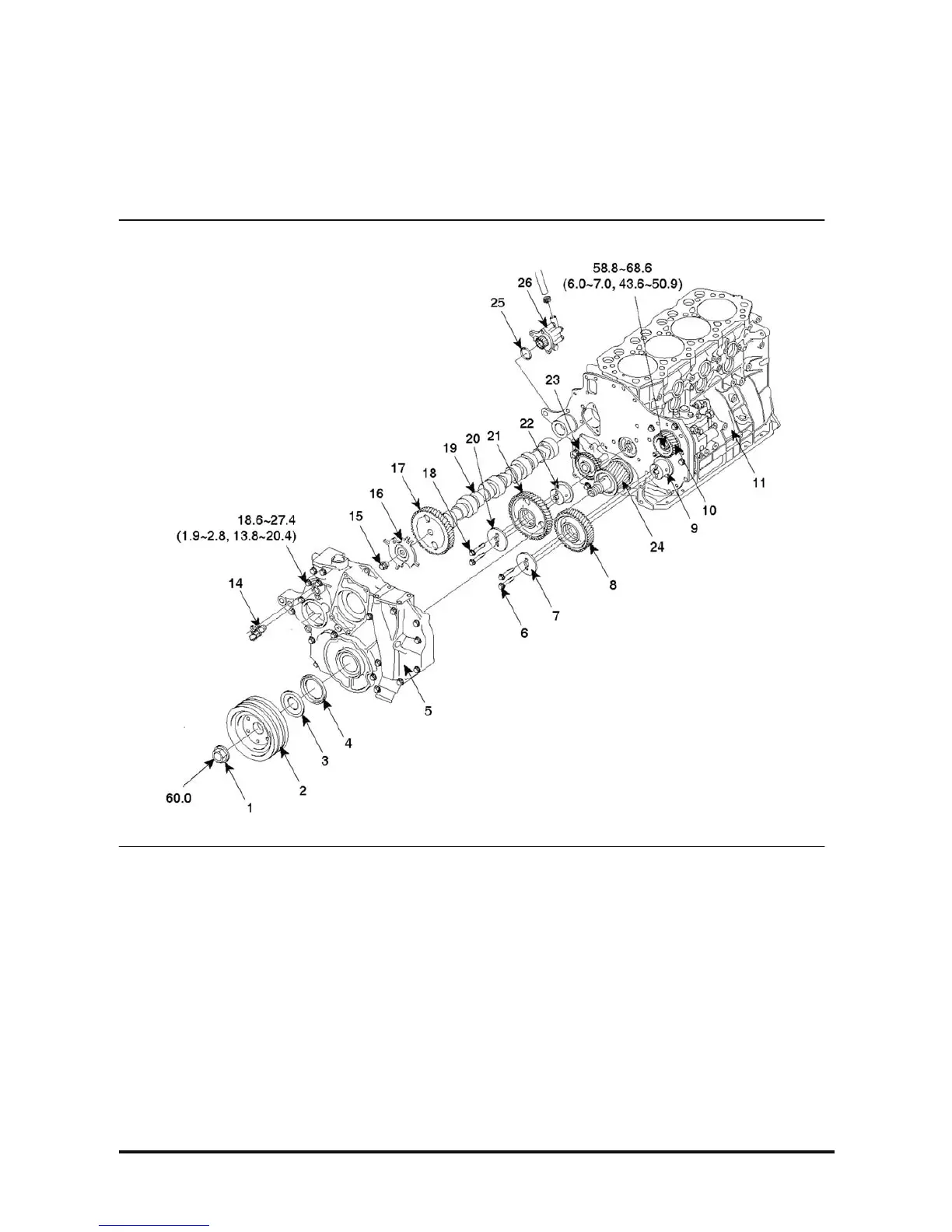

Timing Gear Assembly
Components
1. Crankshaft damper pulley nut
2. Crankshaft damper pulley
3. Front oil slinger
4. Front oil seal
5. Timing gear case
6. Idler gear B mounting bolt
7. Thrust plate
8. Idler gear B
9. Idler shaft
10. Supply pump gear
11. Crankcase
14. Camshaft sensor
15. Oil drain plug
16. Cam sensor plate
17. Camshaft gear
18. Idler gear A mounting bolt
19. Camshaft
20. Thrust plate
21. Idler gear A
22. Idler shaft
23. Oil pump gear
24. Crankshaft gear
25. O-ring
26. Power steering oil pump
Tightening Torque : Nm (kgf.m, Ib-ft)
