D439E Service Manual 5. Service Tool
268
• Change to the Vehicle S/W Management
1. On DTC Analysis screen, select the
or button, then the Function Menu is
shown as <Figure 7>.
2. Select the “Vehicle S/W Management” in the function menu, and then the screen changes to the Vehicle
S/W Management as <Figure 11>.
• Using the stylus pen, select it on the touch screen directly.
• After moving cursor using
buttons, press button.

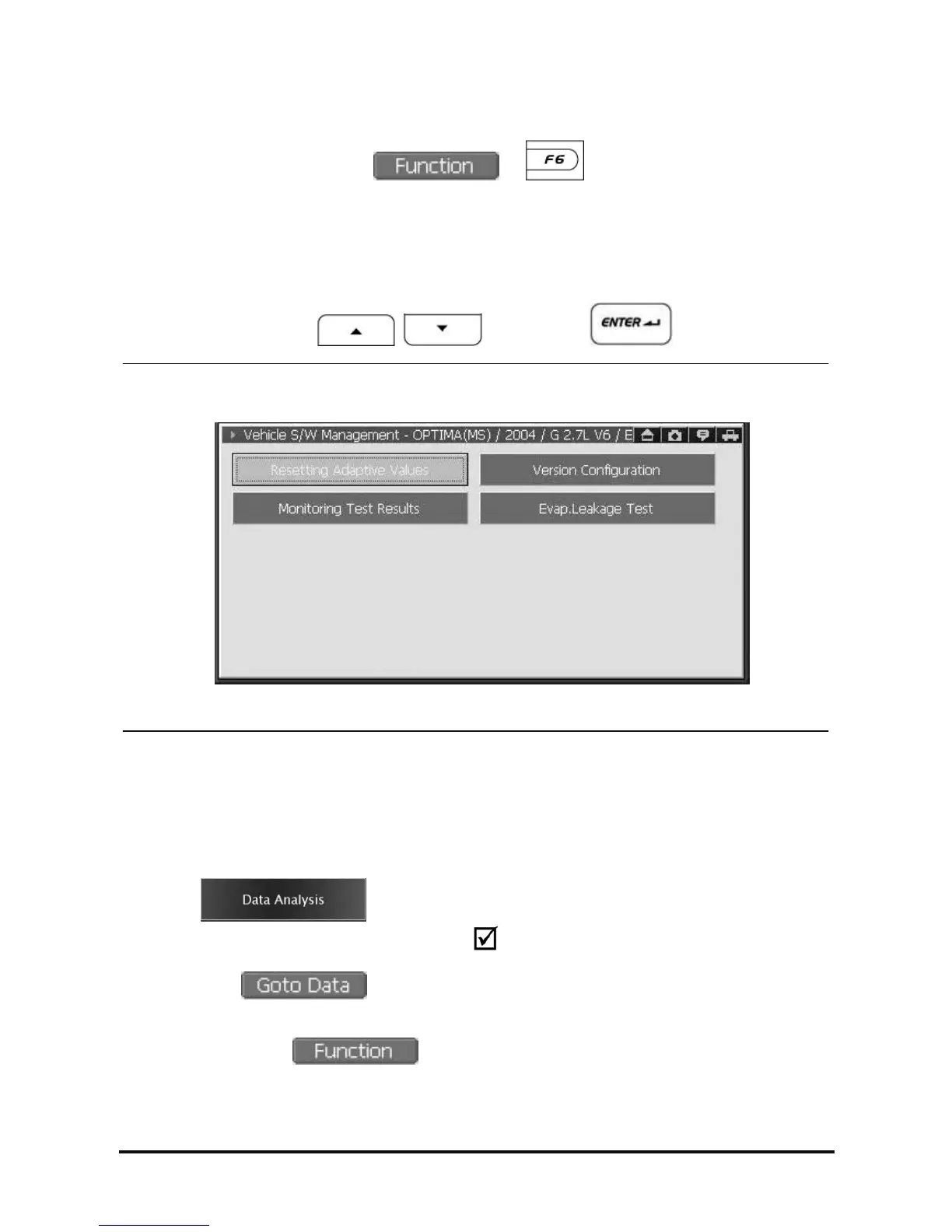

<Figure 11: Vehicle S/W Management>
Data Analysis
To check current data of control module, and you can move to data analysis in 3 different ways.
• Select the
on the main screen.
→Move to Data Analysis of main diagnosis system (
marked in “Selected” zone).
• Select the at the
“Fault Code Searching”
→Move to the Data Analysis of selected DTC.
• On DTC analysis, select
and select current data among the menu.
→The “DTC Analysis” and “Data Analysis” of the control module communicated in the “DTC Analysis” are
shown on dual mode at one time.
To Next Page
