D439E Service Manual 2. Engine Mechanical System (D439E)
71

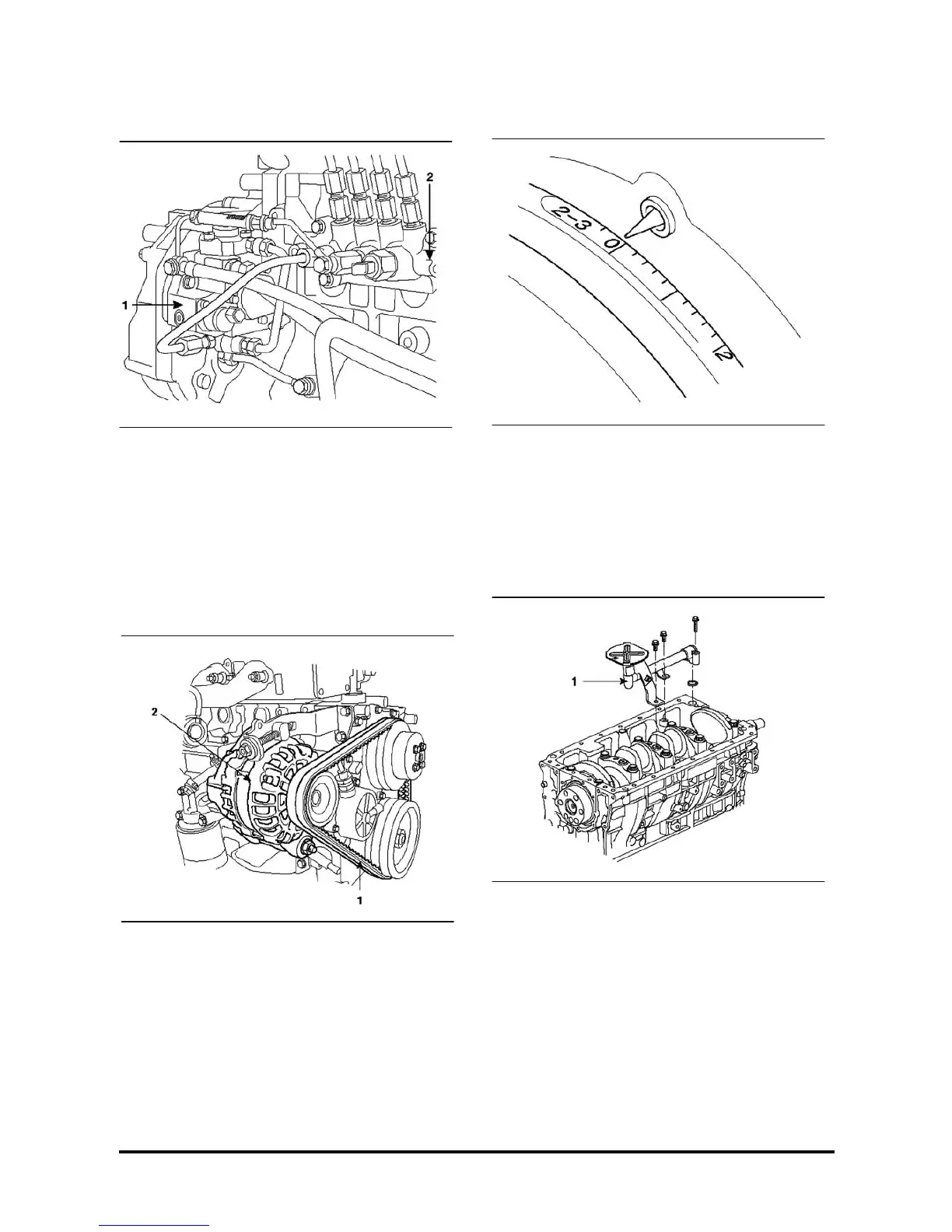

Removal
1. Remove the engine and transaxle.
2. Remove the flywheel and rear plate.
3. Remove the intake and exhaust manifold.
4. Remove the cylinder head assembly.
5. Remove the supply pump (1) and common rail
assembly (2).
6. Remove the V-belt (1) and remove the alternator
assembly (2).
7. Align the timing mark (2 ~ 3 side) of crankshaft
damper pulley to the compression TDC of cylinder
No.1.
NOTE : As for the removal of cooling fan pulley,
crankshaft damper pulley and timing gear case,
refer to the removal procedure of timing system.
8. Remove oil cooler assembly.
