- 152 -
LP Engine G430(3.0L) Base Engine Service Procedure
Camshaft Sprocket and Retainer
Removal and Installation
Removal
Tools Required
• J 791 Camshaft Sprocket Remover

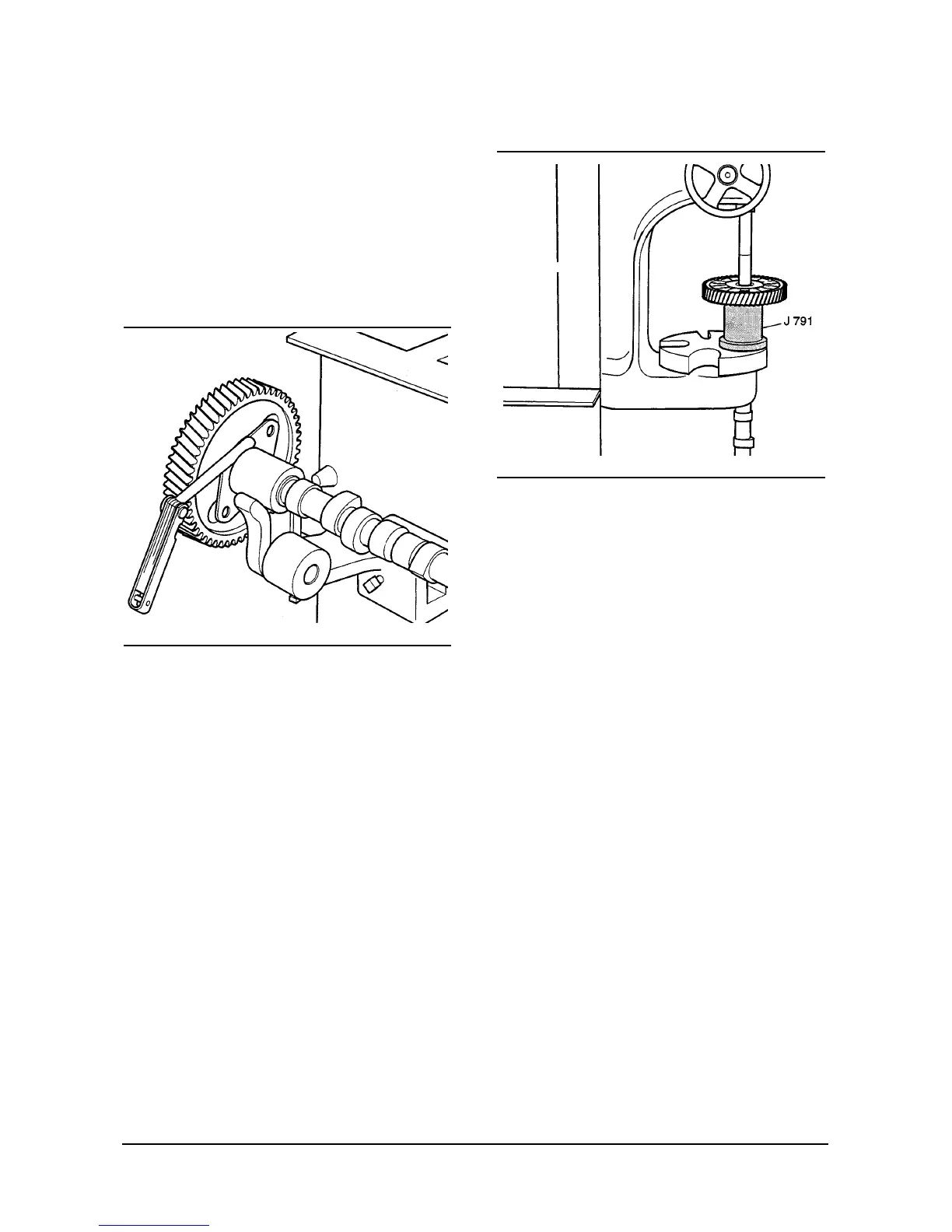

1. If the inspection indicated that the camshaft, gear
and retainer were in good condition, the camshaft
end play should be checked. Refer to Engine
Mechanical Specifications.
2. If the inspection indicated that the camshaft, gear or
retainer should be replaced, the gear must be
removed from the camshaft s follows:
(1) Place the camshaft through the J 791.
(2) Place the end of the remover on the table of a
press and press the camshaft out of the gear.
IMPORTANT : The retainer must be positioned so that
the woodruff key in the camshaft does not damage it
when the camshaft is pressed out of the gear. Also,
support the hub of the gear or the gear will be
seriously damaged.
VE080-3L
VE060-3L
